D-Link xStack Reference Manual page 178

®
xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide

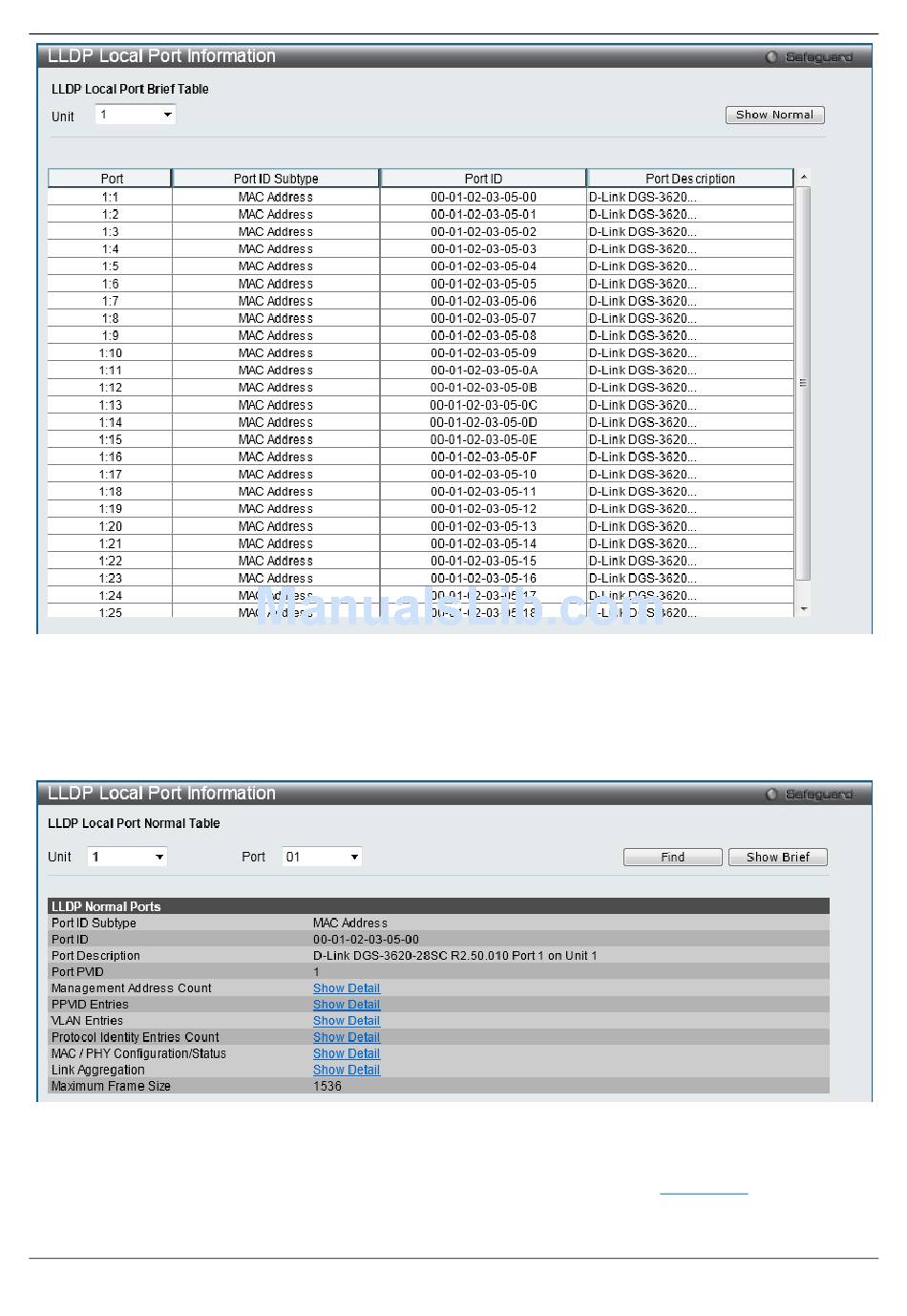

Figure 5-114 LLDP Local Port Information window
Select a Unit number from the drop-down menu to view information for a certain unit.
To view the normal LLDP Local Port information page per port, click the Show Normal button.
To view the brief LLDP Local Port information page per port, click the Show Brief button.
Figure 5-115 LLDP Local Port Information – Show Normal window
Select a Unit and Port number and click the Find button to locate a specific entry.
To view more details about, for example, the Management Address Count, click the Show Detail hyperlink.
177
