D-Link xStack Reference Manual page 240

®
xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Click the View Detail link to under the Attached Router Information to more information.
Click the <<Back button to return to the previous window.
Click the View Detail link under Attached Router Information, the following window will appear.
Figure 6-70 OSPFv3 LSDB Network LSA Attached Router Detail Table window
Click the <<Back button to return to the previous window.
Click the View Detail link under Inter Area Prefix LSA in the OSPFv3 LSDB Table window, the following window will
appear.
Click the <<Back button to return to the previous window.
Click the View Detail link to under the specific column to view the details of the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Click the <<Back button to return to the previous window.
Click the View Detail link under Inter Area Router LSA in the OSPFv3 LSDB Table window, the following window

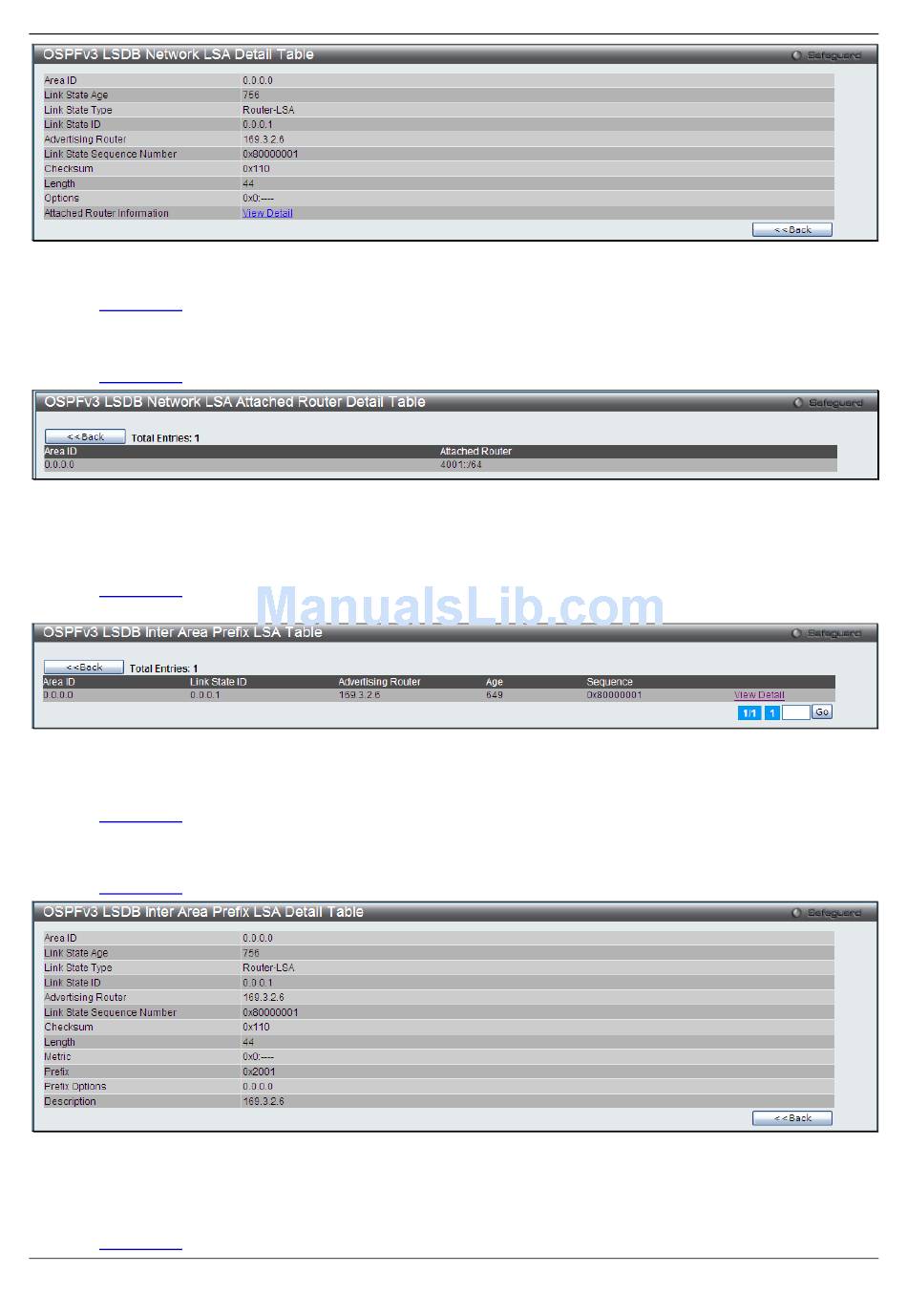

Figure 6-69 OSPFv3 LSDB Network LSA Detail Table window
Figure 6-71 OSPFv3 LSDB Inter Area Prefix LSA Table window
Figure 6-72 OSPFv3 LSDB Inter Area Prefix LSA Detail Table window
