ACL Configuration Wizard
The ACL Configuration Wizard will aid the user in the creation of access profiles and ACL Rules automatically by
simply inputting the address or service type and the action needed. It saves administrators a lot of time.
To view this window, click ACL > ACL Configuration Wizard as shown below:
The fields that can be configured are described below:
Parameter
Type
Profile Name
Profile ID
Access ID
From / To
ACL

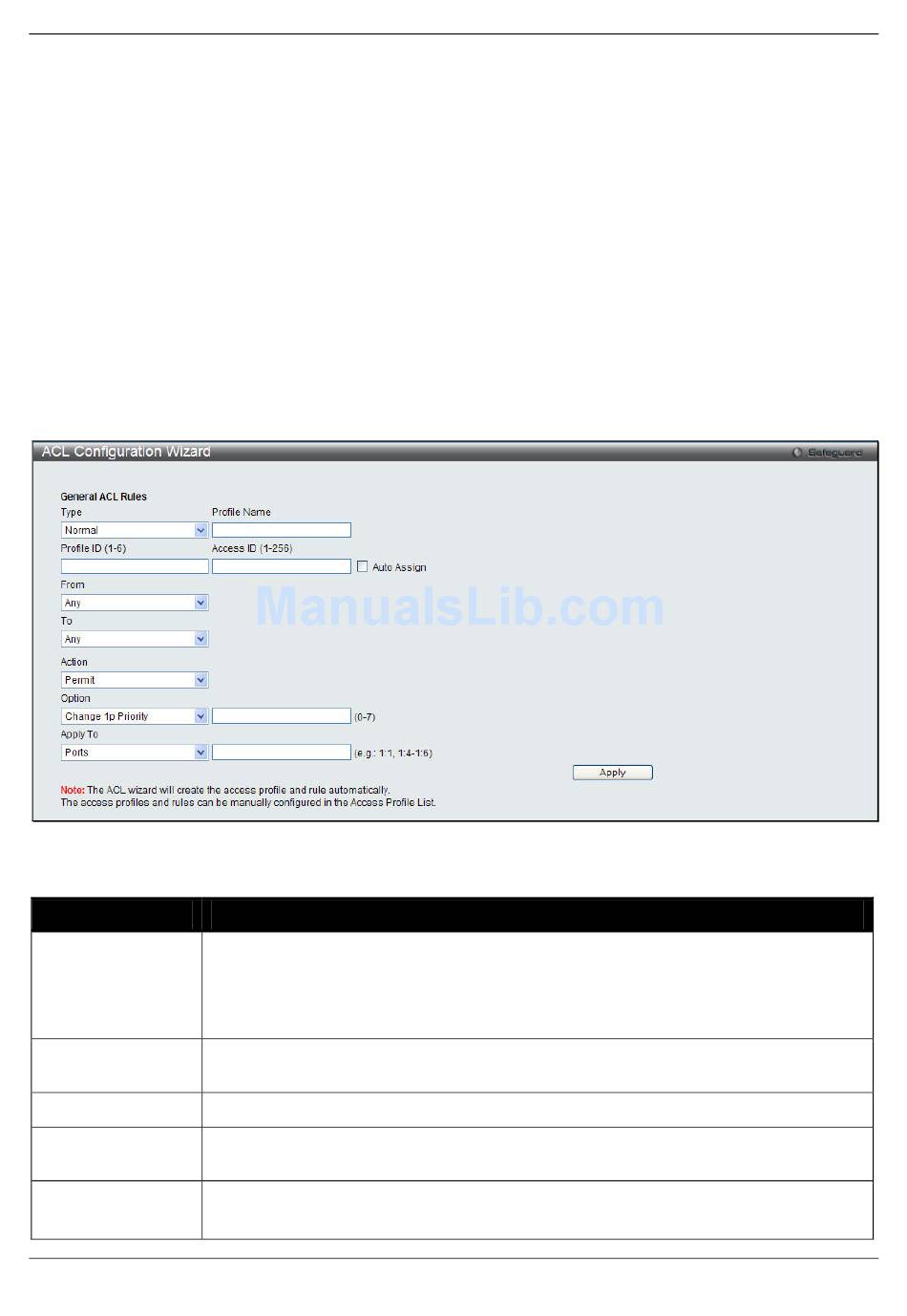

Figure 8-1 ACL Configuration Wizard window
Description
Use the drop-down menu to select the general ACL Rule types:
Normal – Selecting this option will create a Normal ACL Rule.
CPU – Selecting this option will create a CPU ACL Rule.
Egress - Selecting this option will create an Egress ACL Rule.
After selecting to configure a Normal type rule, the user can enter the Profile Name for
the new rule here.
Enter the Profile ID for the new rule.
Enter the Access ID for the new rule. Selecting the Auto Assign option will allow the
switch to automatically assign an unused access ID to this rule.
This rule can be created to apply to four different categories:
Any – Selecting this option will include any starting category to this rule.
