xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
The fields that can be configured are described below:
Parameter
MLD Proxy State
VLAN Name
VID
Source IP Address
Unsolicited Report
Interval (0-25)
Static Router Port
Click the Apply button to accept the changes made for each individual section.
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
MLD Proxy Downstream Settings
This window is used to configure the MLD proxy downstream interface in this page. The MLD proxy downstream
interface must be an MLD snooping enabled VLAN.
To view the following window, click L2 Features > L2 Multicast Control > MLD Proxy > MLD Proxy
Downstream Settings, as shown below:
The fields that can be configured are described below:
Parameter
VLAN Name
VID List
Downstream Action
Click the Apply button to accept the changes made.
MLD Proxy Group
This window displays the MLD Proxy Group settings.
To view the following window, click L2 Features > L2 Multicast Control > MLD Proxy > MLD Proxy Group, as
shown below:
Description
Use the radio buttons to enable or disable the MLD Proxy Global State.
Click the radio button and enter the VLAN name for the interface.
Click the radio button and enter the VLAN ID for the interface.
Enter the source IPv6 address of the upstream protocol packet. If it is not specified,
zero IP address will be used as the protocol source IP address.
The Unsolicited report interval. It is the time between repetitions of the host's initial
report of membership in a group. Default is 10 seconds. If set to 0, it means to send
only one report packet.
Select the port that will be included in this configuration.

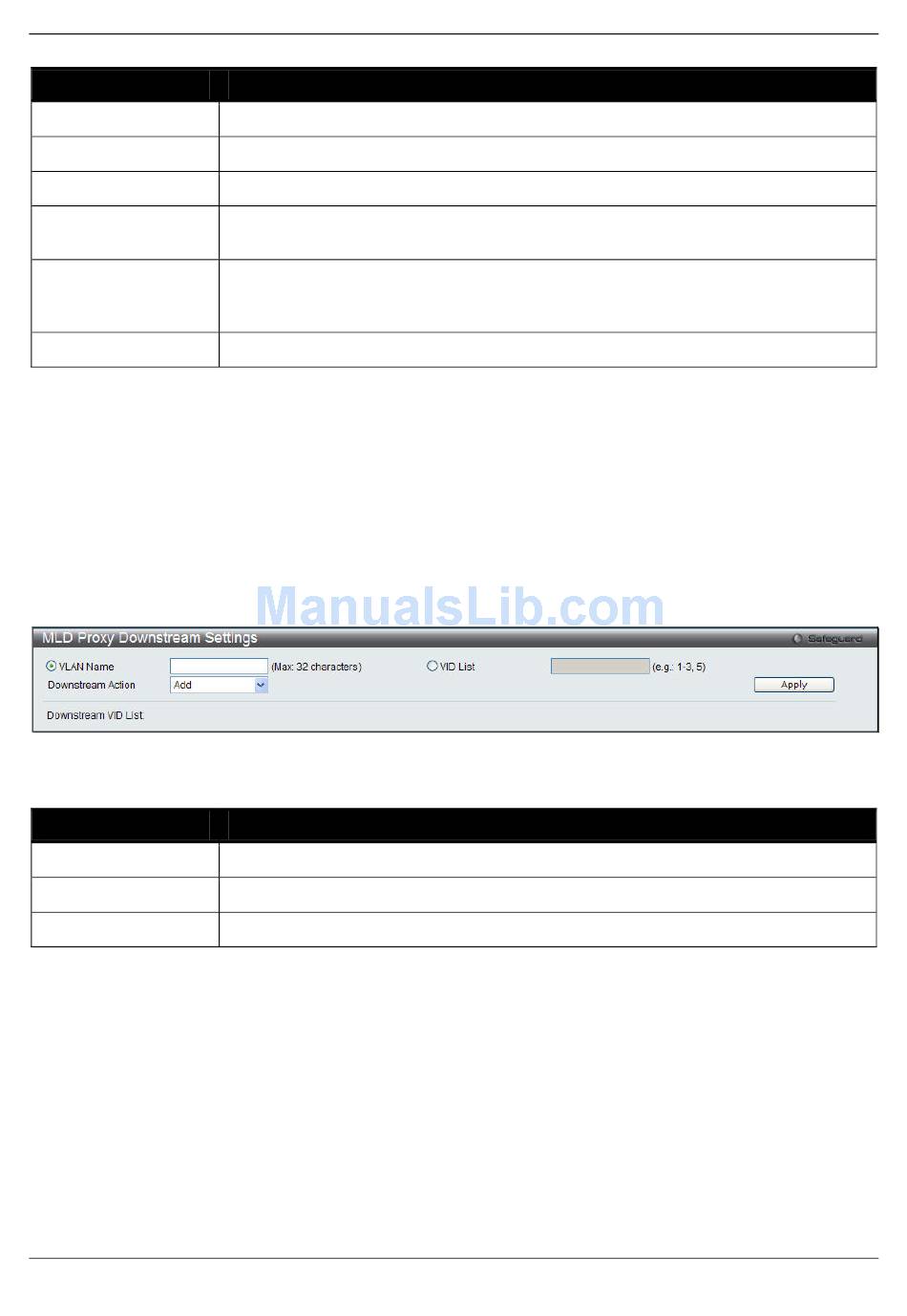

Figure 5-70 MLD Proxy Downstream Settings window
Description
Enter the VLAN Name which belongs to the MLD proxy downstream interface.
Enter a list of VLANs which belong to the MLD proxy downstream interface.
Use the drop-down menu to add or delete a downstream interface.
