After clicking the Show Details button, the following page will appear:

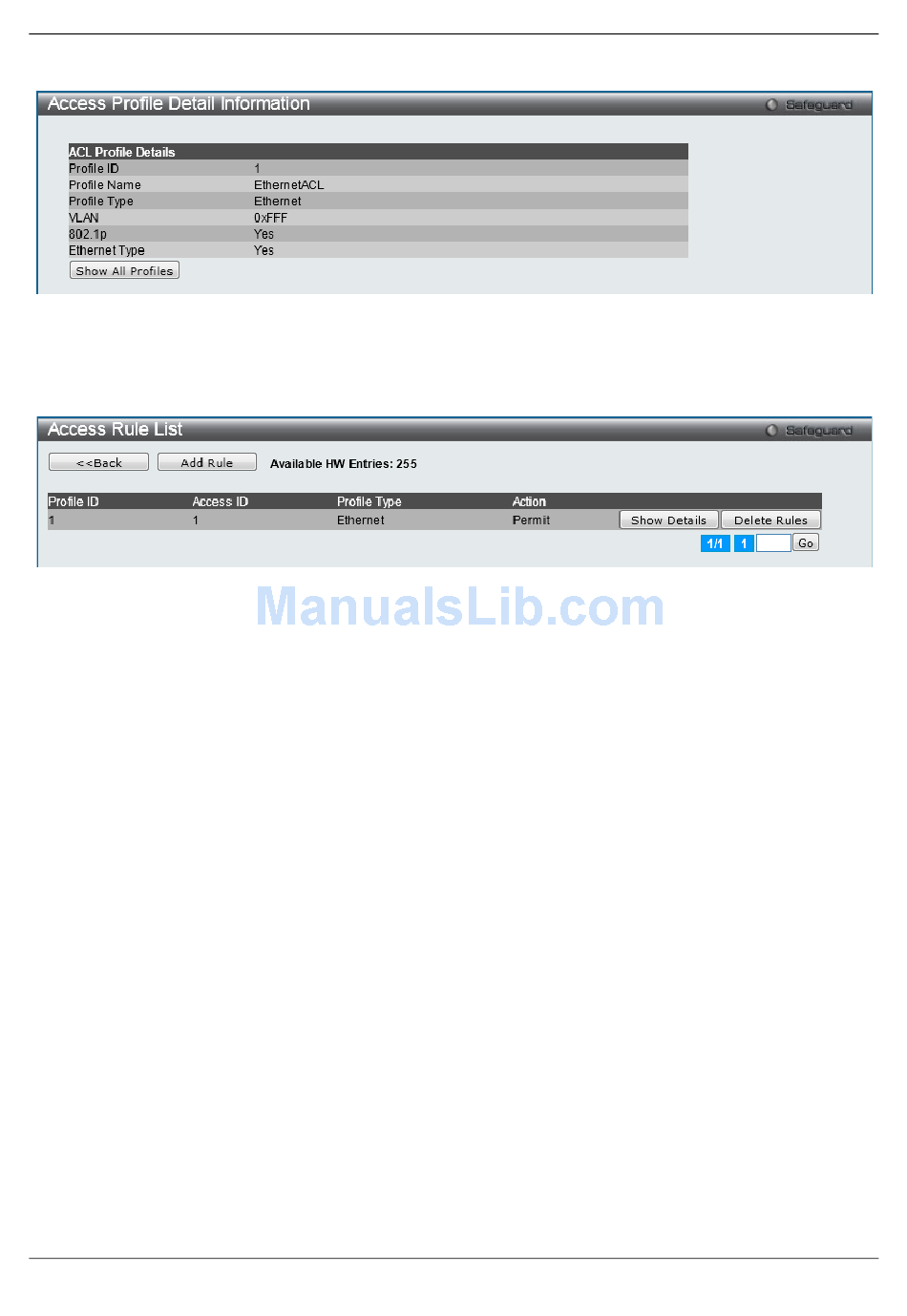

Figure 8-4 Access Profile Detail Information window (Ethernet ACL)
Click the Show All Profiles button to navigate back to the Access Profile List window.
After clicking the Add/View Rules button, the following page will appear:
Figure 8-5 Access Rule List window (Ethernet ACL)
Click the <<Back button to return to the previous page.
Click the Add Rule button to create a new ACL rule in this profile.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
