Adding An Ethernet Acl Profile - D-Link xStack Reference Manual

®
xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Click the Add ACL Profile button to add an entry to the Access Profile List.
Click the Delete All button to remove all access profiles from this table.
Click the Show Details button to display the information of the specific profile ID entry.
Click the Add/View Rules button to view or add ACL rules within the specified profile ID.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
There are four Add Access Profile windows;
•
one for Ethernet (or MAC address-based) profile configuration,
•
one for IPv6 address-based profile configuration,
•
one for IPv4 address-based profile configuration, and
•
one for packet content profile configuration.

Adding an Ethernet ACL Profile

The window shown below is the Add ACL Profile window for Ethernet. To use specific filtering masks in this ACL
profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add ACL Profile button, the following page will appear:

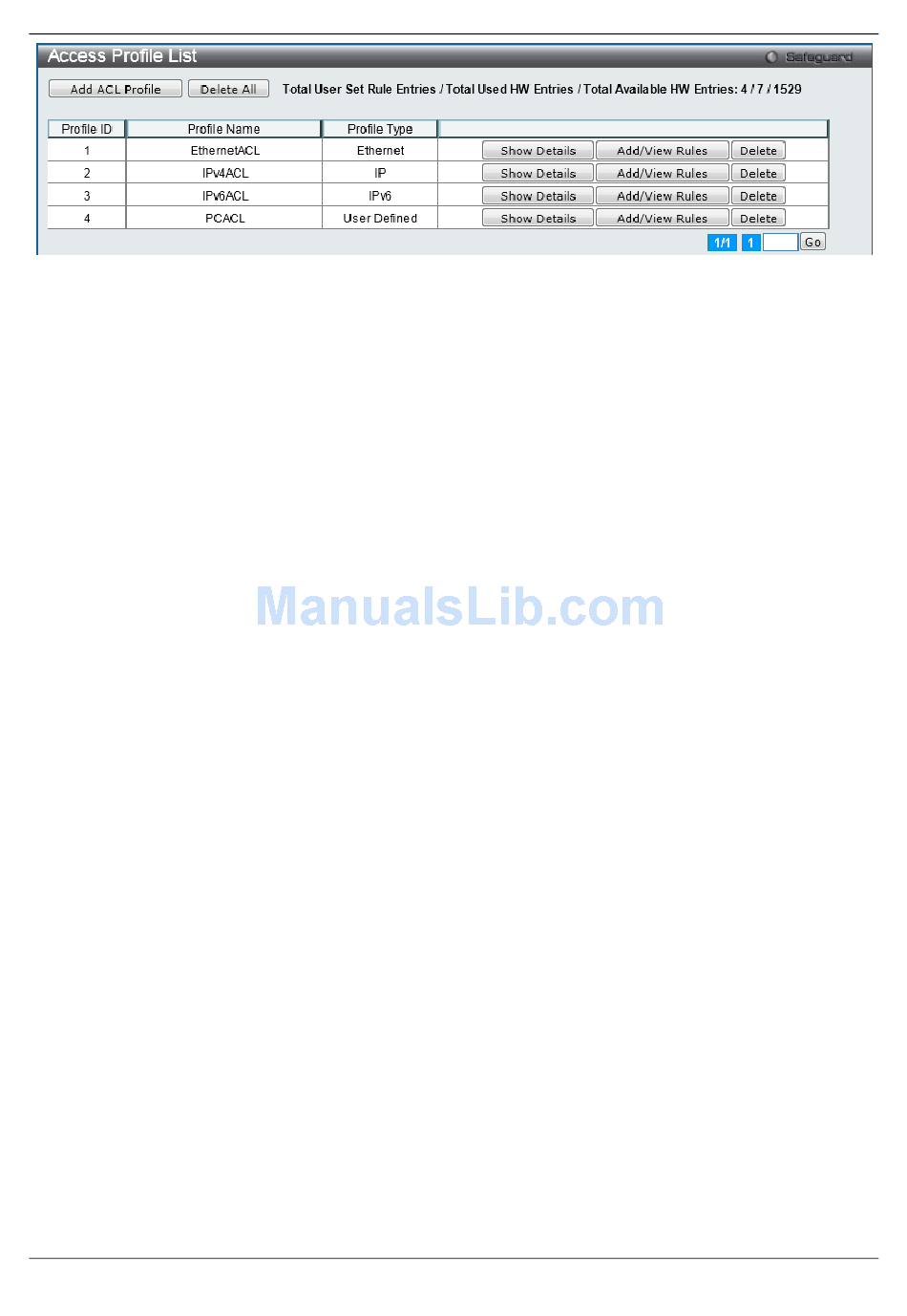

Figure 8-2 Access Profile List window
