Cfm Linktrace Settings - D-Link xStack Reference Manual

®
xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
MA Index
MAC Address
LBMs Number (1-
65535)
LBM Payload
Length (1-1500)
LBM Payload
Pattern
LBMs Priority
Click the Apply button to accept the changes made.

CFM Linktrace Settings

This window is used to configure the CFM linktrace settings.
To view this window, click OAM > CFM > CFM Linktrace Settings, as shown below:
The fields that can be configured are described below:
Parameter
MEP Name
MEP ID (1-8191)
MD Name
MD Index
MA Name
MA Index
MAC Address
TTL
Select and enter the Maintenance Association index used.
Enter the destination MAC address used here.
Number of LBMs to be sent. The default value is 4.
The payload length of LBM to be sent. The default is 0.
An arbitrary amount of data to be included in a Data TLV, along with an indication
whether the Data TLV is to be included.
The 802.1p priority to be set in the transmitted LBMs. If not specified, it uses the same
priority as CCMs and LTMs sent by the MA.

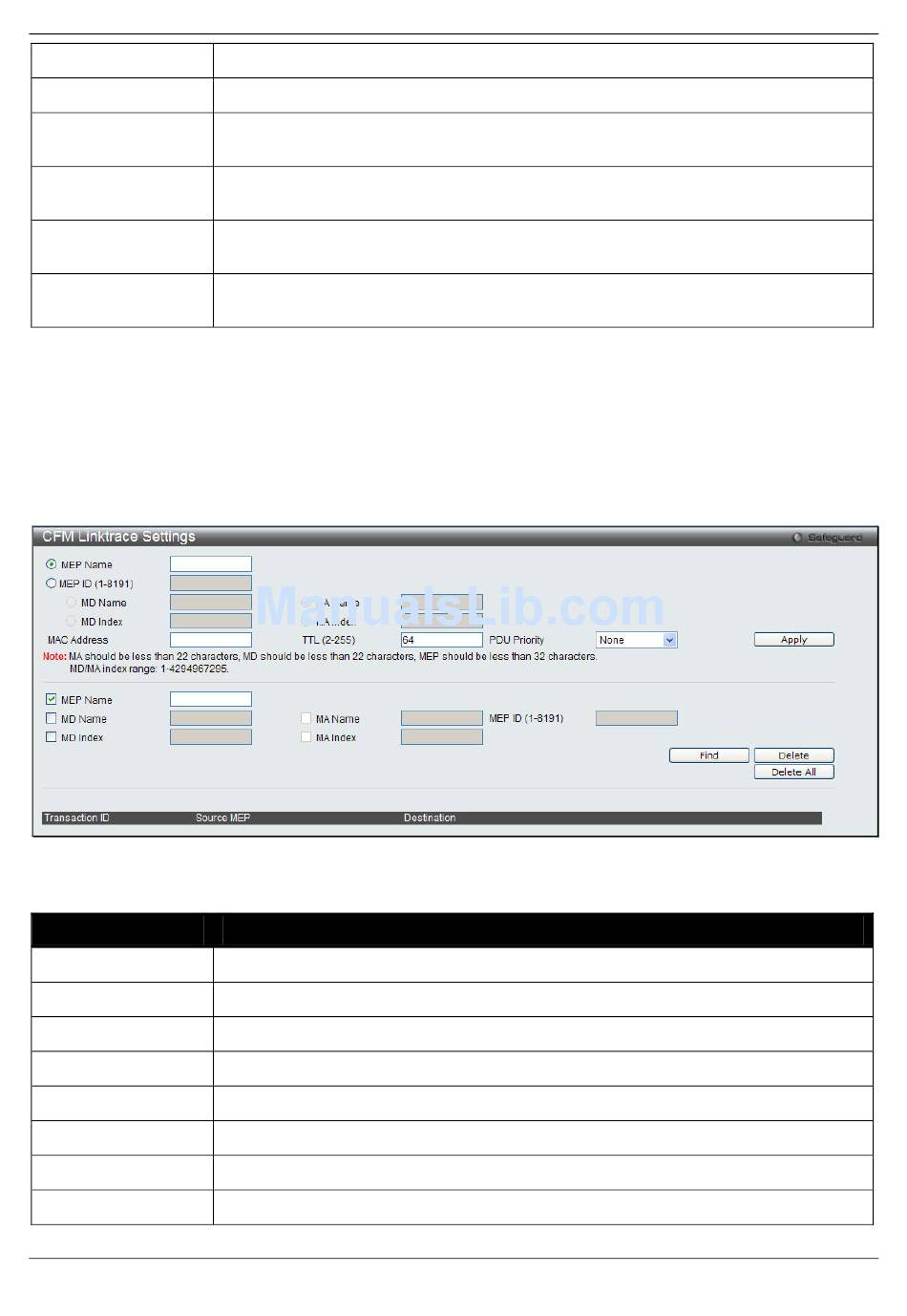

Figure 11-15 CFM Linktrace Settings window
Description
Select and enter the Maintenance End Point name used.
Select and enter the Maintenance End Point ID used.
Select and enter the Maintenance Domain name used.
Select and enter the Maintenance Domain index used.
Select and enter the Maintenance Association name used.
Select and enter the Maintenance Association index used.
Here the user can enter the destination MAC address.
Link-trace message TTL value. The default value is 64.
511
