Bgp Reflector Settings - D-Link xStack Reference Manual

®
xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Click the View Detail link in ORF Prefix List Name to view more information.
Click the <<Back button to return to the previous window.
Click the View Detail link in ORF Prefix List Name to see the following window.

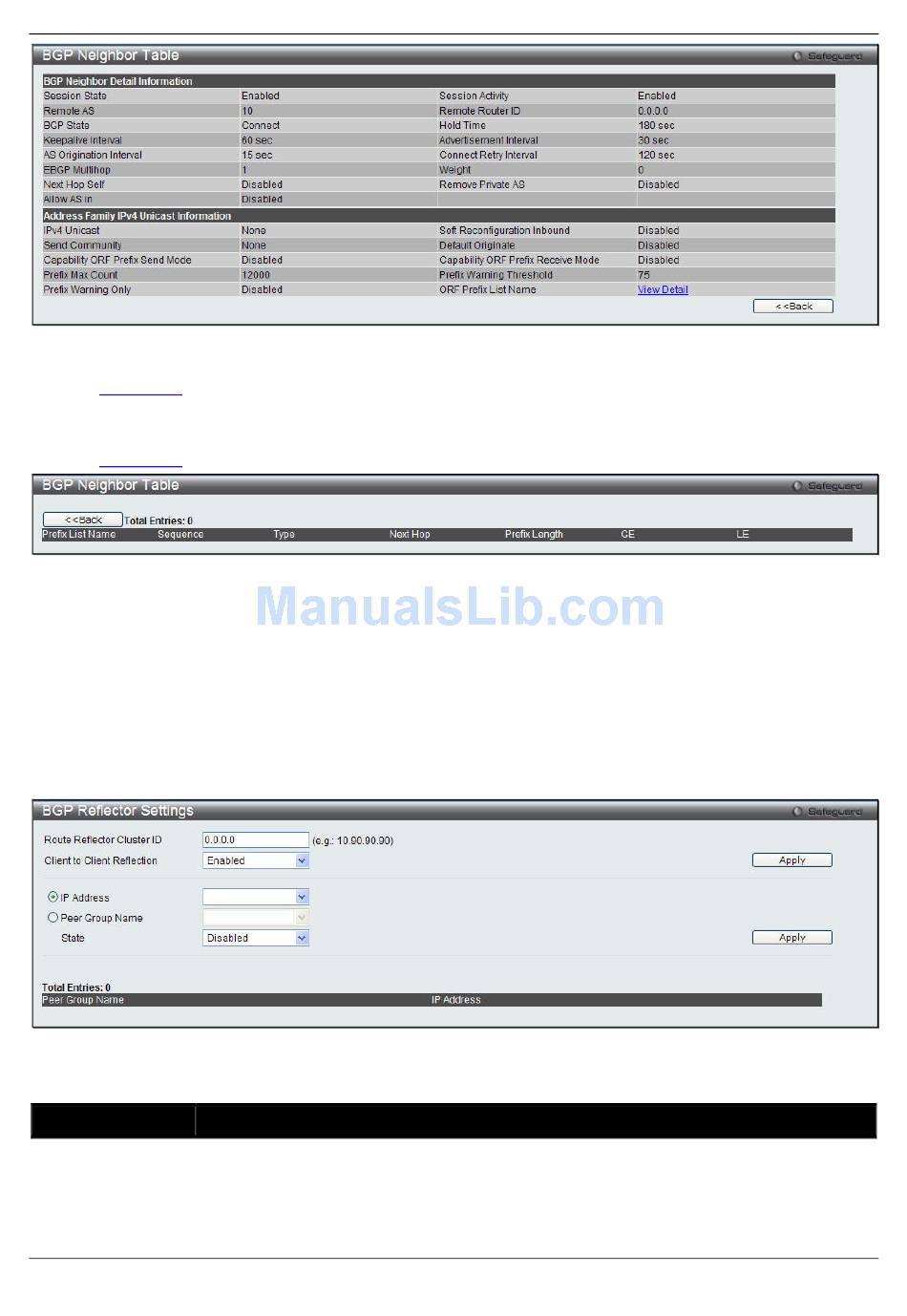

Figure 6-1586 BGP Neighbor Table - ORF Prefix List Name View Detail window
Click the <<Back button to return to the previous window.

BGP Reflector Settings

This window is used to configure the BGP's neighbor of the route reflector client.
To view the following window, click L3 Features > BGP > BGP Reflector Settings, as shown below:
The fields that can be configured are described below:
Parameter
Figure 6-157 BGP Neighbor Table - View Detail window
Figure 6-159 BGP Reflector Settings window
Description
294
