xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide

QinQ Settings

The user can configure the Q-in-Q parameters in this page.
To view the following window, click L2 Features > QinQ > QinQ Settings, as shown below:
The fields that can be configured are described below:
Parameter
QinQ State
Inner TPID
Unit
From Port / To Port
Role
Missdrop
Outer TPID
Use Inner Priority

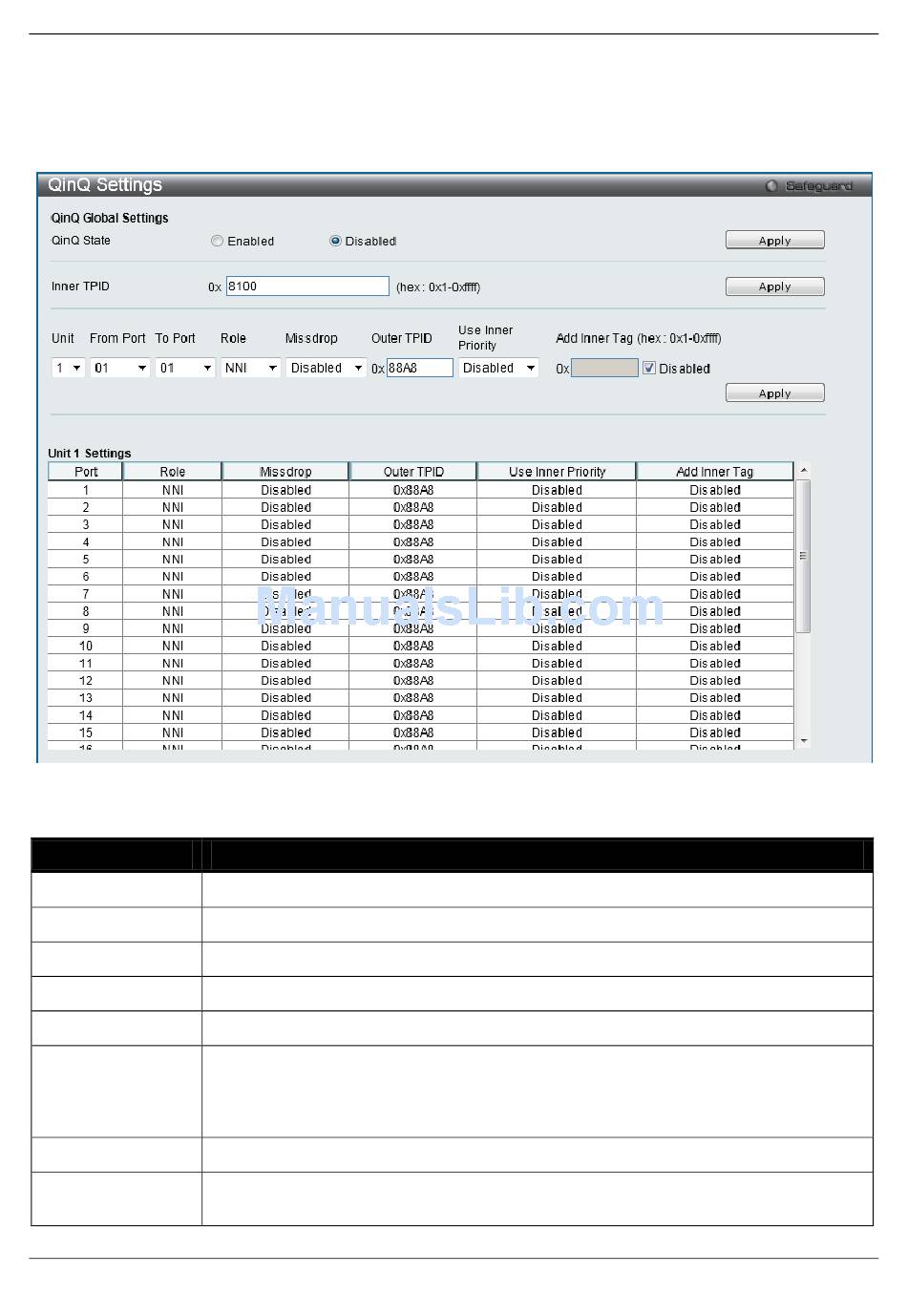

Figure 5-33 QinQ Settings window
Description
Selecting this option enable the Q-in-Q feature.
Enter an Inner TPID in customer VLAN tag here.
Select the unit you want to configure.
Here the user can select a range of ports to use in the configuration.
Port role in Q-in-Q mode, it can be UNI port or NNI port.
This option enables or disables C-VLAN based SP-VLAN assignment miss drop. If
Missdrop is enabled, the packet that does not match any assignment rule in the VLAN
translation and Q-in-Q profile will be dropped. If disabled, then the packet will be
forwarded and will be assigned to the PVID of the received port.
Enter an Outer TPID in SP-VLAN tag here.
Use the drop-down menu to specify whether to use the priority in the C-VLAN tag as the
priority in the S-VLAN tag. By default, the setting is Disabled.
113
