xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Click the View Detail link to under the Prefix Information to more information.
Click the <<Back button to return to the previous window.
Click the View Detail link under Prefix Information, the following window will appear.

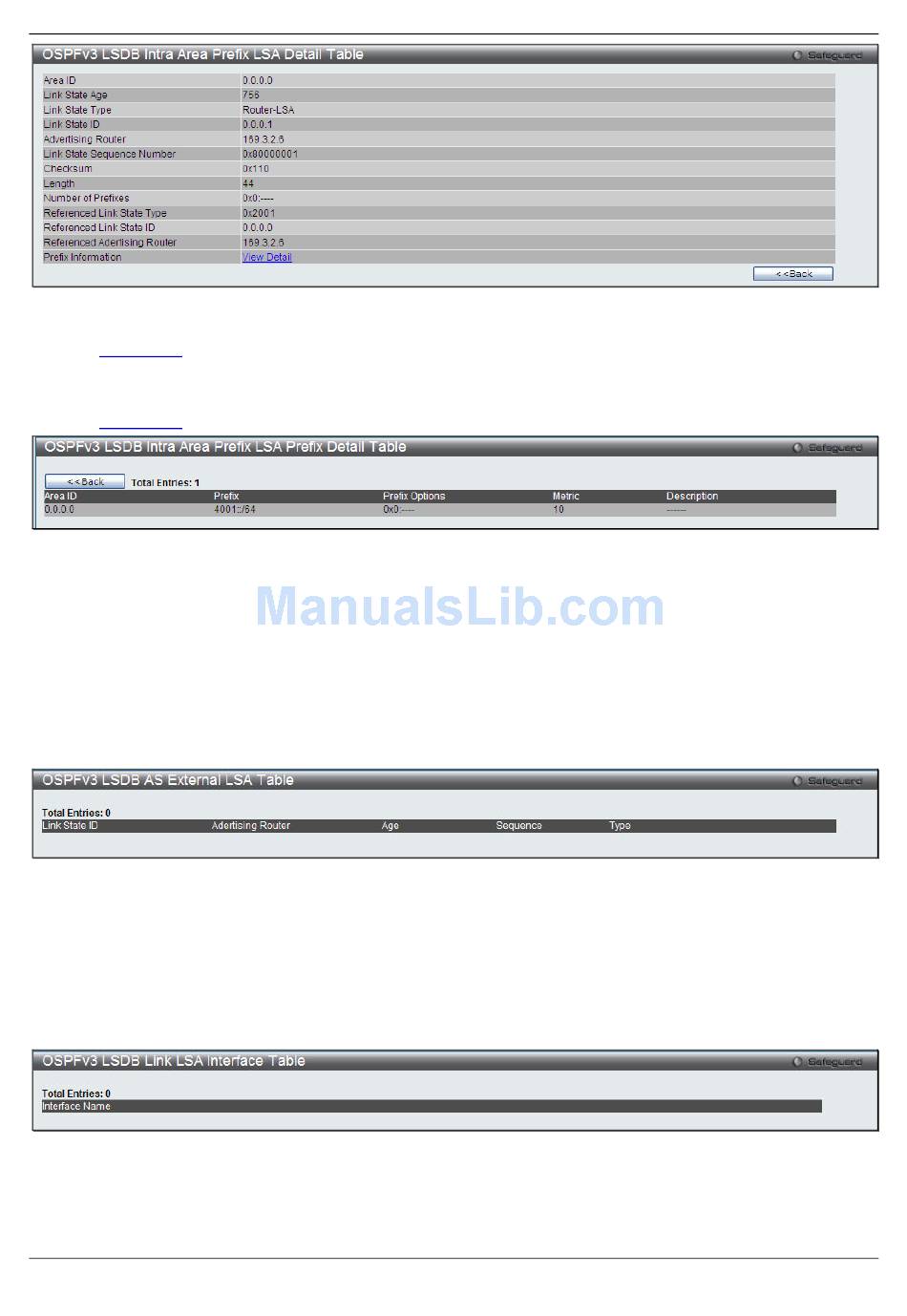

Figure 6-77 OSPFv3 LSDB Intra Area Prefix LSA Prefix Detail Table window
Click the <<Back button to return to the previous window.
OSPFv3 LSDB AS External LSA Table
This window displays OSPFv3 LSDB AS External LSA information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 LSDB AS External LSA Table, as
shown below:
OSPFv3 LSDB Link LSA Interface Table
This window displays OSPFv3 LSDB Link LSA interface information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 LSDB Link LSA Interface Table,
as shown below:

OSPFv3 Neighbor Table

This window is used to display OSPFv3 neighbor information.
Figure 6-76 OSPFv3 LSDB Intra Area Prefix LSA Detail Table window
Figure 6-78 OSPFv3 LSDB AS External LSA Table window
Figure 6-79 OSPFv3 LSDB Link LSA Interface Table window
241
