Figure 410. Bist Test Data Frame; Figure 411. Bist Carrier Mode 2 Frame - ST STM32G0 1 Series Reference Manual

USB Type-C™ / USB Power Delivery interface (UCPD)
The BIST test data packet frame format is shown in the following figure.
(training for receiver)
Legend:
This is a fixed length test data pattern. In reality the only aspect that marks its difference
from the general packet format already shown in
of the Header. As UCPD receives the Tx Header contents via programming (it is simply
viewed as part of the payload), it is only this programming (and not the block's behaviour)
that differentiates the general packet from the BIST Test Data packet.
BIST Carrier Mode 2
When required, this BIST test mode sends an alternating pattern of 1010 that is continually
repeated. As this mode is intended for signal analysis it is stable condition with (in V1.0 of
the USB PD specification) no defined length. Starting from V1.1 of the USB PD
specification, the protocol layer defines a counter that indicates when to exit this mode.
The way to quit the infinite 1010 sequence (according to requirements of the USB PD
specification) is to disable the UCPD peripheral via the UCPDEN bit.
1318/1390

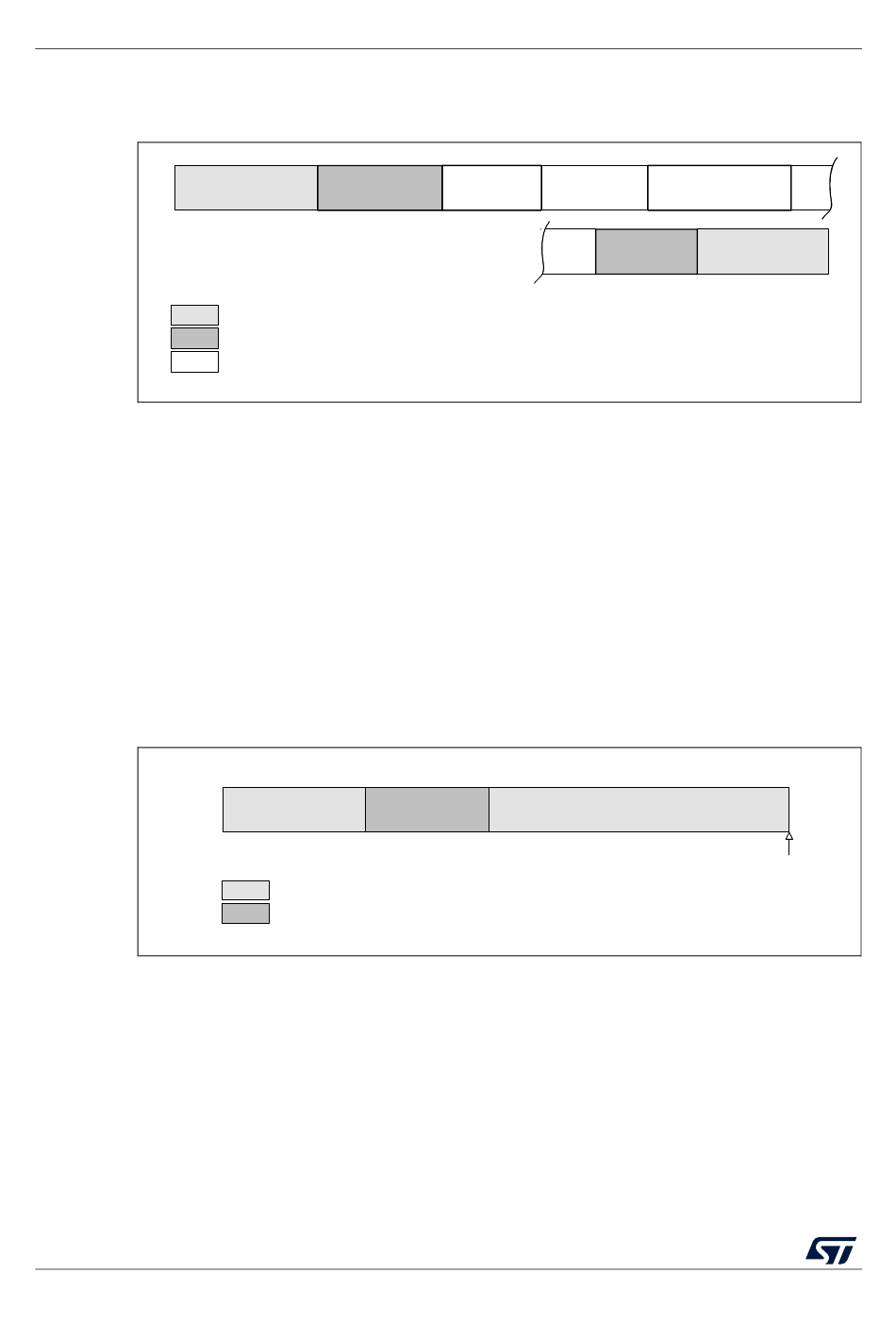

Figure 410. BIST test data frame
