2.3 Windrower Dimensions

When transporting a windrower, it is important to know the windrower's outside dimensions.
G

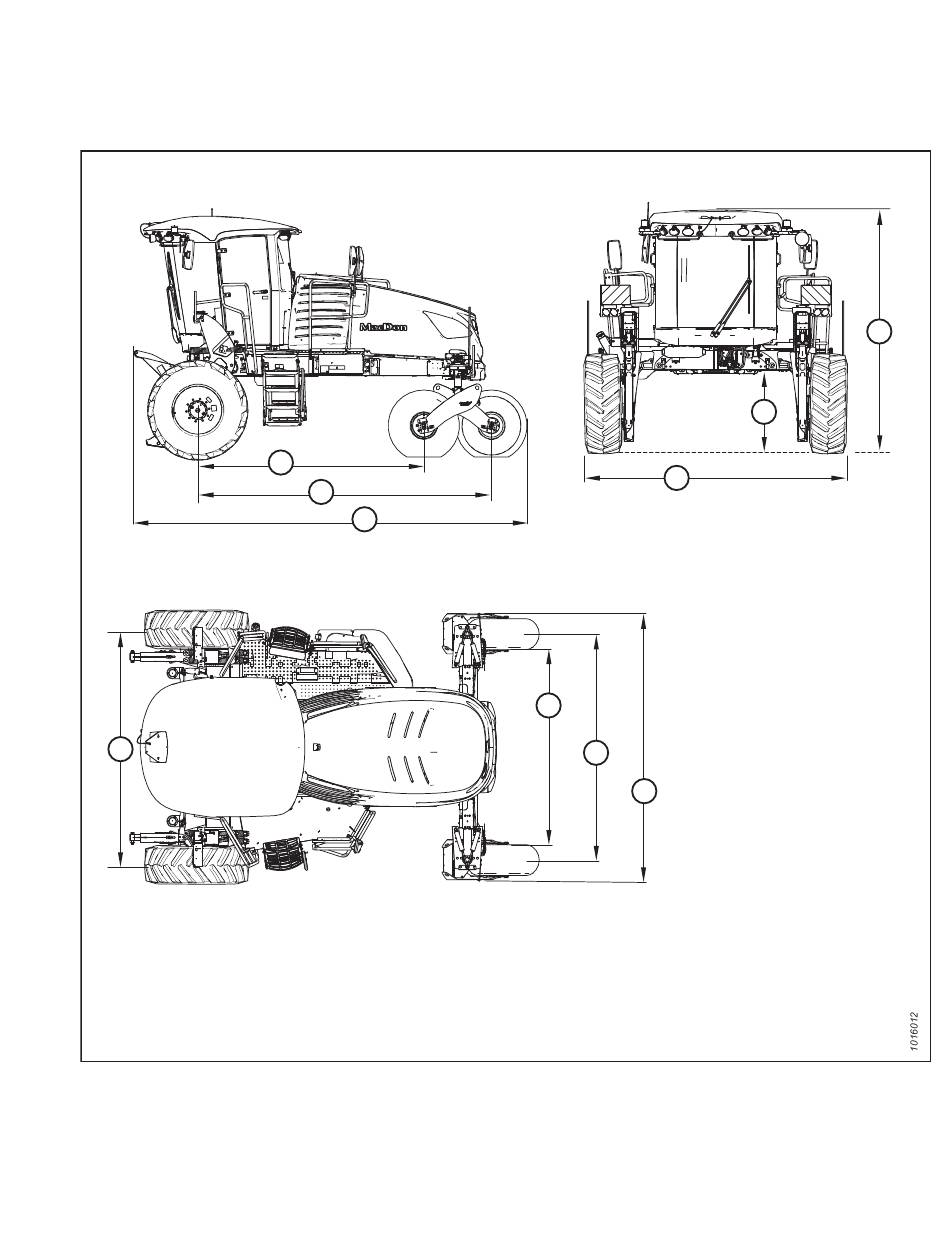

Figure 2.2: Windrower Dimensions
A - 3304 mm (130 3/32 in.)
C - 5140 mm (202 3/8 in.) (Road)
E - 1150 mm (45 5/16 in.)
G - 2934 mm (115 1/2 in.) (Road)
J - 3846 mm (151 1/2 in.) (Max)
262171
PRODUCT OVERVIEW
A
B
C
B - 4290 mm (168 7/8 in.)
D - 3834 mm (150 15/16 in.) (Field)
F - 3480 mm (137 1/32 in.)
H - 3412 mm (134 1/3 in.) (Field)
K - 4403 mm (173 11/32 in.) (Field)
D
H
J
K
37
F
E
C - 5752 mm (226 7/16 in.) (Field)
D - 3489 mm (137 13/32 in.) (Road)
G - 3294 mm (129 11/16 in.) (Field)
H - 2170 mm (85 7/16 in.) (Road)
K - 3162 mm (124 1/2 in.) (Road)
Revision A
