M105. M155, and M205 Drive Wheel Nut Installation For SPN D61, SPN E03 SPN E04, or E06
1. Remove decal MD #166472 (220 ft-lbs) from the right
hand window of the windrower.
2. Apply decal MD #166575 (170 ft-lbs) in the same
location. Refer to the approximate dimensions in
Figure 2.
-
60 mm to the right of the R/H window hinge 160 mm
up from the R/H window hinge
Form 169
Safety Product Modification
Revision A

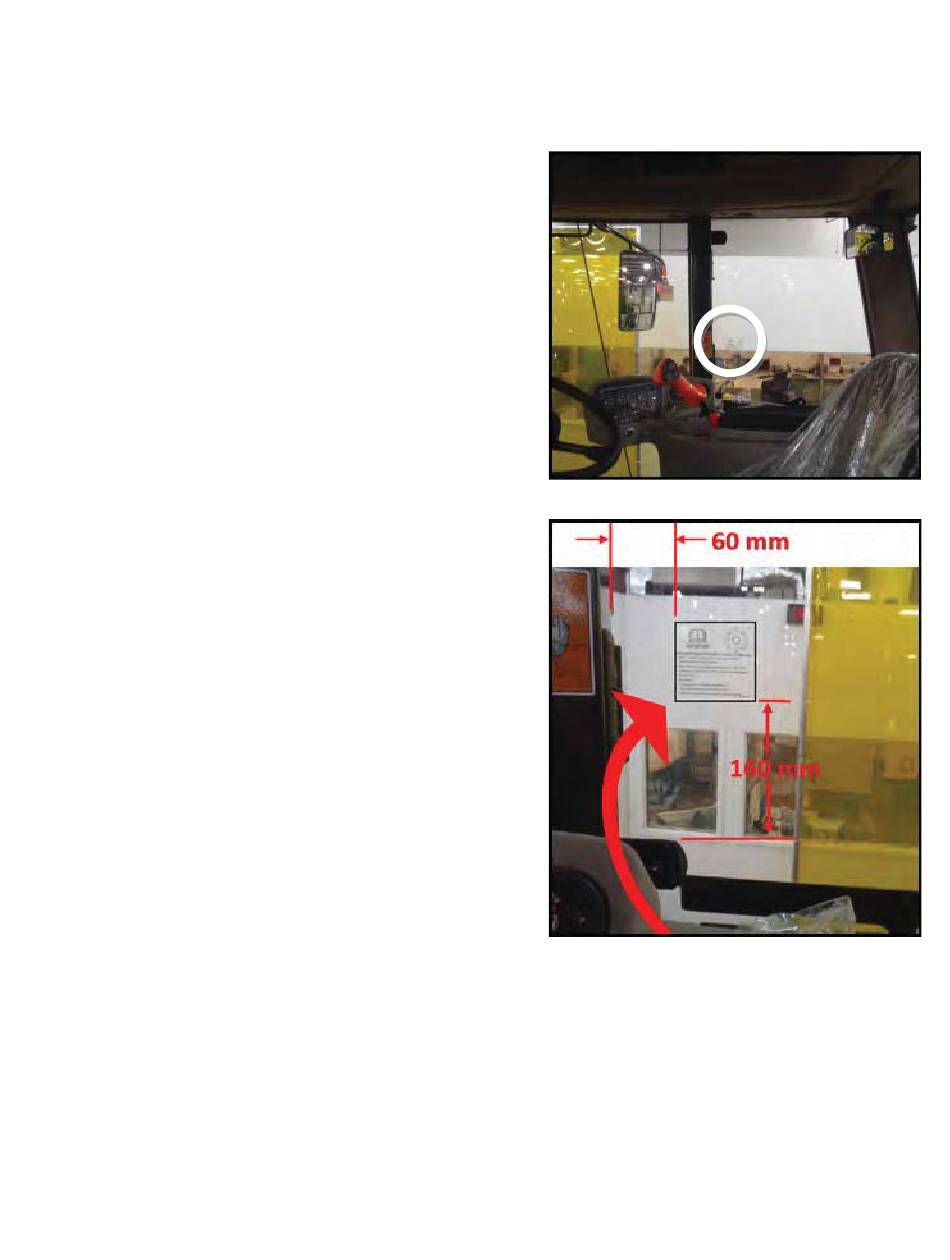

Figure 1 – Windrower R/H Window Decal
Figure 2 – R/H Window Decal
Page 1of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M105 and is the answer not in the manual?

Questions and answers

Related Manuals for MacDon M105

Summary of Contents for MacDon M105

  • Page 1 M105. M155, and M205 Drive Wheel Nut Installation For SPN D61, SPN E03 SPN E04, or E06 Safety Product Modification 1. Remove decal MD #166472 (220 ft-lbs) from the right hand window of the windrower. Figure 1 – Windrower R/H Window Decal 2.
  • Page 2 Place decal MD #166584 (170 ft-lbs) directly on top of decal MD #166472 (220 ft-lbs) on both left hand and right hand drive tires on both the inside and outside of the rims. Figure 3 – Drive Wheel Decal Location Figure 4 –...
  • Page 3 5. It is critical to ensure that the hardware is L9. Verify as follows: Verify nut is L9 by ensuring it has 9 marks on one side (See Figure 6) Verify washer is L9 by ensuring it has “L9” stamped on one side (see Figure 6) 6.
  • Page 4 Inserting Supplemental Pages Into Customer’s Existing Manuals Remove printed package from shrink wrap. The package has information for M105, M155 and M205. Depending on which unit you are working on, pull the appropriate model-specific information from the package and discard the rest.
  • Page 5 M105 Self-Propelled Windrower Supplement to Operator’s Manual 169552_SUPPLEMENT Rev. D...

  • Page 7: Maintenance And Servicing

    50 Hours 7.12.2.6 Inboard Bolts - 100 ft·lbf (135 N·m). Outboard Bolts - 85 ft·lbf (115 N·m). Change Drive Wheel Lubricant. 7.12.1.3 Change Hydraulic Oil Filters. 7.11.3 Replaces Page 122 in M105 Op Manual 169552_Supplement Revision D Page 3 of 8...

  • Page 8: Wheels And Tires

    Repeat sequence three times. • 1XWV VKRXOG EH LQVWDOOHG GU\ 'R QRW OXEULFDWH WKUHDGV ZLWK RLO RU SURGXFWV VXFK DV 1HYHU 6HH]Š 169552 / 169554 Revision D Replaces Page 184 in M105 Op Manual...
  • Page 9 Jack up windrower under leg jack point, and raise windrower wheel slightly off ground. 1XWV VKRXOG EH LQVWDOOHG GU\ 'R QRW OXEULFDWH WKUHDGV ZLWK RLO RU SURGXFWV VXFK DV 1HYHU 6HH]Š 169552_Supplement Revision D Page 7 of 8 Replaces Page 186 in M105 Op Manual...
  • Page 10 Re-check the torque as per Section 7.12.1.2 Drive Wheel Nut Torque. 1XWV VKRXOG EH LQVWDOOHG GU\ 'R QRW OXEULFDWH WKUHDGV ZLWK RLO RU SURGXFWV VXFK DV 1HYHU 6HH]Š Page 8 of 8 Replaces Page 187 in M105 Op Manual Replaces Page 187 in M105 Op Manual...

  • Page 11: Parts Catalog

    M105 Self-Propelled Windrower PARTS CATALOG Part #169549 Rev. D SUPPLEMENT_ Original Instruction...
  • Page 12 DRIVE WHEELS AND TIRES Form # 169549/ 169550/ 169551 Revision D SUPPLEMENT...
  • Page 13 DRIVE WHEELS AND TIRES PART SERIAL DESCRIPTION NUMBER NUMBER B4632 Kit - Drive Tires - TURF 23.1-26 ............See note 1 111699 WHEEL 26DW-20L C/W DECALS ............111695 TIRE 23.1 X 26 R3 10 PLY ..............112475 STEM ....................135611 PLUG –...
  • Page 14 DRIVE WHEEL MOTOR ASSEMBLY – BOLTED FRAME Form # 169549/ 169550/ 169551 Revision D SUPPLEMENT...
  • Page 15 DRIVE WHEEL MOTOR ASSEMBLY – BOLTED FRAME PART SERIAL DESCRIPTION NUMBER NUMBER 162241 MOTOR-WITH SPEED SENSOR ............162230 MOTOR WITHOUT SPEED SENSOR ..........162237 GUARD-SENSOR ................. 112184 FITTING - ADAPTER HYD ..............111693 HOSE-HYDRAULIC ................162236 DRIVE- WHEEL AUBURN 41.42:1 ............111266 PLATE - WHEEL DRIVE ...............
  • Page 16 INFORMATION DECALS & REFLECTORS Form # 169549/ 169550/ 169551 Revision D SUPPLEMENT...
  • Page 17 INFORMATION DECALS & REFLECTORS PART SERIAL DESCRIPTION NUMBER NUMBER 23165 DECAL – 50 HR LUBE 109842 DECAL – IMPORTANT 109205 DECAL – AUXILIARY POWER 160369 DECAL - LIGHTS 160320 DECAL-GROUND SPEED 160321 DECAL-SWITCH PANEL 166281 DECAL – HYDRAULIC OIL 109206 DECAL –...
  • Page 18 THIS PAGE INTENTIONALLY BLANK...
  • Page 19 M155 Self-Propelled Windrower Supplement to Operator’s Manual 169563_SUPPLEMENT Rev. D Original Instruction The harvesting specialists worldwide.
  • Page 20 1 Supplement to Operator's Manual Issued November 28, 2013 This supplement contains important updates to the information in your M155 Self-Propelled Windrower Operator’s Manual. It is vital that you are aware of and use this new information. Insert the attached pages into the manual as follows: Topic title Page reference in original manual Tightening Drive Wheel Nuts...

  • Page 21: Tightening Drive Wheel Nuts

    2 Tightening Drive Wheel Nuts At first use, or when a wheel is removed, re-torque drive wheel nut torque after one hour of operation. Continue with torquing procedure at one hour intervals of operation until two consecutive checks produce no movement of the nuts.

  • Page 22: Installing Drive Wheel

    3 Installing Drive Wheel 1. Position the drive wheel (A) onto the wheel drive hub (B). NOTE: Ensure that the valve stem (C) faces outboard, and that the tire tread (D) points forward when viewing tire from above. NOTE: For Turf tires (diamond tread), be sure arrow on sidewall points in forward rotation.

  • Page 23: Lowering Drive Wheel

    INSTALLING DRIVE WHEEL 3.1 Lowering Drive Wheel This procedure can be used on both drive wheels. 1. Place a jack under the leg jack point (A) and raise the drive wheel slightly off the jack stand. 2. Remove the jack stand and lower the drive wheel to the ground.

  • Page 24: Maintenance And Servicing

    MAINTENANCE AND SERVICING 5.11 Maintenance Schedule The Maintenance Schedule (see next page) speci¿es the periodic maintenance procedures and service intervals. Regular maintenance is the best insurance against early wear and untimely breakdowns. Following this schedule will increase machine life. For detailed instructions, refer to . Use the Àuids and lubricants speci¿ed in 5.1.2 Recommended Fuel, Fluids, and Lubricants, page 266.

  • Page 25: Parts Catalog

    M155 Self-Propelled Windrower Parts Catalog 169564 Rev. D SUPPLEMENT_ The harvesting specialists worldwide.
  • Page 26 DRIVE WHEELS AND TIRES 12 Drive Wheels and Tires 169564 Rev. D _SUPPLEMENT...
  • Page 27 DRIVE WHEELS AND TIRES Part Serial Number Description Number Kit — Drive Tires - TURF 23.1-26 B4632 (Kit available through Whole Goods only.) 111699 WHEEL – 26DW-20L C/W DECALS 111695 TIRE – 23.1 X 26 R3 10 PLY 112475 STEM 135611 PLUG –...
  • Page 28 DRIVE WHEELS AND TIRES 169564 Rev. D _SUPPLEMENT...
  • Page 29 DRIVE WHEELS AND TIRES Part Serial Number Description Number Kit – Drive Tires - TURF 580-70R26 B5506 (Kit available through Whole Goods only.) 111699 WHEEL – 26DW-20L C/W DECALS 162431 TIRE – 580-70R26, TURF RADIAL 112475 STEM – VALVE (METAL) 135611 PLUG –...

  • Page 30: Drive Wheel Motor

    DRIVE WHEEL MOTOR 50 Drive Wheel Motor 169564 Rev. D _SUPPLEMENT...
  • Page 31 DRIVE WHEEL MOTOR Part Serial Number Description Number 111579 DRIVE – BONFIGLIOLI POWERWHEEL 163614 DRIVE – AUBURN POWERWHEEL 111266 PLATE – WHEEL DRIVE 109958 MOTOR – DRIVE (3 SPD BONDIOLI) 111693 HOSE – HYDRAULIC 135901 FITTING – ELBOW H1YD 100790 FITTING –...
  • Page 32 INFORMATION DECALS AND REFLECTORS 70 Information Decals and Reflectors 169564_SUPPLEMENT Rev.D...
  • Page 33 INFORMATION DECALS AND REFLECTORS Part Serial Number Description Number 23165 DECAL – 50 HR LUBE 109842 DECAL – IMPORTANT 109205 DECAL – AUXILIARY POWER 183313 DECAL – SWITCH PANEL 183314 DECAL – GROUND SPEED 115148 DECAL – SLOW MOVING VEHICLE, behind driver’s seat 110990 DECAL –...
  • Page 35 M205 Self-Propelled Windrower Supplement to Operator’s Manual 169469_SUPPLEMENT Rev. F Original Instruction The harvesting specialists worldwide.
  • Page 36 1 Supplement to Operator's Manual Issued November 28, 2013 This supplement contains important updates to the information in your M205 Self-Propelled Windrower Operator’s Manual. It is vital that you are aware of and use this new information. Insert the attached pages into the manual as follows: Topic title Page reference in original manual Tightening Drive Wheel Nuts...

  • Page 37: Maintenance And Servicing

    MAINTENANCE AND SERVICING Tightening Drive Wheel Nuts At ¿rst use, or when a wheel is removed, re-torque drive wheel nut torque after one hour of operation. Continue with torquing procedure at one hour intervals of operation until two consecutive checks produce no movement of the nuts.

  • Page 38: Installing Drive Wheel

    3 Installing Drive Wheel 1. Position the drive wheel (A) onto the wheel drive hub (B). NOTE: Ensure that the valve stem (C) faces outboard, and that the tire tread (D) points forward when viewing tire from above. NOTE: For Turf tires (diamond tread), be sure arrow on sidewall points in forward rotation.
  • Page 39 INSTALLING DRIVE WHEEL 3.1 Lowering Drive Wheel This procedure can be used on both drive wheels. 1. Place a jack under the leg jack point (A) and raise the drive wheel slightly off the jack stand. 2. Remove the jack stand and lower the drive wheel to the ground.
  • Page 40 MAINTENANCE AND SERVICING 5.11 Maintenance Schedule The Maintenance Schedule (see next page) speci¿es the periodic maintenance procedures and service intervals. Regular maintenance is the best insurance against early wear and untimely breakdowns. Following this schedule will increase machine life. For detailed instructions, refer to the various procedures in this chapter. Use the Àuids and lubricants speci¿ed in Section 5.1.2 Recommended Fuel, Fluids, and Lubricants, page 212.
  • Page 41 SB 1356 Page 3 of 5 ENGINE BELTS - Replacing Fan Belt (2013 and newer or with Fan Drive Upgrade Kit) NOTE: 2013 and newer windrowers, or units that have had Fan Drive Upgrade Kit MD #139956 installed, will have a belt tensioner as shown in Figure 1. If your belt tensioner does not resemble the one in Figure 1 VHH 6%  1.
  • Page 43 M205 Self-Propelled Windrower Parts Catalog 169472 Rev. F SUPPLEMENT_ Original Instruction The harvesting specialists worldwide.
  • Page 44 DRIVE WHEELS AND TIRES 12 Drive Wheels and Tires 169472 Rev. F _SUPPLEMENT...
  • Page 45 DRIVE WHEELS AND TIRES Part Serial Number Description Number Kit — Drive Tires - TURF 23.1-26 B4632 (Kit available through Whole Goods only.) 111699 WHEEL – 26DW-20L C/W DECALS 111695 TIRE – 23.1 X 26 R3 10 PLY 112475 STEM 135611 PLUG –...
  • Page 46 DRIVE WHEELS AND TIRES 169472 Rev. F _SUPPLEMENT...
  • Page 47 DRIVE WHEELS AND TIRES Part Serial Number Description Number Kit – Drive Tires - TURF 580-70R26 B5506 (Kit available through Whole Goods only.) 111699 WHEEL – 26DW-20L C/W DECALS 162431 TIRE – 580-70R26, TURF RADIAL 112475 STEM – VALVE (METAL) 135611 PLUG –...

  • Page 48: Drive Wheel Motor

    DRIVE WHEEL MOTOR 50 Drive Wheel Motor 169472 Rev. F _SUPPLEMENT...
  • Page 49 DRIVE WHEEL MOTOR Part Serial Number Description Number 111579 DRIVE – BONFIGLIOLI POWERWHEEL 163614 DRIVE – AUBURN POWERWHEEL 111266 PLATE – WHEEL DRIVE 109958 MOTOR – DRIVE (3 SPD BONDIOLI) 111693 HOSE – HYDRAULIC 135901 FITTING – ELBOW H1YD 100790 FITTING –...
  • Page 50 INFORMATION DECALS AND REFLECTORS 73 Information Decals and Reflectors 169472_SUPPLEMENT Rev.F...
  • Page 51 INFORMATION DECALS AND REFLECTORS Part Serial Number Description Number 23165 DECAL – 50 HR LUBE 109842 DECAL – IMPORTANT 109205 DECAL – AUXILIARY POWER 183313 DECAL – SWITCH PANEL 183314 DECAL – GROUND SPEED 115148 DECAL – SLOW MOVING VEHICLE, behind driver’s seat 110990 DECAL –...
  • Page 52 THIS PAGE INTENTIONALLY BLANK...
