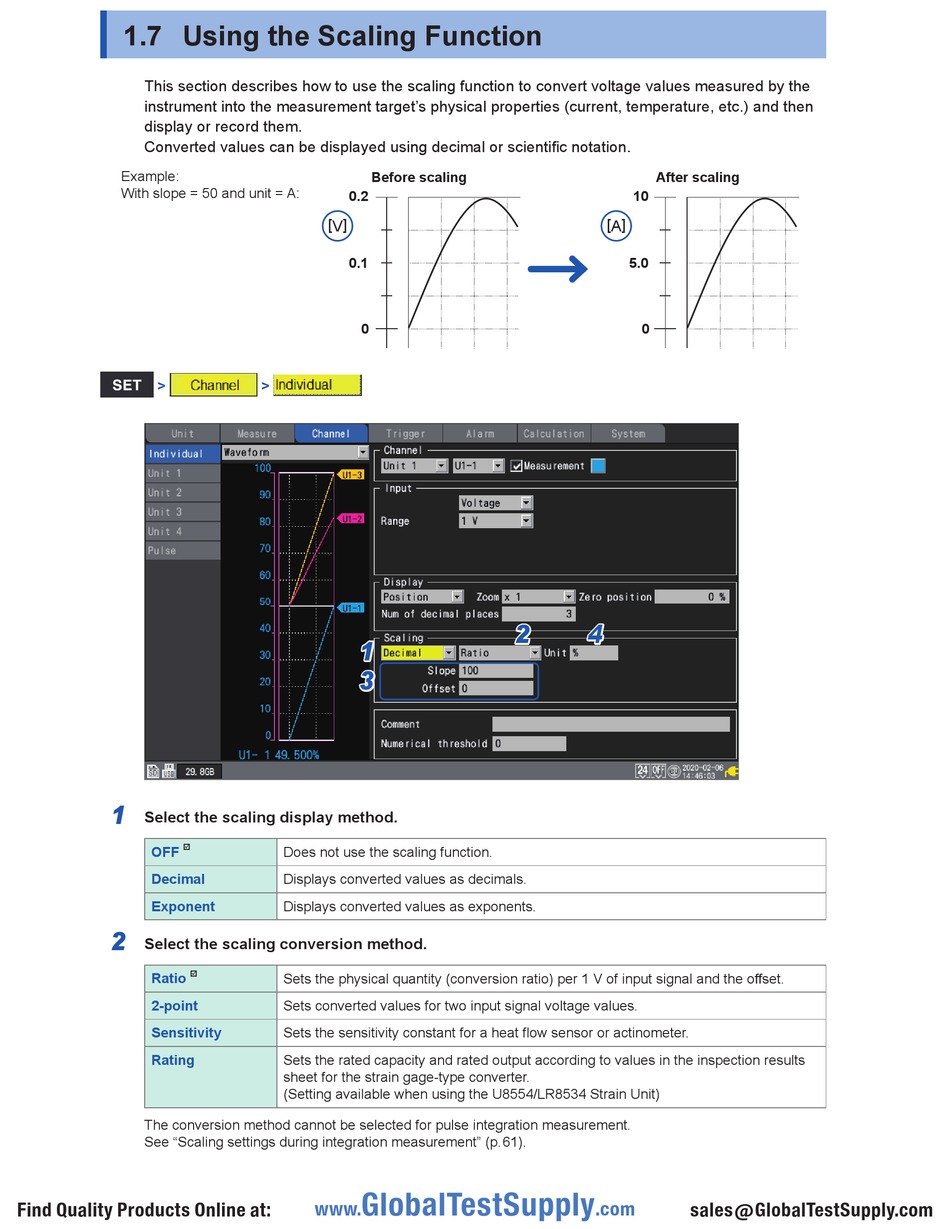

1.7 Using the Scaling Function

This section describes how to use the scaling function to convert voltage values measured by the
instrument into the measurement target's physical properties (current, temperature, etc.) and then
display or record them.
Converted values can be displayed using decimal or scientific notation.
Example:
With slope = 50 and unit = A:
>
1
Select the scaling display method.
OFF

Decimal
Exponent
2
Select the scaling conversion method.
Ratio

2-point
Sensitivity
Rating
The conversion method cannot be selected for pulse integration measurement.
See "Scaling settings during integration measurement" (p. 6 1).
Find Quality Products Online at:
Before scaling
0.2
[ V ]
0.1
0
>
1 1
3 3
Does not use the scaling function.
Displays converted values as decimals.
Displays converted values as exponents.
Sets the physical quantity (conversion ratio) per 1 V of input signal and the offset.
Sets converted values for two input signal voltage values.
Sets the sensitivity constant for a heat flow sensor or actinometer.
Sets the rated capacity and rated output according to values in the inspection results
sheet for the strain gage-type converter.
(Setting available when using the U8554/LR8534 Strain Unit)
GlobalTestSupply
www.
After scaling
10
[ A ]
5.0
0
2 2 4 4
