Noise Countermeasures

Example noise countermeasures

Ensuring devices are grounded reliably
• Ground the instrument and wireless modules reliably.
You can ground the chassis by connecting the AC Adapter's two-prong grounded-type (2-pole)
power cord to an outlet with a grounding electrode.

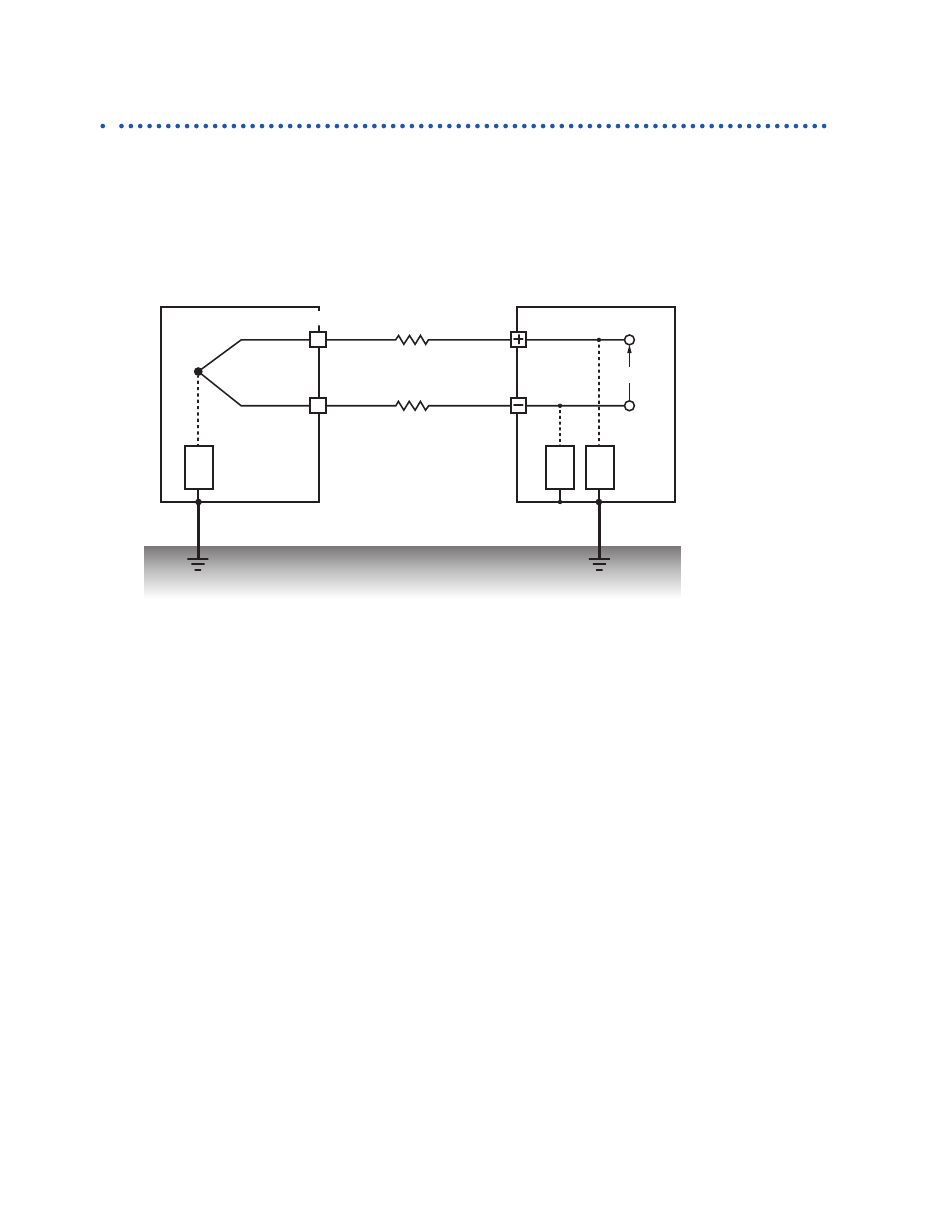

• Ensure the measurement target's chassis is grounded reliably.
Ensure the measurement target's chassis is reliably connected to a suitable ground.
Device under measurement
Z
• Power the instrument and wireless modules with batteries.
You can reduce the effects of common-mode noise by powering the devices with batteries (without
connecting their AC Adapters) so that the earth current loop is eliminated.
Find Quality Products Online at:
Thermocouple
3
GlobalTestSupply
www.
Measurement module
r 1
r 2
Z Z
2 1
.com
V in
