Data That Can Be Saved and Loaded

3.1 Data That Can Be Saved and Loaded

When you save data on an SD Memory Card or a USB Drive, the
[LR8450]
will be created.

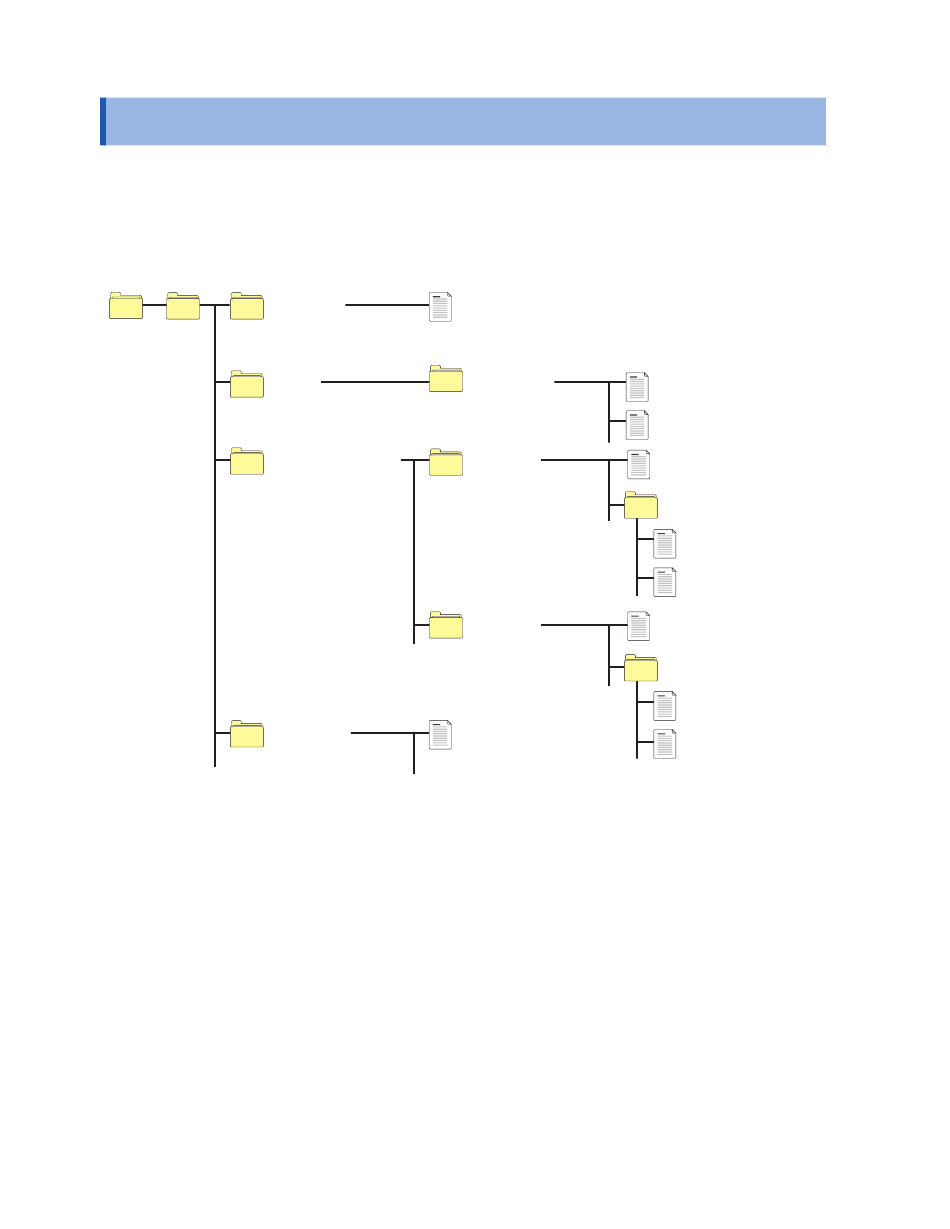

Files are saved in folders as shown in the following diagram:
HIOKI LR8450
*1: When the calculation range is set to
screen, a folder named
point will be saved in the
in the
*2: Created when saving operation is set such that each calculation is saved in its own file.
When saving files without specifying a filename
The following filenames will be used:
• Automatically saved waveform data:
• Automatically saved numerical calculation result: AUTO****.xxx
• Manually saved settings data:
• Manually saved waveform data:
• Manually saved numerical calculation results:
• Manually saved screen image data:
[****] represents a number between 0001 and 9999.
[*****] represents a number between 00001 and 99999.
[.xxx] represents the file's extension (.MEM, .CSV, .TXT).
