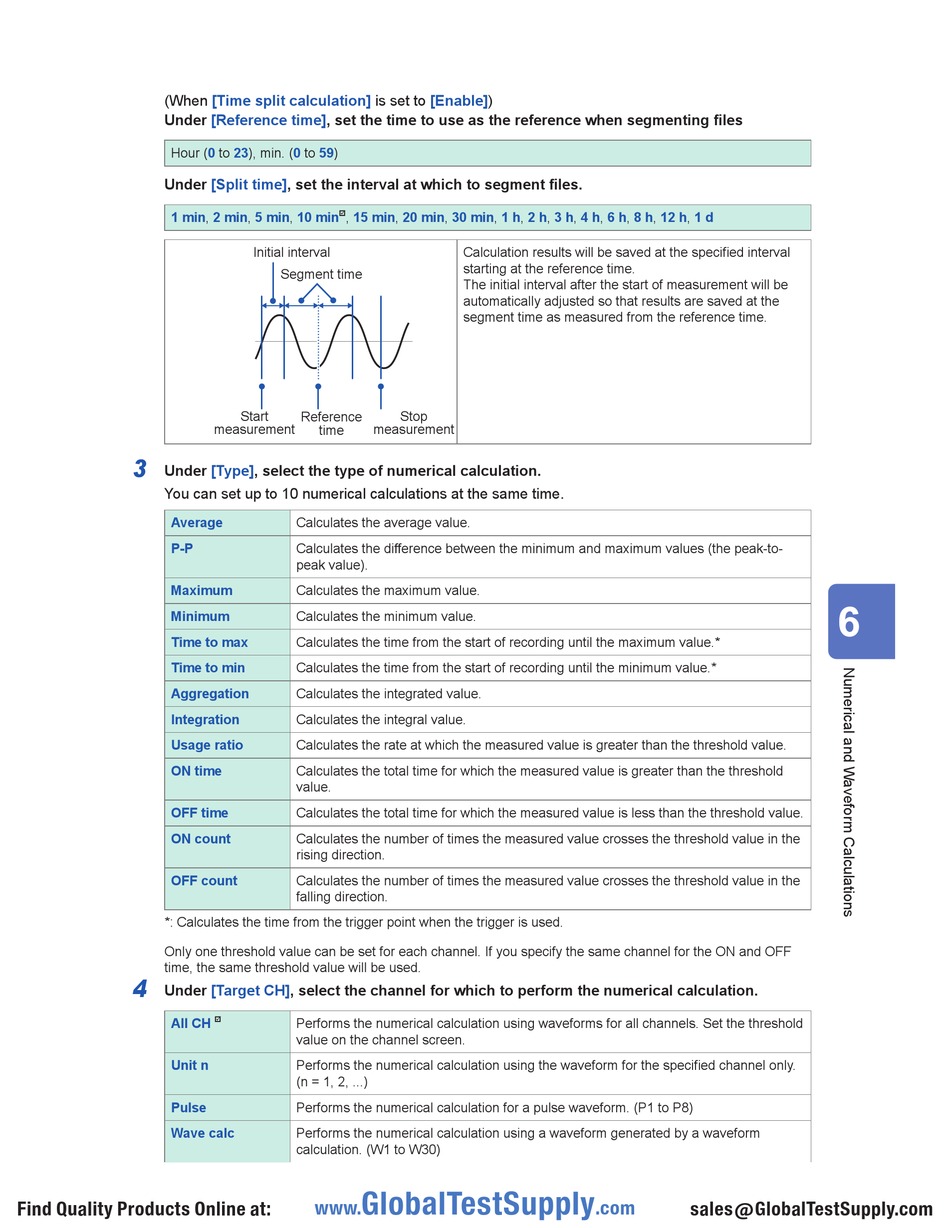

Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 200

Hide thumbs Also See for MEMORY HiLOGGER LR8450:
Table of Contents

Advertisement

(When
Under
Hour
Under
1
min,
3
Under [Type], select the type of numerical calculation.
You can set up to 10 numerical calculations at the same time.
Average
P-P
Maximum
Minimum
Time to max
Time to min
Aggregation
Integration
Usage ratio
ON time
OFF time
ON count
OFF count
*: Calculates the time from the trigger point when the trigger is used.
Only one threshold value can be set for each channel. If you specify the same channel for the ON and OFF
time, the same threshold value will be used.
4
Under
All CH
Unit n
Pulse
Wave calc
Find Quality Products Online at:
[Time split calculation]
is set to [Enable])
[Reference
time], set the time to use as the reference when segmenting files
to 23), min.
to 59)
(0
(0
[Split
time], set the interval at which to segment files.
2
min,
5
min,
10 min
,
15
min,
Initial interval
Segment time
Start
Reference
measurement
measurement
time
Calculates the average value.
Calculates the difference between the minimum and maximum values (the peak-to-
peak value).
Calculates the maximum value.
Calculates the minimum value.
Calculates the time from the start of recording until the maximum value.*
Calculates the time from the start of recording until the minimum value.*
Calculates the integrated value.
Calculates the integral value.
Calculates the rate at which the measured value is greater than the threshold value.
Calculates the total time for which the measured value is greater than the threshold
value.
Calculates the total time for which the measured value is less than the threshold value.
Calculates the number of times the measured value crosses the threshold value in the
rising direction.
Calculates the number of times the measured value crosses the threshold value in the
falling direction.
[Target
CH], select the channel for which to perform the numerical calculation.
Performs the numerical calculation using waveforms for all channels. Set the threshold
value on the channel screen.
Performs the numerical calculation using the waveform for the specified channel only.
(n = 1, 2, ...)
Performs the numerical calculation for a pulse waveform. (P1 to P8)
Performs the numerical calculation using a waveform generated by a waveform
calculation. (W1 to W30)
GlobalTestSupply
www.
20
min,
30
min,
1
h,
2
h,
3
h,
Calculation results will be saved at the specified interval
starting at the reference time.
The initial interval after the start of measurement will be
automatically adjusted so that results are saved at the
segment time as measured from the reference time.
Stop
4
h,
6
h,
8
h,
12
h,
1 d
