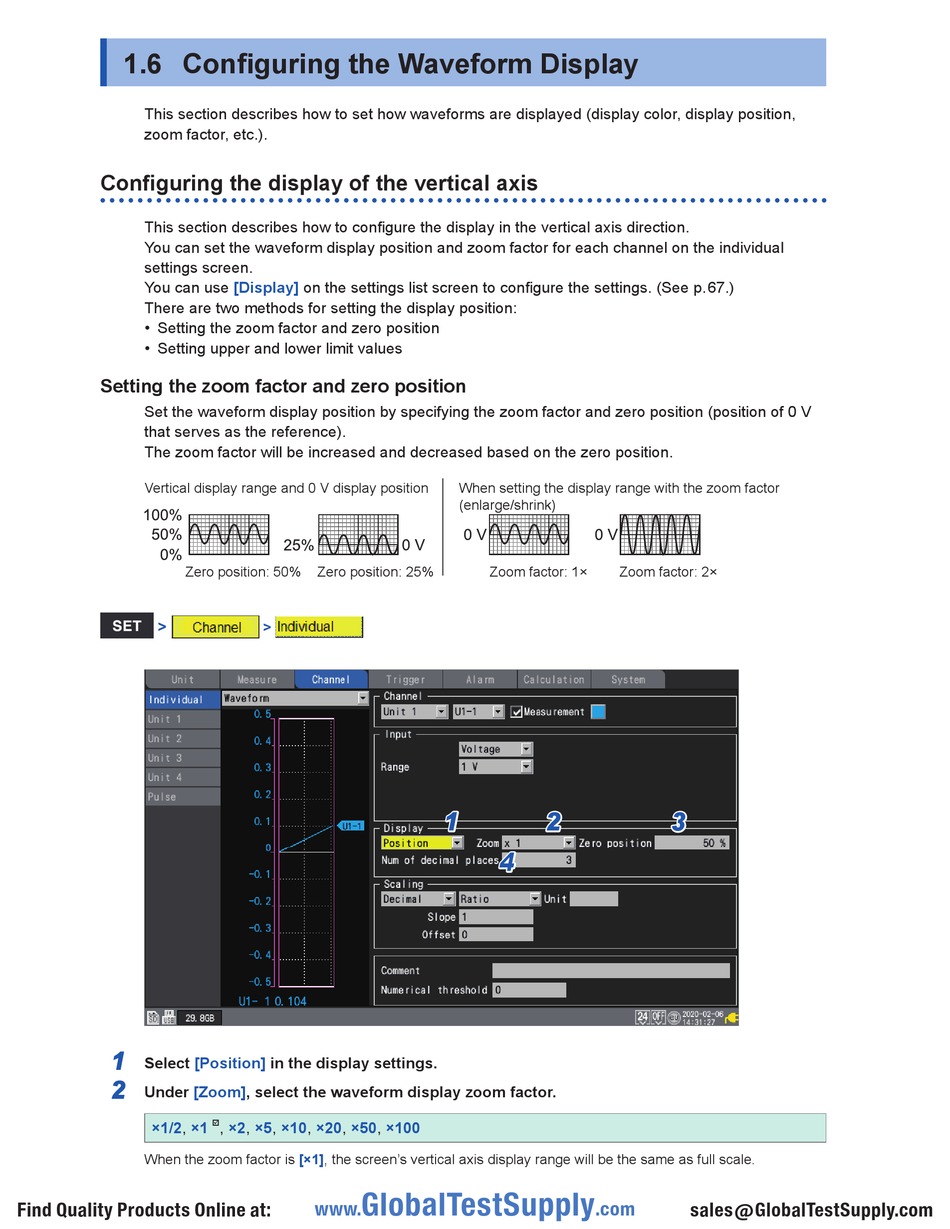

1.6 Configuring the Waveform Display

This section describes how to set how waveforms are displayed (display color, display position,
zoom factor, etc.).

Configuring the display of the vertical axis

This section describes how to configure the display in the vertical axis direction.
You can set the waveform display position and zoom factor for each channel on the individual
settings screen.
You can use
There are two methods for setting the display position:
• Setting the zoom factor and zero position
• Setting upper and lower limit values
Setting the zoom factor and zero position
Set the waveform display position by specifying the zoom factor and zero position (position of 0 V
that serves as the reference).
The zoom factor will be increased and decreased based on the zero position.
Vertical display range and 0 V display position
Zero position: 50%
>
1
Select [Position]
2
Under [Zoom], select the waveform display zoom factor.
×1/2, ×1
When the zoom factor is [×1], the screen's vertical axis display range will be the same as full scale.
Find Quality Products Online at:
[Display]
on the settings list screen to configure the settings. (See p. 6 7.)
Zero position: 25%
>
in the display settings.
, ×2, ×5, ×10, ×20, ×50, ×100

GlobalTestSupply
www.
When setting the display range with the zoom factor
(enlarge/shrink)
Zoom factor: 1× Zoom factor: 2×
1 1 2 2
4 4
.com
3 3
