Gage (scale) display

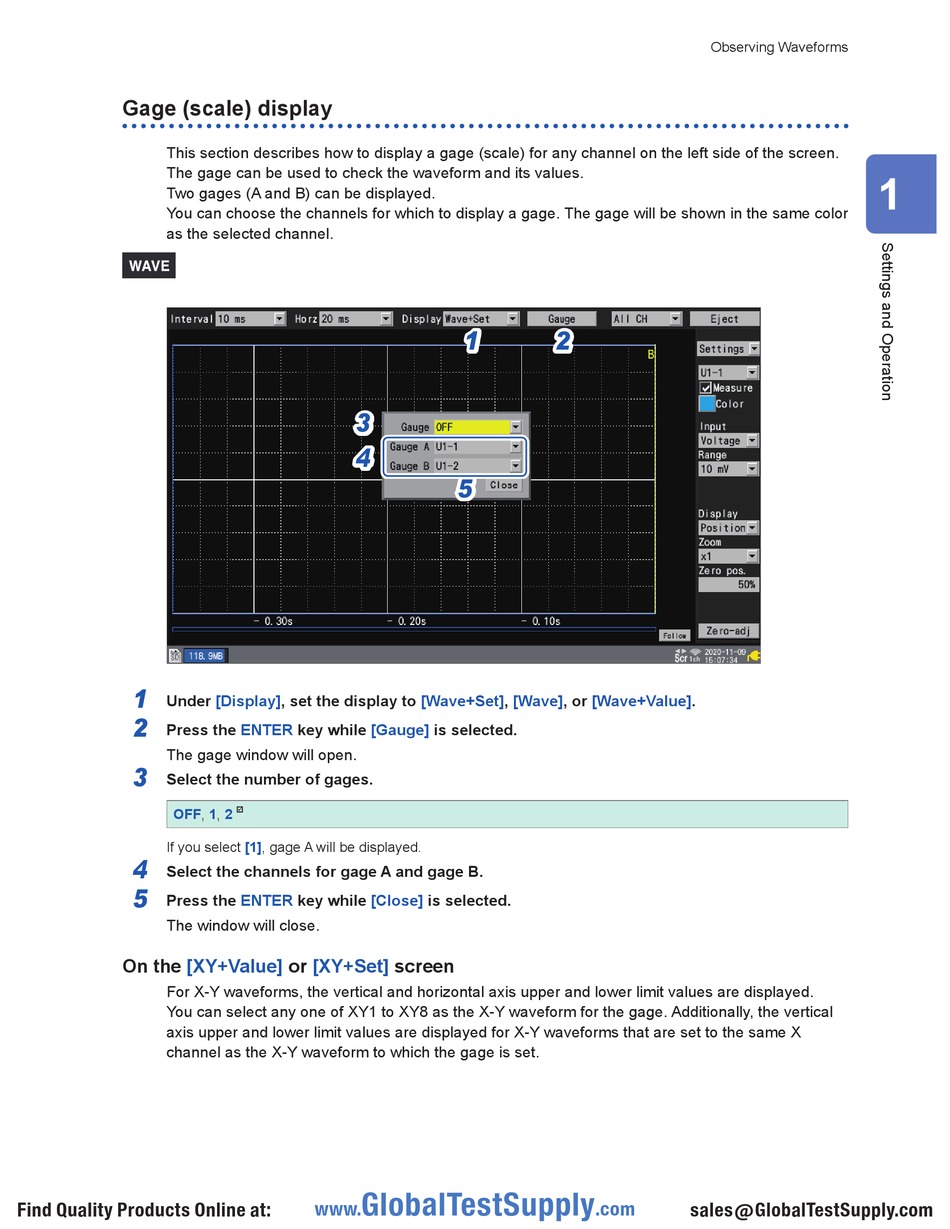

This section describes how to display a gage (scale) for any channel on the left side of the screen.
The gage can be used to check the waveform and its values.
Two gages (A and B) can be displayed.
You can choose the channels for which to display a gage. The gage will be shown in the same color
as the selected channel.
1
Under [Display], set the display to [Wave+Set], [Wave], or [Wave+Value].
2
Press the
The gage window will open.
3
Select the number of gages.
OFF, 1,
If you select [1], gage A will be displayed.
4
Select the channels for gage A and gage B.
5
Press the
The window will close.
On the [XY+Value]
For X-Y waveforms, the vertical and horizontal axis upper and lower limit values are displayed.
You can select any one of XY1 to XY8 as the X-Y waveform for the gage. Additionally, the vertical
axis upper and lower limit values are displayed for X-Y waveforms that are set to the same X
channel as the X-Y waveform to which the gage is set.
