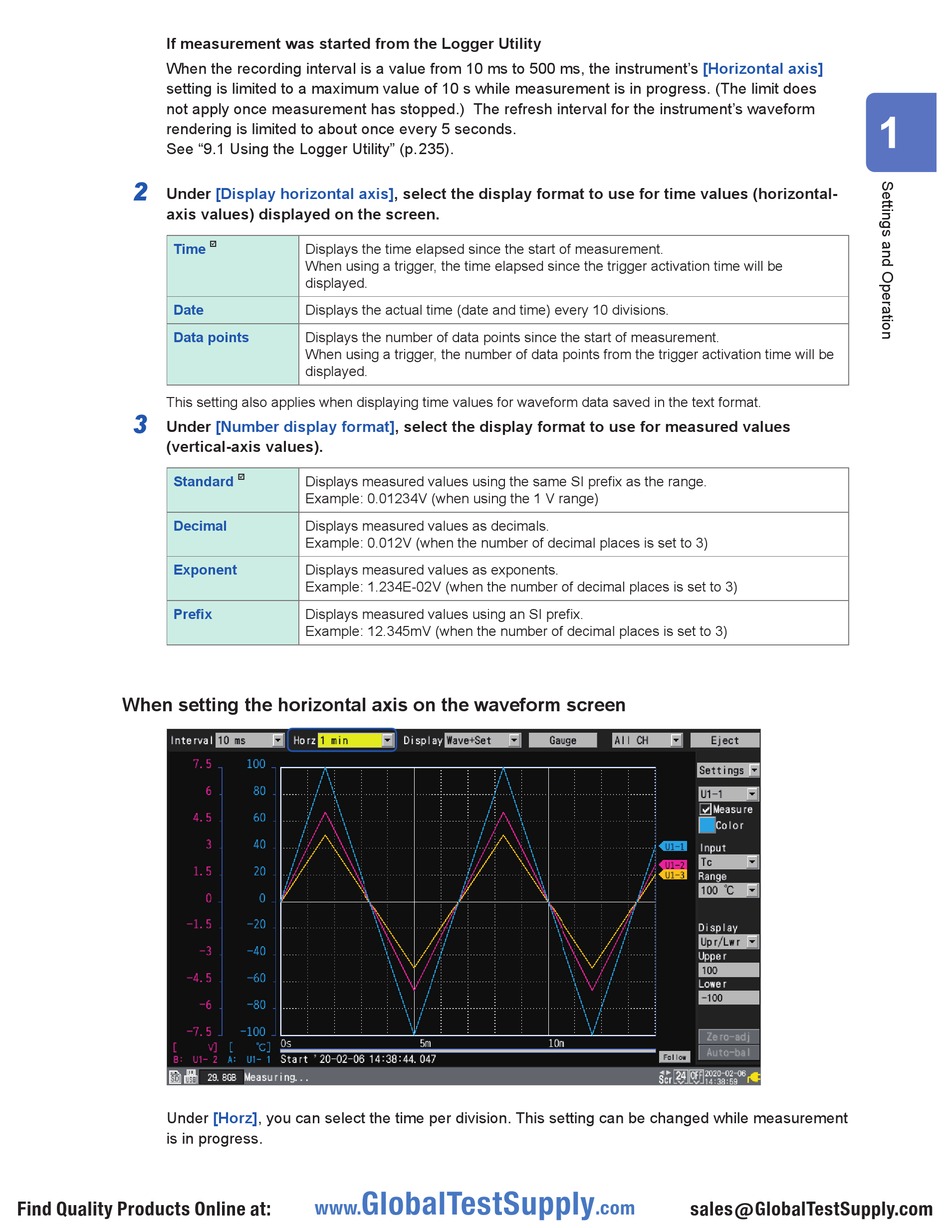

Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 62

If measurement was started from the Logger Utility
When the recording interval is a value from 10 ms to 500 ms, the instrument's
setting is limited to a maximum value of 10 s while measurement is in progress. (The limit does
not apply once measurement has stopped.) The refresh interval for the instrument's waveform
rendering is limited to about once every 5 seconds.
See "9.1 Using the Logger Utility" (p. 2 35).
2
Under
axis values) displayed on the screen.
Time
Date
Data points
This setting also applies when displaying time values for waveform data saved in the text format.
3
Under
(vertical-axis values).
Standard
Decimal
Exponent
Prefix
When setting the horizontal axis on the waveform screen
Under [Horz], you can select the time per division. This setting can be changed while measurement
is in progress.
Find Quality Products Online at:
[Display horizontal axis], select the display format to use for time values (horizontal-
Displays the time elapsed since the start of measurement.

When using a trigger, the time elapsed since the trigger activation time will be
displayed.
Displays the actual time (date and time) every 10 divisions.
Displays the number of data points since the start of measurement.
When using a trigger, the number of data points from the trigger activation time will be
displayed.
[Number display format], select the display format to use for measured values
 Displays measured values using the same SI prefix as the range.
Example: 0.01234V (when using the 1 V range)
Displays measured values as decimals.
Example: 0.012V (when the number of decimal places is set to 3)
Displays measured values as exponents.
Example: 1.234E-02V (when the number of decimal places is set to 3)
Displays measured values using an SI prefix.
Example: 12.345mV (when the number of decimal places is set to 3)
