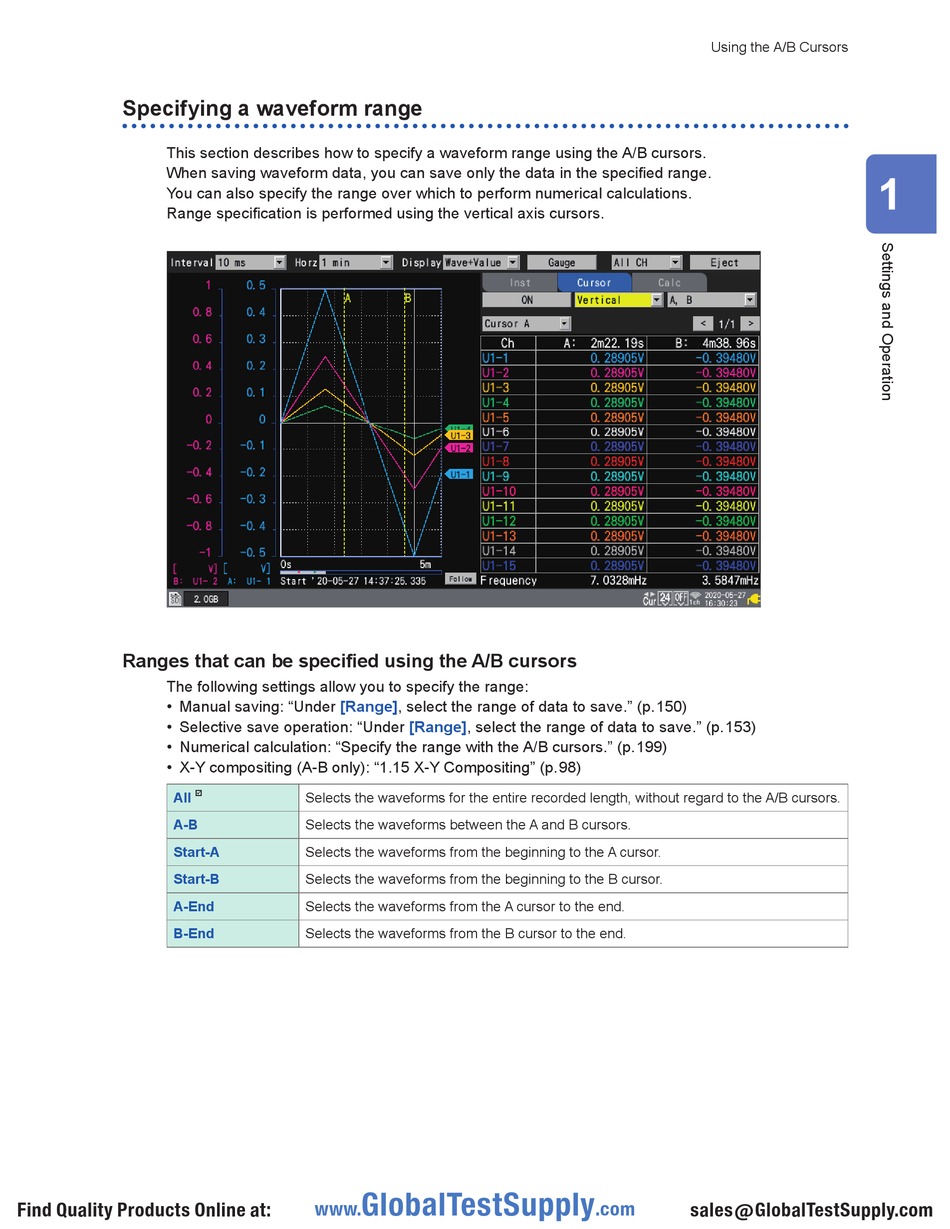

Specifying a waveform range

This section describes how to specify a waveform range using the A/B cursors.
When saving waveform data, you can save only the data in the specified range.
You can also specify the range over which to perform numerical calculations.
Range specification is performed using the vertical axis cursors.
Ranges that can be specified using the A/B cursors
The following settings allow you to specify the range:
• Manual saving: "Under [Range], select the range of data to save." (p. 1 50)
• Selective save operation: "Under [Range], select the range of data to save." (p. 1 53)
• Numerical calculation: "Specify the range with the A/B cursors." (p. 1 99)
• X-Y compositing (A-B only): "1.15 X-Y Compositing" (p. 9 8)
All

A-B
Start-A
Start-B
A-End
B-End
Find Quality Products Online at:
Selects the waveforms for the entire recorded length, without regard to the A/B cursors.
Selects the waveforms between the A and B cursors.
Selects the waveforms from the beginning to the A cursor.
Selects the waveforms from the beginning to the B cursor.
Selects the waveforms from the A cursor to the end.
Selects the waveforms from the B cursor to the end.
