Wireless data logging at 1 ms

3 3 0 - c h a n n e l p o r t a b l e l o g g e r a v a i l a b l e w i t h

y o u r c h o i c e o f p l u g - i n u n i t s a n d w i r e l e s s u n i t s

Voltage

1 ms sampling

ES France - Département Tests & Mesures - 127 rue de Buzenval BP 26 - 92380 Garches

Tél. 01 47 95 99 45 - Fax. 01 47 01 16 22 - e-mail: tem@es-france.com - Site Web: www.es-france.com

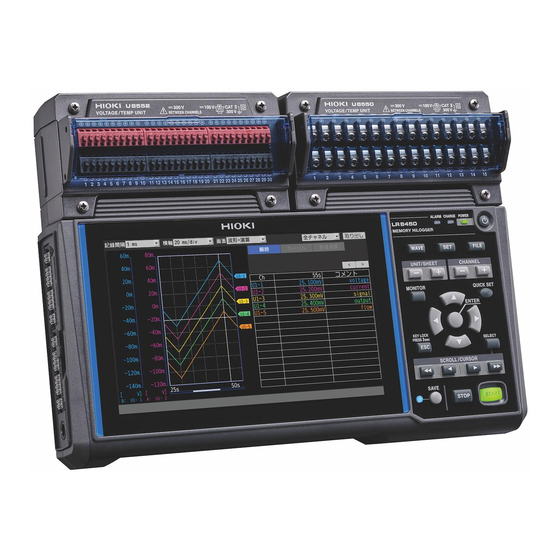

MEMORY HiLOGGER LR8450

Strain

Temperature

10 ms sampling

1 ms sampling

Humidity

Resistance

10 ms sampling

Need help?

Do you have a question about the LR8450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hioki LR8450

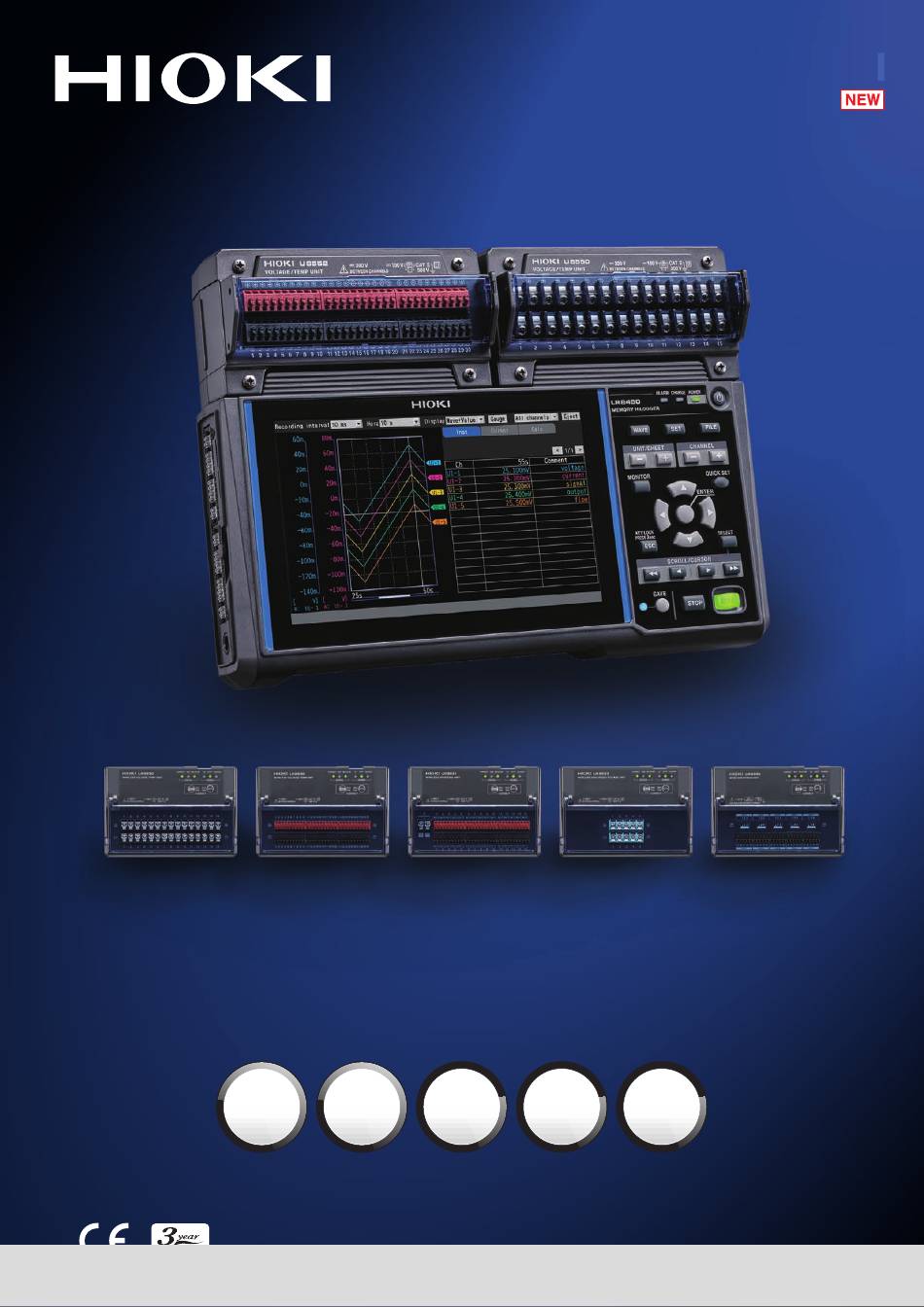

Page 1 MEMORY HiLOGGER LR8450 Wireless data logging at 1 ms 3 3 0 - c h a n n e l p o r t a b l e l o g g e r a v a i l a b l e w i t h...
Page 2 Two models: Standard Model and Wireless LAN Model Standard model (designed for use with plug-in units only) LR8450 You can add up to 4 plug-in units and provide 120 channels of measurement Configuration example: 120 channels Plug-in units VOLTAGE/TEMP UNIT U8552 × 4 Each VOLTAGE/TEMP UNIT U8552 accepts 30 channels of input.
Page 3 Wireless LAN model Add channels freely via either plug-in or wireless units Can also be used exclusively with wireless units. Wireless LAN model LR8450-01 Add up to 7 wireless units in total for a maximum of 330 channels Configuration example: 330 channels...
Page 4 Voltage measurement Measure outputs from a pressure sensor and other sensors at 1 ms max. sampling rate. 1 ms sampling is very suitable to record outputs of several tens of Hertz from pressure sensors and vibration sensors. Test hydraulic equipment HIGH SPEED VOLTAGE UNIT U8553 WIRELESS HIGH SPEED VOLTAGE UNIT LR8533 Road test automobiles...
Page 5 Previous models were incapable of measuring temperature accurately in noisy environments due to the influence of high frequencies, which caused values to shift or fluctuate significantly. The LR8450 uses a revamped design to dramatically reduce the influence of high-frequency noise.
Page 6 Up to 30 m* (line-of-sight) * If the LR8450-01 or the wireless unit is placed on the floor Install wireless units in testing equipment or ground, the communication distance may be shortened. Peace of mind in the event of an interruption in power or wireless connectivity Peace of mind if communications are temporarily interrupted Buffer memory holds up to 5 min.*...
Page 7 Observe data from a remote location using a PC or a tablet By connecting the LR8450-01 to a PC or a tablet via wireless LAN, you can control the instrument remotely using the built-in HTTP server or obtain download data files using the built-in FTP server.
Page 8 Pulse signal 24 V In "Revolve" mode, monitor production equipment by The LR8450/LR8450-01 provides two output terminals for volt- measuring the variations in revolution speed of motors ages, each of which can supply 100 mA current, eliminating the or drills. In "Count" mode, identify operation status by need for a separate sensor power supply.
Page 9 In addition to the maximum and minimum value calcula- Calculate data while measurement con- Peak-to-peak value tion functions provided by previous models, the LR8450/ tinues and display calculated waveforms Aggregation Maximum value LR8450-01 offers an extensive range of calculations, in real time.
Page 10 10 ms or greater. Collect data using GENNECT Logger Utility For an up-to-date list of products supported by GENNECT One, see Hioki’s website. Remote control (HTTP) Control instruments remotely and change settings from a LAN-connected PC. Automatic file transfer (FTP)
Page 11 Specifications LAN func- Configuring settings and controlling recording using communica- LR8450, LR8450-01 Memory HiLogger interface tionality: tions commands General specifications, Basic specifications Manually acquiring data using the FTP server Acquiring files from a Product warranty period 3 years connected SD Memory Card or USB Drive...
Page 12 SD memory card/USB drive (user-selectable) 5 ms and low-pass filter of 120 Hz). destinations (Only storage media sold by HIOKI are guaranteed for operation) *2: When the radio-wave state is in good condition, 1s. File names Up to 8 single-byte characters...
Page 13 Other functionality separate measurement files while recording continues.) Even mark function Number of inputs Up to 1000 inputs per measurement * Real-time measurement on the LR8450, LR8450-01 is possible with a recording interval of 10 ms or more. Waveform search Search waveforms and display target location in center of waveform screen.
Page 14 Analog input specifications Auto-connect function Available (23 ±5˚C/73 ±9˚F, 80% rh or less, after 30 minutes of warm-up and zero-adjustment, with Accessories Z3230 Wireless LAN Adapter, user manual, Z1008 AC Adapter, the 50 Hz/60 Hz cut-off setting selected) mounting plate, M3×4 screw × 2 (for use with mounting plate), wiring confirmation label (LR8534 only) Voltage Z3230 wireless specifi-...
Page 15 Analog input specifications Other specifications about thermocouple measurement (23 ±5˚C/73 ±9˚F, 80% rh or less, after 30 minutes of warm-up and zero-adjustment, with Reference junction compen- At INT RJC, total accuracy = add ± 0.5˚C the 50 Hz/60 Hz cut-off setting selected) sation: Internal/external Measurement Range...
Page 16 5 m (16.41 ft) length Storage media *Always use HIOKI optional storage media. Proper operation is not guaranteed when using storage media from other manufacturers, and may prevent the prod- uct from saving and loading data properly. SD memory card Z4001...
