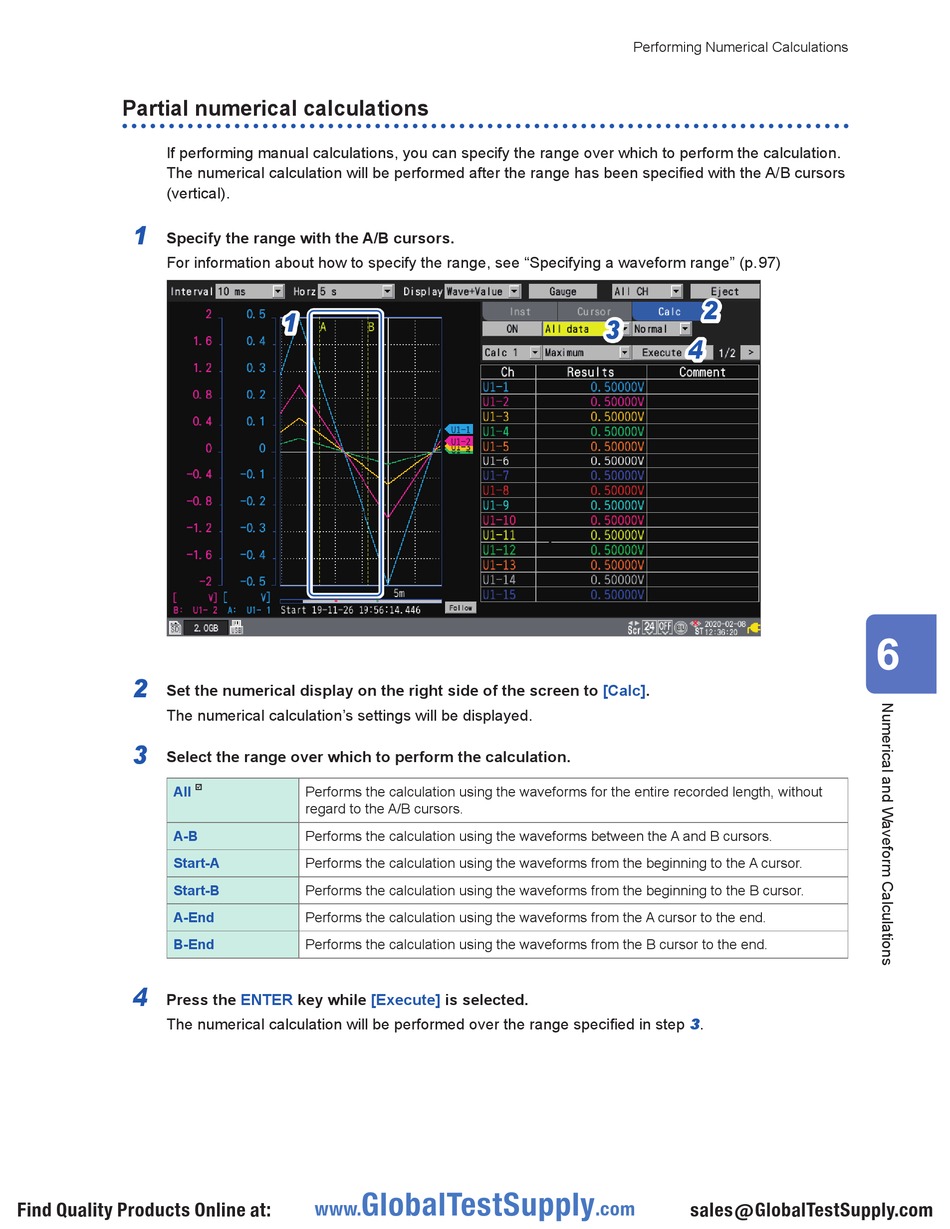

Partial numerical calculations

If performing manual calculations, you can specify the range over which to perform the calculation.
The numerical calculation will be performed after the range has been specified with the A/B cursors
(vertical).
1
Specify the range with the A/B cursors.
For information about how to specify the range, see "Specifying a waveform range" (p. 9 7)
2
Set the numerical display on the right side of the screen to [Calc].
The numerical calculation's settings will be displayed.
3
Select the range over which to perform the calculation.
All

A-B
Start-A
Start-B
A-End
B-End
4
Press the
The numerical calculation will be performed over the range specified in step 3.
