Configuring the Waveform Display

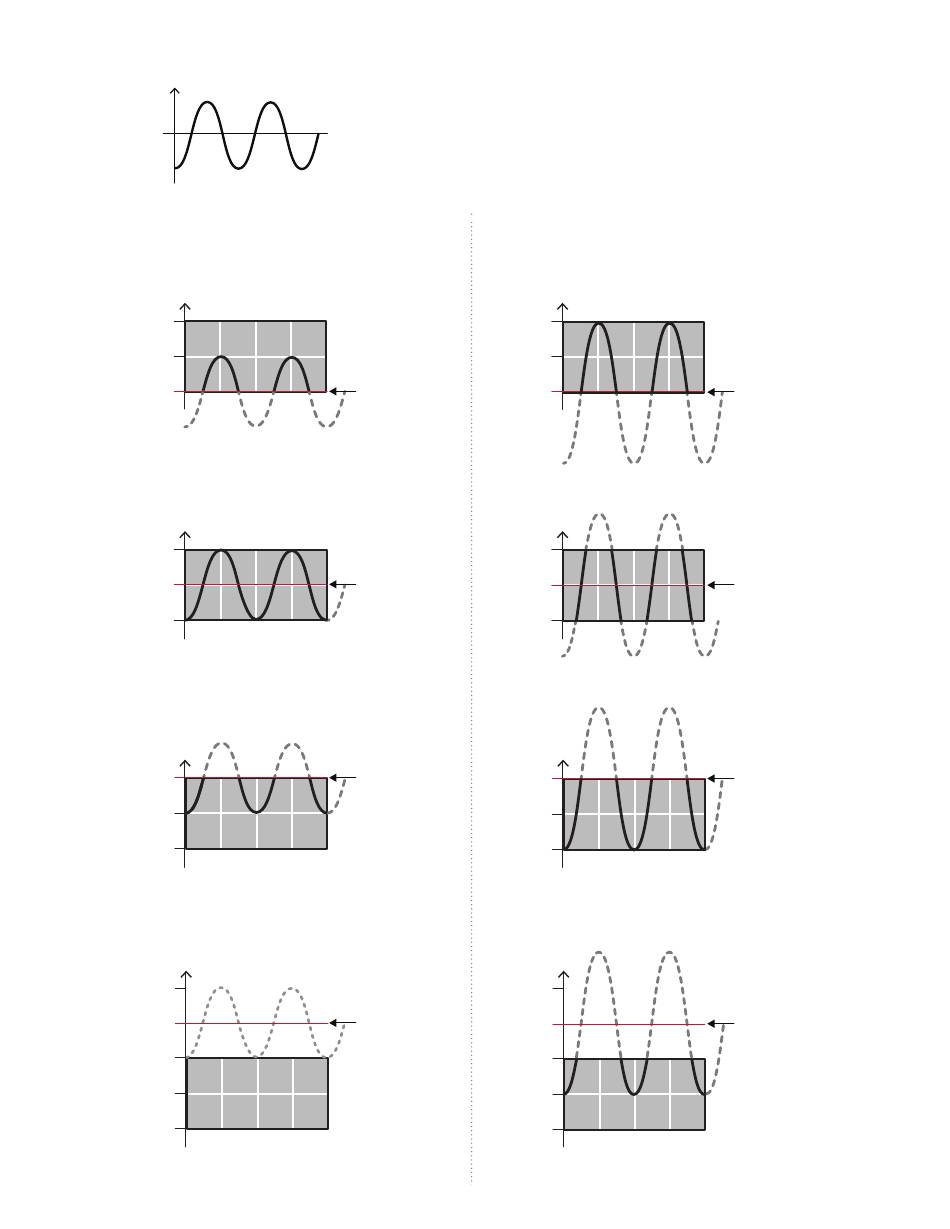

Example: Waveform from −5 V to +5 V
5 V
0 V
−5 V
With voltage axis zoom factor of 1×
Zero position setting range: −50% to 150%
With zero position of 0%
10 V
5 V
0 V
With zero position of 50%
5 V
0 V
−5 V
With zero position of 100%
5 V
0 V
−5 V
−10 V
With zero position of 150%
5 V
0 V
−5 V
−10 V
−15 V
