Aligning Waveforms' Zero Positions - Hioki MEMORY HiLOGGER LR8450 Instruction Manual

Configuring Channels in a List

Aligning waveforms' zero positions

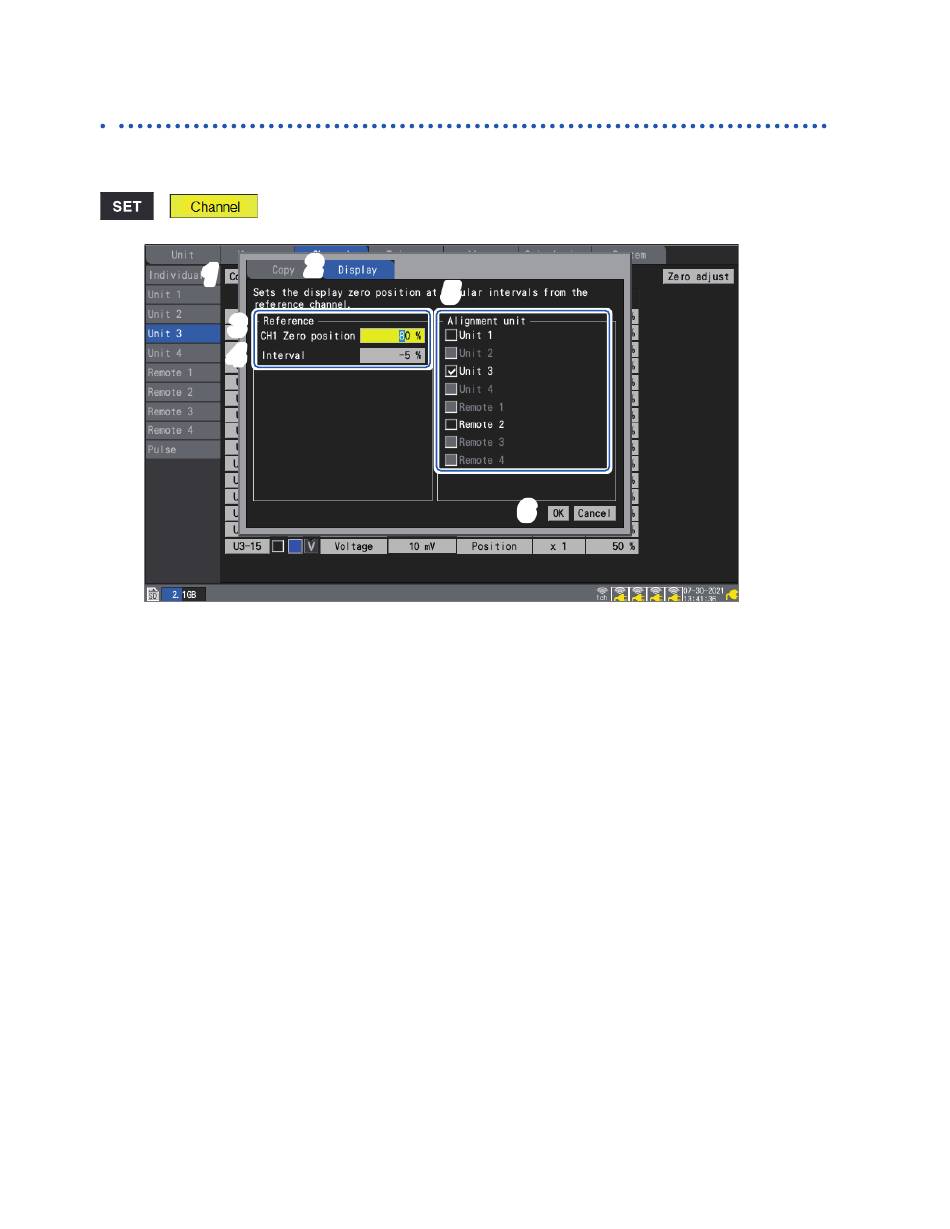

This section describes how to align zero positions for displayed waveforms at a specified interval
based on channel 1 of the sub tab unit.
>
1
Press the
The settings window will open.
2
Using the up and down keys, select the
3
Under [CH1 Zero position]
(CH1).
4
Under [Interval]
5
Under [Alignment
to align.
6
Select [OK]
• Alignment is only valid for the reference channel and channels whose copy destination channel
display setting is [Position].
• The range for the reference channel's zero position varies with the zoom factor.
• If [Interval]
in the negative direction at a set interval; if it's positive, they'll be shifted similarly in the positive
direction.
• Alignment is valid for units with the same number of channels in the same system.
U8550 and LR8530 (Voltage/Temp Units, 15 channels of plug-in and wireless modules)
U8551 and LR8531 (Universal Units, 15 channels of plug-in and wireless modules)
U8552 and LR8532 (Voltage/Temp Units, 30 channels of plug-in and wireless modules)
U8553 and LR8533 (High Speed Voltage Units, 5 channels of plug-in and wireless modules)
U8554 and LR8534 (Strain Units, 5 channels of plug-in and wireless modules)
• If the maximum or minimum value for the zero position is exceeded due to the zoom factor at the
time of alignment, the maximum or minimum value will be used.
