Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 54

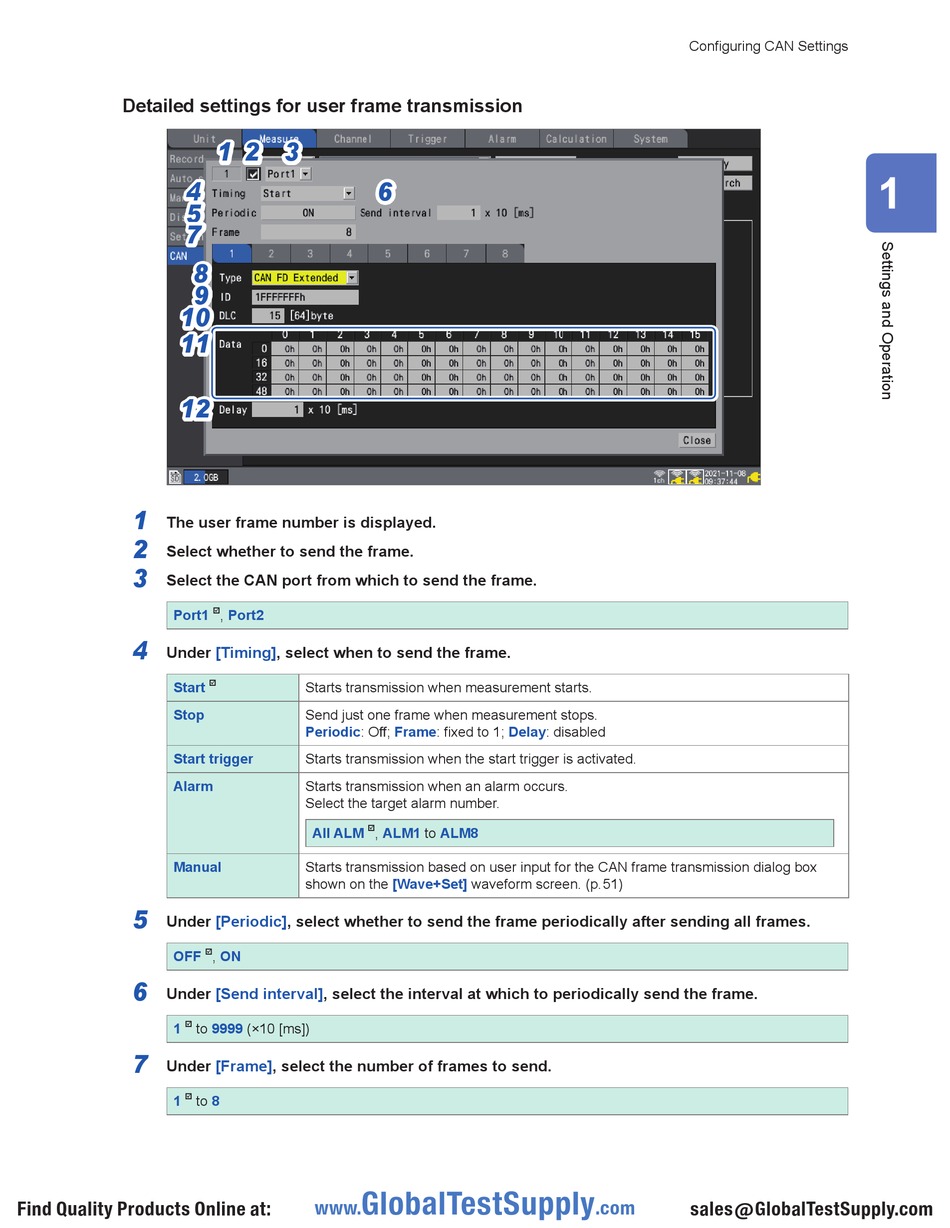

Detailed settings for user frame transmission
4 4
5 5
7 7
8 8
9 9
10 10
11 11
12 12
1
The user frame number is displayed.
2
Select whether to send the frame.
3
Select the CAN port from which to send the frame.
Port1
4
Under [Timing], select when to send the frame.
Start
Stop
Start trigger
Alarm
Manual
5
Under [Periodic], select whether to send the frame periodically after sending all frames.
OFF
6
Under
1 to

7
Under [Frame], select the number of frames to send.
1
 to
Find Quality Products Online at:
1 1 2 2 3 3
6 6
Port2
 ,
 Starts transmission when measurement starts.
Send just one frame when measurement stops.
Periodic: Off; Frame: fixed to 1; Delay: disabled
Starts transmission when the start trigger is activated.
Starts transmission when an alarm occurs.
Select the target alarm number.
All ALM , ALM1

Starts transmission based on user input for the CAN frame transmission dialog box
shown on the
 , ON
[Send interval], select the interval at which to periodically send the frame.
9999 (×10 [ms])
8
GlobalTestSupply
www.
to ALM8
[Wave+Set] waveform screen. (p. 5 1)
Configuring CAN Settings
