X-Y Compositing

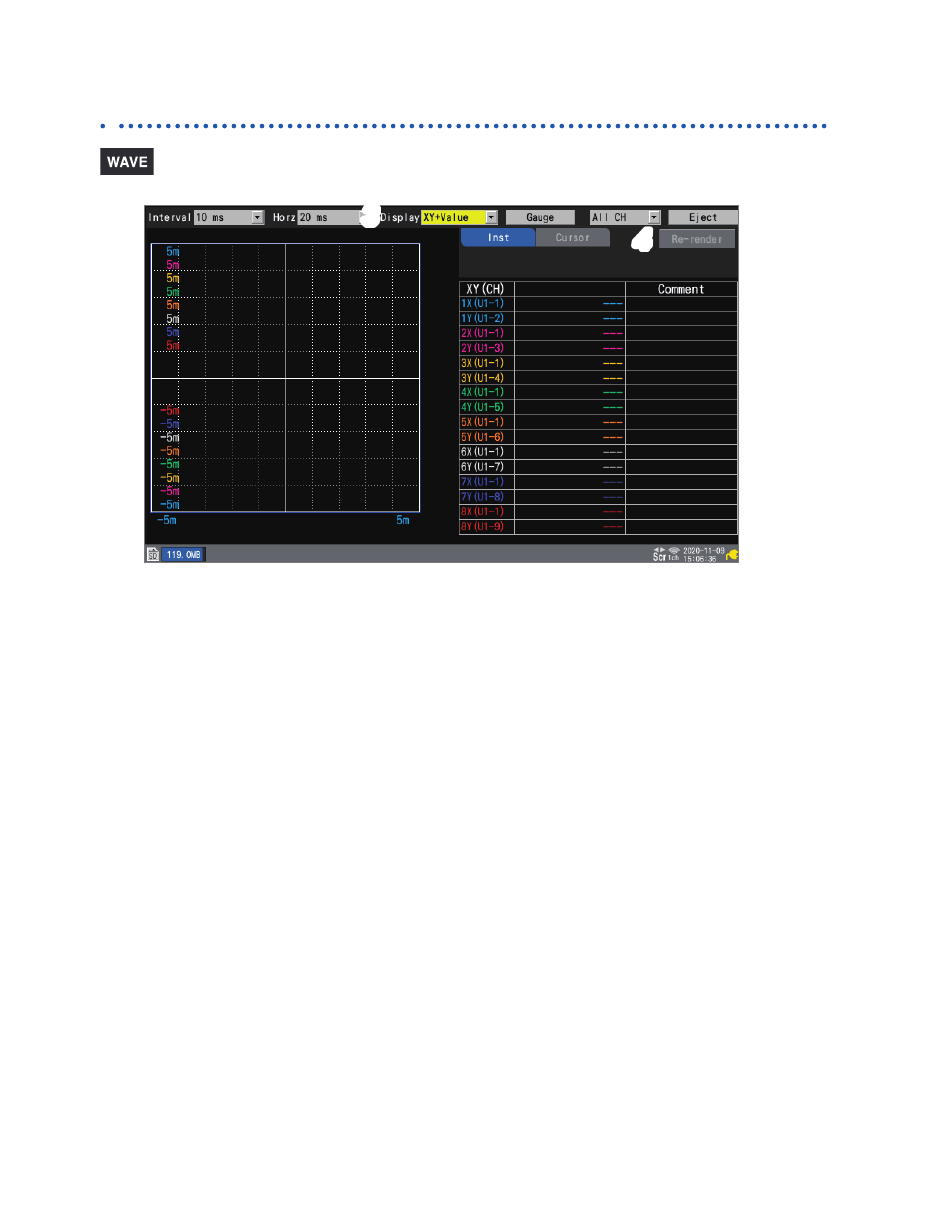

Performing X-Y compositing after measurement
1
Prepare the measurement data.
2
Enable the X-Y compositing function on the settings screen and configure the settings as
necessary (p. 9 8).
3
Under [Display], set the display to
4
Press the
This button is disabled during measurement.
Find Quality Products Online at:
3
3
ENTER
key while
[Re-render]
GlobalTestSupply
www.
[XY+Set]
or [XY+Value].
is selected.
