Configuring Alarm Output (ALARM)

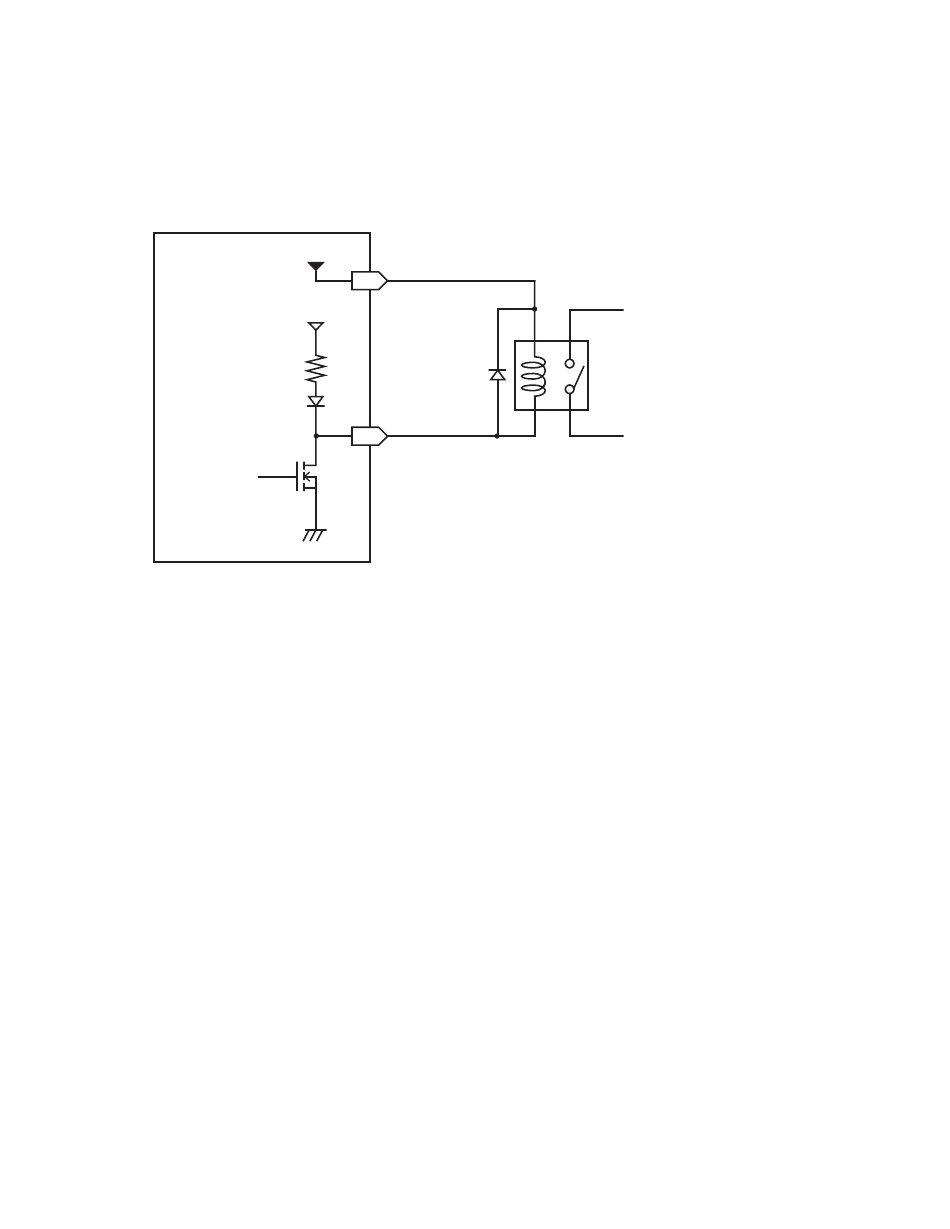

Alarm output terminal circuit diagram and example connection
Select the relay with the contact configuration to perform the desired operation.
The example connection illustrates a circuit in which the relay will operate when the alarm output is
low.
Find Quality Products Online at:
Instrument
VOUTPUT
Max. 100 mA
5 V DC
Ω
10 k
ALARM
Max. 200 mA
GND
GlobalTestSupply
www.
Select the appropriate VOUTPUT
voltage for the relay coil's rated voltage.
+
Relay
.com
