Introduction

To obtain maximum performance from the product please read this manual first, and keep it handy for future reference.

Inspection/Maintenance

When you receive the product, inspect it carefully to ensure that no damage occurred during shipping. If damage is evident, or if it fails to operate according to the specifications, contact your authorized Hioki distributor or reseller.

Preliminary checks

Before using the product, ensure that the insulation on the probes are not damaged and conductors are not exposed. Using the product in such conditions could cause an electric shock, so contact your authorized Hioki distributor or reseller for repair.

Maintenance and service

Never use cleaning agents containing benzene, alcohol, acetone, ether, ketones, thinners or gasoline. These can deform and discolor the case.

To clean the product, wipe it gently with a soft cloth moistened with water or mild detergent.
If the product seems to be malfunctioning, contact your authorized Hioki distributor or reseller. Pack the product so that it will not get damaged during shipping, and include a description of existing damages. Hioki cannot be responsible for damage that occurs during shipment.

Disposal
Handle and dispose of the product in accordance with local regulations.

Operating Precautions

Installing the product in inappropriate locations may cause the probe to malfunction or lead to accidents. Please do not install in the following locations. For details on the operating temperature and humidity, see the specifications.

Exposed to direct sunlight or high temperatures
Exposed to corrosive or combustible gases
Exposed to strong electromagnetic fields or electrostatic charges
Near induction heating systems (such as highfrequency induction heating systems and IH cooking equipment)
Susceptible to vibration
Exposed to water, oil, chemicals, or solvents
Exposed to high humidity or condensation
Exposed to high quantities of dust particles

warning The ends of the probes are sharp. Be careful to avoid injury.
To prevent probe damage, do not step on probes or pinch them between other objects. Do not bend or pull on probes at their base.

Safety Information

Before using the product, be certain to carefully read the following safety notes.

Customers are not allowed to modify, disassemble, or repair the instrument. Failure to observe these precautions may result in fire, electric shock, or injury.
Ensure that the input does not exceed the maximum input voltage or current to avoid product damage resulting from heat building. Excessive voltage and current can cause the product to malfunction.

Mishandling during use could result in injury or death, as well as damage to the product. Be certain that you understand the instructions and precautions in the manual before use.
If persons unfamiliar with electricity measuring product are to use the product, another person familiar with such instruments must supervise operations.

Safety symbols

	Indicates cautions and hazards. When the symbol is printed on the product, refer to a corresponding topic in the Instruction Manual.
	Indicates DC (Direct Current).

Notation
In this manual, the risk seriousness and the hazard levels are classified as follows.

	Indicates a potentially hazardous situation that may result in death or serious injury to the operator.
	Indicates a potentially hazardous situation that may result in minor or moderate injury to the operator or damage to the product or malfunction.
	Indicates information related to the operation of the product or maintenance tasks with which the operators must be fully familiar.
	Indicates a prohibited action.
	Indicates actions which must be performed.

Overview

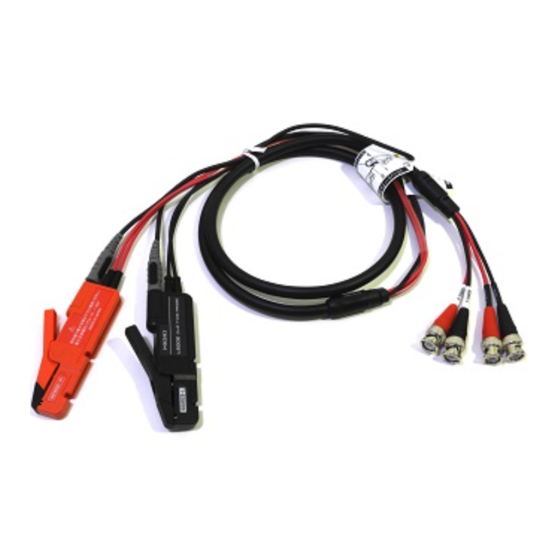

L2002 Clip Type Probes are four-terminal probes suitable for measuring laminate type batteries. The same clipping depth can be always maintained by using a positioning stopper.

Specifications

Measurable frequency range	DC to 1050 Hz
Maximum rated voltage	30 V peak
Maximum rated current	2.5 A peak
Structure	Four-terminal pair connection structure
Length	Approx. 1500 mm (59.06')
Mass	Approx. 220 g (7.8 oz.)
Cable used	50 Coaxial cable
Terminal structure	Gold-plated process Tip shape: spherical surface Used tip pin can be replaced.
Distance between pins	6.3 mm (0.25')
Operating temperature and humidity	Temperature; 0°C to 40°C (32°F to 104°F), Humidity; 80% RH or less (no condensation)
Storage temperature and humidity	Temperature; -10°C to 50°C (14°F to 122°F), Humidity; 80% RH or less (no condensation)
Operating environment	Indoors, Pollution degree 2, altitude up to 2000 m (6562 ft.)
Product warranty period	1 year
Accessories	Return Cable (400 mm) Return Cable (550 mm) Return Cable (800 mm) Instruction Manual

Part Names

Part Names
warning Probe's maximum rating is 30 V, but be careful to avoid exceeding the maximum rating of the measuring instrument.

Return Cable (550 mm) is shipped in a state connected to the instrument.

Accessories

Connection Method

Clean the tip of the tip pin and the surface of the measuring object before zero adjustment and measurement.

Connecting to the instrument

Connecting the return cable

Connect the return cable before measurement.
Adjust the fixed position of the probe so that the return cable between the probes does not sag.

Securely insert the plug of the return cable up to the back of the probe (both red and black).
Arrange the probes so that the distance between the SENSE of the probes is the same as the actual object to be measured with the SENSE of the probes (both red and black) facing inwards.
Adjust the position of the probes such that the return cable between the probes does not sag, and fix by pushing the return cable into the grooves of the probes.

If the measurement is difficult, fixing can be done at the center. However, effectiveness of noise cancellation will reduce. (The return cable is indicated black in the illustration.)

When viewed from the bottom

When viewed from the bottom
Use a cable of suitable length for the distance between the terminals of the measuring object from the three types of accessory cables.

Return cable length	Distance between the terminals of the measuring object
400 mm	100 mm or less
550 mm (mounted before shipment)	100 mm to 250 mm
800 mm	250 mm to 500 mm

Adjustment Method for the Positioning Stopper

If the resistance of the measuring object is low, the contact position of the probes will affect the measured values. A positioning stopper is provided so that clipping can be always achieved at the same depth. Adjust the stopper position for each measuring object.
<Tools to be prepared> One Phillips screwdriver

Loosen the screw holding the stopper with the Phillips screwdriver (Screw size: M2 × 6 mm)
Adjust the stopper position by moving the stopper back and forth and tighten the screw.
The stopper position can be selected from five levels.

Zero Adjustment

Clip the zero adjustment board which is provided with the connection instrument to execute zero adjustment.
Clip with the same width scale as the measuring object, and carry out zero adjustment with the connected instrument.
Zero Adjustment - Step 1

Select scales with the same number of scale divisions to both the HIGH and LOW terminals.
Zero Adjustment - Step 2

Ensure that the return cable between the probes does not sag.

Replacing the Used Tip Pin

Replace the used tip pin with a new one when the tip pin breaks or is worn out. To purchase the tip pin, contact your authorized Hioki distributor or reseller.
<Tools to be prepared> Tip pin, pliers, etc.

Turn off the power to the connected instrument and remove the return cables of the probes.
Grip the tip pin to be replaced with the pliers and pull it out in the upward direction.
Insert a new tip pin in the socket and push it in completely.
Measure a known measuring object to check if the measured value is correct.

Replacing the Rubber

Replace the used rubber with a new one when the rubber is broken or is worn out. To purchase the rubber, contact your authorized Hioki distributor or reseller.
<Tools to be prepared> A pair of tweezers, etc.
Place a pair of tweezers between the rubber and probe. Slide aside the rubber to remove. (Refer to the illustration below.)
Replacing the Rubber

Four-terminal Pair Method

L2002 uses the four-terminal pair method as the measurement method.

Four-terminal pair method

In the four-terminal pair method, the current flows backward (current returns) with the same magnitude as the measuring current in the shields of the SOURCE cables, and then cancels the magnetic field of the measuring current. This method suppresses the induced electromotive force induced at the SENSE terminals, and detects the voltage actually generated in the object being measured.

Four-terminal pair method when using the optional probe
When the L2002 is used, the four-terminal pair method is structured as described below. Vicinity of the measurement object will not entirely be four-terminal pair, and will be affected by an inductive magnetic field. The shape of the return cable should not be changed, and kept away from metals when use. (When there are metals, inductive magnetic field occurs due to eddy current, and leads to measurement errors.)
Four-terminal pair method

Keep the loop area between the return cable and measurement object as small as possible.
Keep the loop shape and wiring position always the same.
Keep away from metals.

When the measurement value fluctuates
Keep the return cable in shape, or the affects of the magnetic field changes and the measurement value may flactuate.
Twist the return cable to keep a fixed shape.
(The return cable is indicated black in the illustration.)
