Measuring Humidity - Hioki MEMORY HiLOGGER LR8450 Instruction Manual

Configuring Input Channels

Measuring humidity

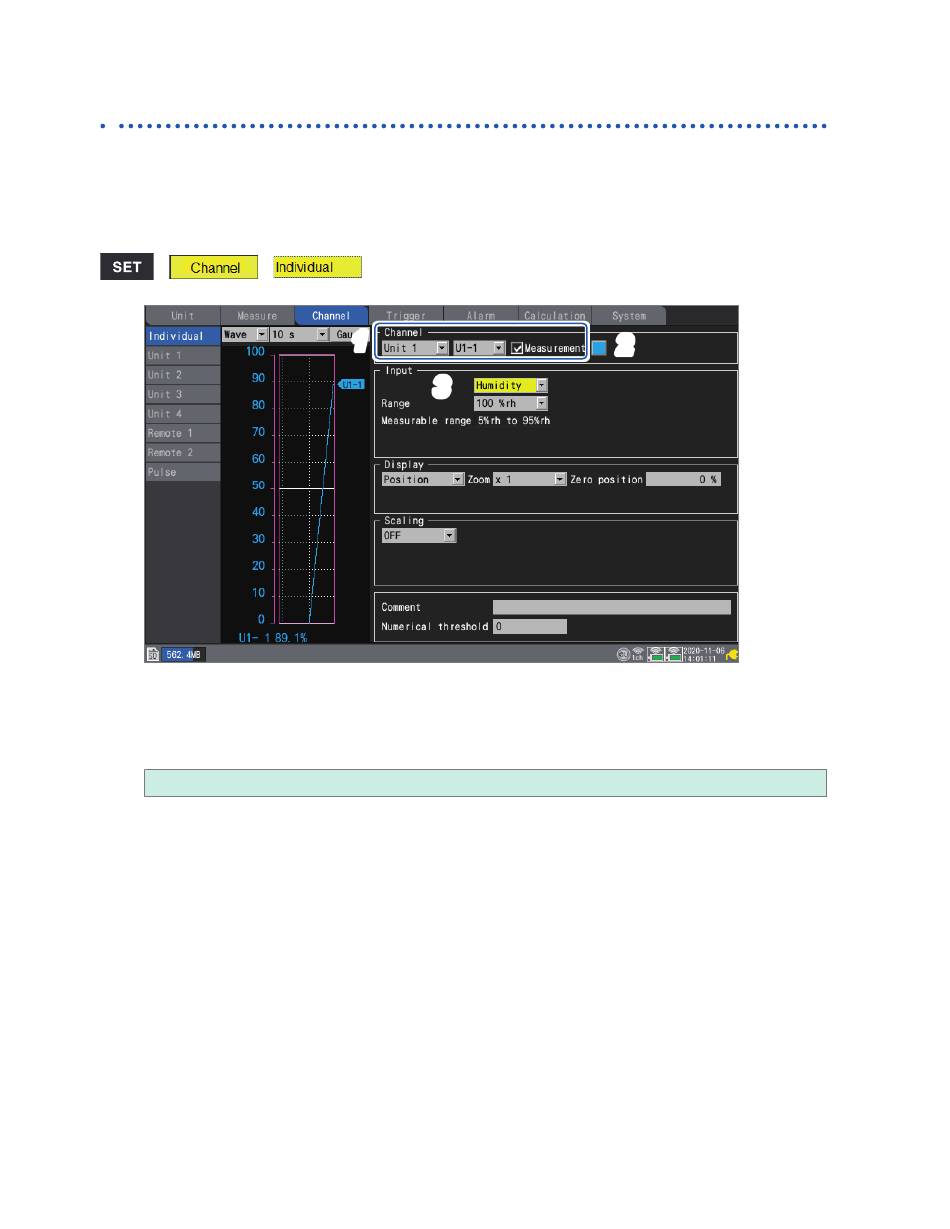

This section describes how to configure settings on the individual settings screen when measuring
humidity with the optional Humidity Sensor.
You can use
Applicable modules: U8550, U8551, U8552, LR8531
Applicable sensor: Z2000 Humidity Sensor
>
1
Select the module (Unit) and channel to configure and select the check box.
Measurement will not be performed for channels whose check boxes are not selected.
2
Select the waveform display color.
× (OFF), 24 colors
Select [×]
screen.
3
Set the input type to [Humidity].
There is no range setting (the setting cannot be changed from the 100% RH range).
The measurable range will appear.
Find Quality Products Online at:
[Input] on the settings list screen to configure the settings. (See p. 6 7.)
>
1 1
if you wish to measure the channel but not to display its waveform or numerical values on the
