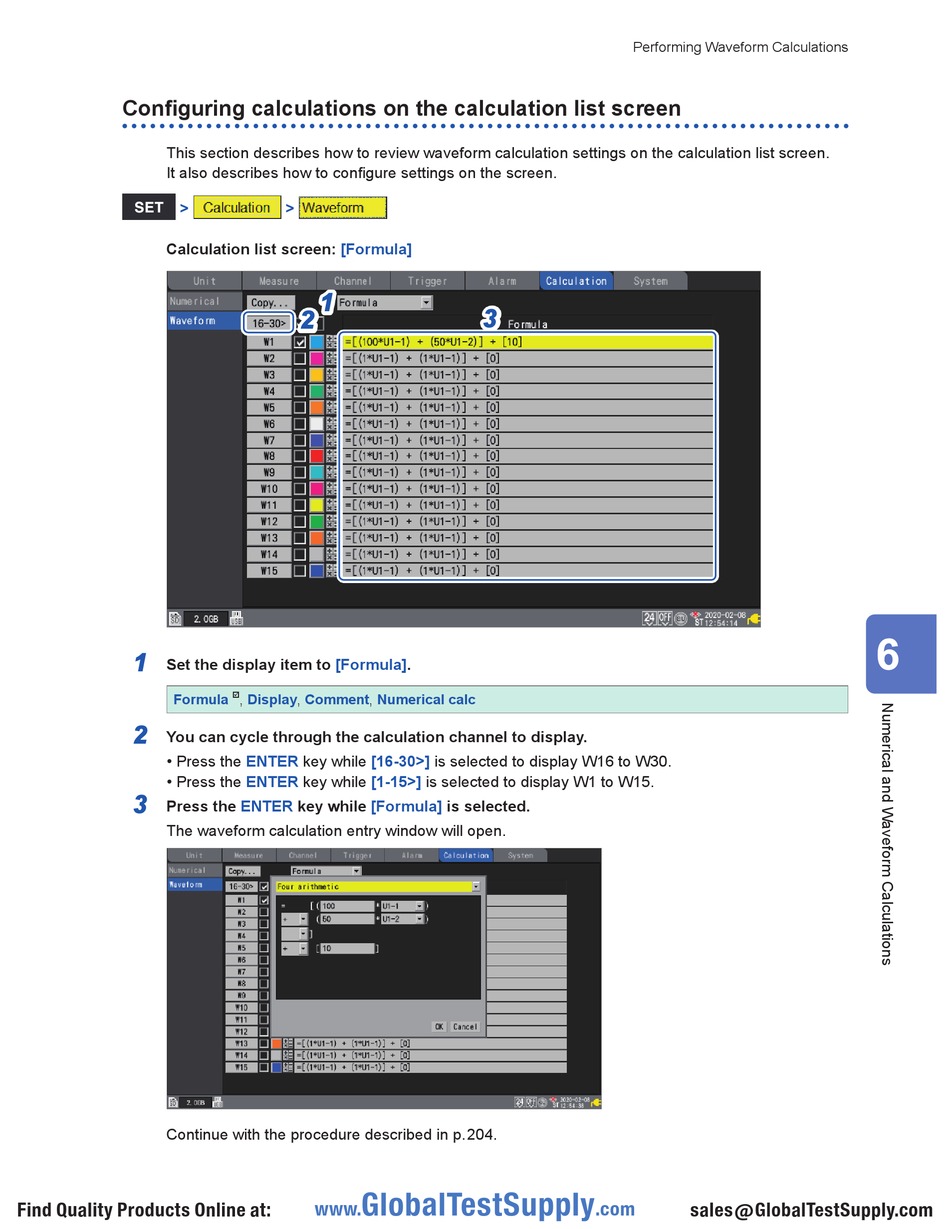

Configuring calculations on the calculation list screen

This section describes how to review waveform calculation settings on the calculation list screen.
It also describes how to configure settings on the screen.
>
Calculation list screen:
1
Set the display item to [Formula].
Formula
2
You can cycle through the calculation channel to display.
• Press the
• Press the
3
Press the
The waveform calculation entry window will open.
Continue with the procedure described in p. 2 04.
