Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 236

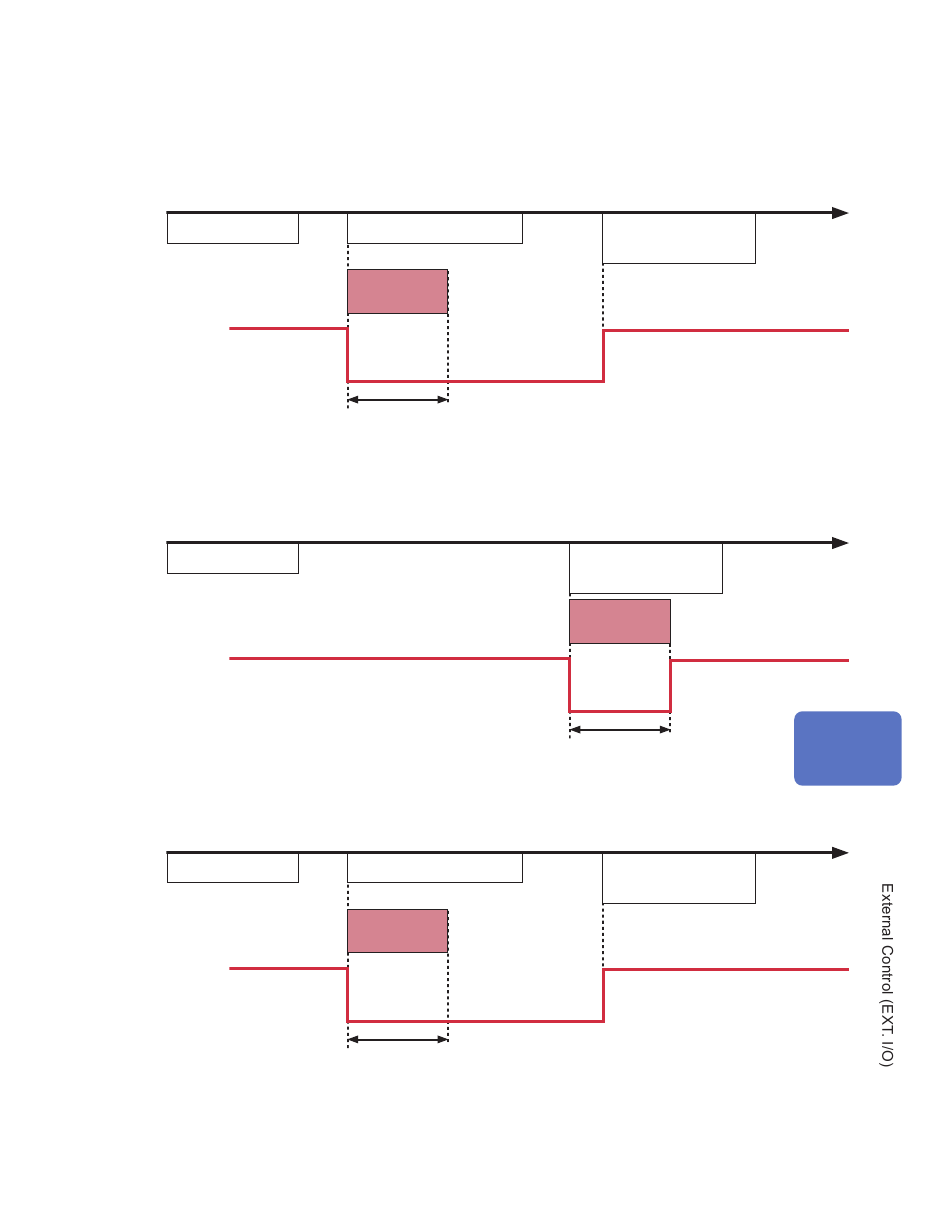

Trigger output timing
The timing at which signals appear in trigger output varies with the
See "2.2 Enabling the Trigger Function" (p. 1 16).
Start
Measurement start
Trigger output waveform
• Trigger output will switch to active when the start trigger activates.
• The pulse will be output for at least 10 ms and held while measurement continues.
• Trigger output will switch to non-active when measurement stops.
Stop
Measurement start
Trigger output waveform
• Trigger output will switch to active when the stop trigger activates.
• The pulse will be output for at least 10 ms, and then trigger output will switch to non-active.
Start & stop
Measurement start
Trigger output waveform
• Trigger output will switch to active when the start trigger activates.
• The pulse will be output for at least 10 ms and held while measurement continues.
• Trigger output will switch to non-active when the stop trigger activates.
