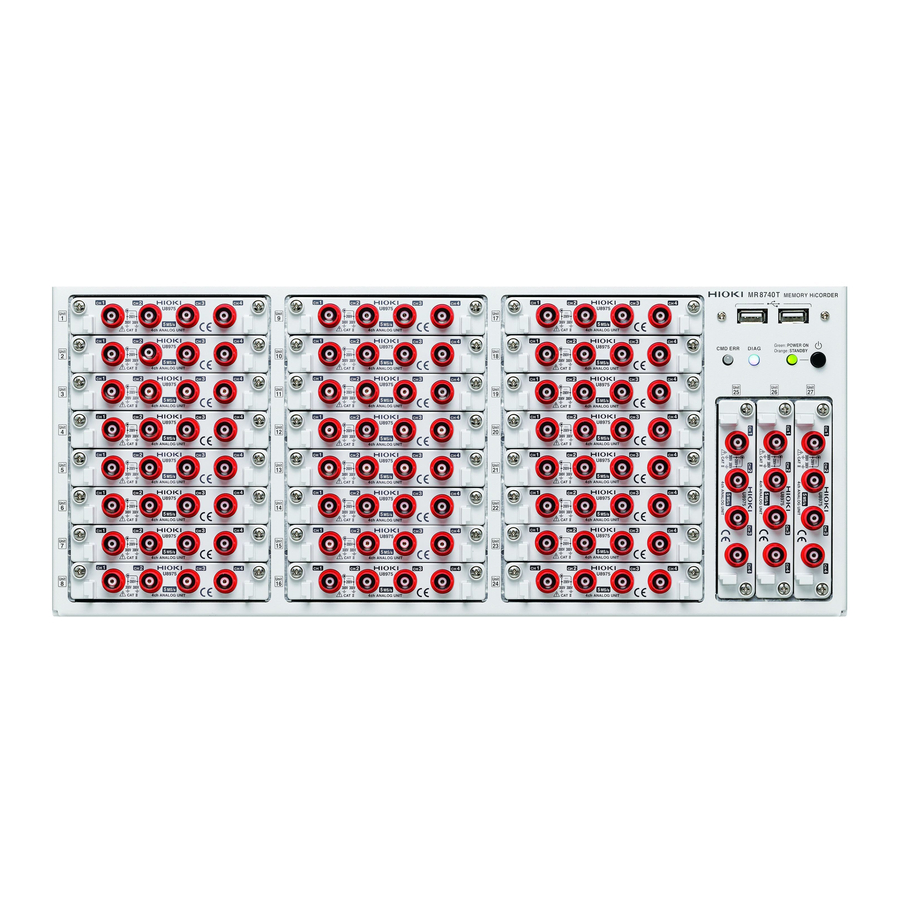

MR8740T
MR8740-50
Instruction Manual
MEMORY HiCORDER
EN
June 2019 Revised edition 1
MR8740C964-01 19-06H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR8740T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki MR8740T

Summary of Contents for Hioki MR8740T

  • Page 1 MR8740T MR8740-50 Instruction Manual MEMORY HiCORDER June 2019 Revised edition 1 MR8740C964-01 19-06H...

  • Page 3: Table Of Contents

    Contents Introduction Configuring Model 8968 High Resolution ............1 Unit settings ..........46 How to Refer to This Document .....2 Configuring Model 8967 Temp Unit settings .............47 Measurement Method Configuring Model U8969 Strain Unit .............49 settings Measurement Procedure .......3 Configuring Model 8970 Freq Unit Setting Measurement Conditions ..5 .............51...
  • Page 4 Contents Configuring the Pre-trigger Configuring Waveform Calculation settings Settings ..........102 ..........162 Setting the Trigger Satisfaction Operators of Waveform Conditions (AND/OR Operation) Calculation and Calculation Among Trigger Sources Results .....105 ..........169 Triggering the Instrument Using Analog Signals (Analog Trigger) ..106 Memory Dividing Triggering the Instrument With Function Logic Signals (Logic Trigger)
  • Page 5 Contents Externally Controlling the Instrument 12.1 External Input and Output ....210 External input (IN1), (IN2) .......210 ....211 External output (OUT1), (OUT2) ......213 Trigger output (TRIG.OUT) ..215 External trigger terminal (EXT.TRIG) 12.2 External Sampling (EXT.SMPL) ..217 Appendix 13.1 Information for Reference Purposes ..........219 Waveform file size...
  • Page 6 Contents...

  • Page 7: Introduction

    Introduction Introduction Thank you for choosing the Hioki MR8740T Memory HiCorder (Model MR8740-50). Preserve this manual carefully and keep it handy to make full use of this instrument for a long time. Following manuals are provided along with these models. Refer to manuals relevant to your purpose.

  • Page 8: How To Refer To This Document

    How to Refer to This Document How to Refer to This Document How to open a screen Indicates the order of clicking the screens. The button represents the setting key. Procedure numbers Numbered same as a corresponding step-by-step instruction. Options and explanations Describes options available when an item is clicked.

  • Page 9: Measurement Method

    Measurement Method 1.1 Measurement Procedure Inspecting the instrument before measurement Configuring the basic settings for measurement Choose a sampling rate. (p. 5) Choose a recording length (shot). (p. 6) Advanced settings: “3.1 Overlaying New Waveforms With Previously Acquired (p. 36) Waveforms”...
  • Page 10 Measurement Procedure To configuring measurement settings automatically [Auto range] Clicking on the waveform screen automatically specifies the sampling rate, measurement range, and zero position of the input waveform and start a measurement. Refer to “3.7 Measuring Signals With the Auto-range Setting” of Quick Start Manual. To load settings previously registered Load the settings file on the file screen.

  • Page 11: Setting Measurement Conditions

    100 kS/s (When Model U8991 is installed, double the number of its channels and find the maximum sampling rate.) *: Only if Model Z4006 USB Drive, a Hioki-designated option, is used, the real-time save operation with the instrument is guaranteed...
  • Page 12 Setting Measurement Conditions Click the [External sampling] button to set it to [On] or [Off].  Disables the external sampling function. Choose this option to sample data at a sampling rate defined by a signal inputted into the external control terminal (EXT.SMPL). Samples data at rising edges of the input signal.

  • Page 13: Sampling Rate Setting Guideline

    Setting Measurement Conditions Click the [Realtime save] button to set it to [On]. The instrument can record data in the built-in SSD and a storage device while measuring waveforms. Refer to “Real-time save” (p. 88). Configure the overlaying setting. Refer to “3.1 Overlaying New Waveforms With Previously Acquired Waveforms” (p. 36). Configuring the memory division settings Refer to “Memory Dividing Function”...
  • Page 14 Setting Measurement Conditions To set the sampling rate automatically Refer to “3.7 Measuring Signals With the Auto-range Setting” of Quick Start Manual. Update rate of each module The data refresh rate is not allowed to exceed the maximum sampling rate of each module. The instrument measures the same data until the data gets updated, causing the instrument to plot a stair-step waveform.

  • Page 15: Configuring The Input Channel Settings

    Configuring the Input Channel settings 1.3 Configuring the Input Channel settings Configure the settings of the analog and logic channels. > [Channel] Operation available on the [Channel] screen • Adding a comment to each channel • Setting measurement conditions for each channel •...
  • Page 16 Configuring the Input Channel settings Channel setting procedure Analog channels (CH1 through CH108) setting procedure Configuring the input settings Choose a measurement mode. (p. 11) Choose a measurement range for each measurement target. (p. 12) Convert input values (scaling function). (p.

  • Page 17: Analog Channels

    Configuring the Input Channel settings Analog channels For details on configuring each module setting, refer to “3.6 Configuring Measuring-Module-Specific Settings” (p. 46). [Channel] each module (UNIT) > > Enter a comment in the [Comment] box. Number of characters that can be entered: up to 40 Click the [Mode] box, and then choose a measurement mode from the list.
  • Page 18 Configuring the Input Channel settings Click the [Range (f.s.)] box, and then choose a measurement range from the list. Select a measurement range for each channel. The value of the range represents its maximum displayable value (f.s.). See the following table for the full-scale resolution of each module. If the input voltage exceeds the measurable range (overrange occurs), change the measurement range to one with a lower sensitivity.
  • Page 19 Configuring the Input Channel settings Configure the input coupling, low-pass filter, and probe ratio settings. Click the area that includes [Coupling] allows the setting dialog box to appear. (1) Click the [Coupling] box, and then choose a coupling method for an input signal from the list.
  • Page 20 Configuring the Input Channel settings Click the [Display] button to set it to [On] or [Off].  Displays the waveform on the waveform screen. Color Allows you to choose a waveform display color. You can also choose the same color as lines acquired across other channels. Invert When the signs of displayed waveforms are reversed, the waveforms can be (Off...

  • Page 21: Logic Channels

    Configuring the Input Channel settings Logic channels The logic sheet appears when the screen is in Single, Dual, Quad, Octa, or Hexadeca mode. > [Channel] Click the [Logic width] box, and then choose a display width for logic waveforms from the list.

  • Page 22: Configuring The Sheet Settings

    Configuring the Sheet Settings 1.4 Configuring the Sheet Settings You can define the display format of waveforms on the sheet. You can define different display formats for each of the 16 sheets You can also switch sheets to be displayed on the waveform screen.

  • Page 23: Switching Sheets On The Waveform Screen

    Configuring the Sheet Settings Choose channels to be displayed on the graph. All channels are chosen in the default setting. Click a button to deselect a channel (Click it again to select it). Click [OK]. Your selection is confirmed. Clicking [Cancel] closes the dialog box without your selection confirmed.

  • Page 24: Starting/Stopping Measurement

    Starting/Stopping Measurement 1.5 Starting/Stopping Measurement Starting a measurement When you click the start icon, the instrument starts a measurement. • Waveform data shown on the screen is cleared once the measurement starts. • You can also start a measurement by inputting a signal into the external control terminal. Refer to “12 Externally Controlling the Instrument”...

  • Page 25: Operating The Waveform Screen And

    Operating the Waveform Screen and Analyzing Data You can analyze measured data with various functions including cursor measurement of input waveforms and searches on the waveform screen. You can also change measurement conditions or other settings on this screen. Operation available on the waveform screen Changing the display magnification of Using the trace cursors and horizontal waveforms...

  • Page 26: Reading Measured Values (Trace Cursors, Horizontal Cursor)

    Reading Measured Values (Trace Cursors, Horizontal cursor) 2.1 Reading Measured Values (Trace Cursors, Horizontal cursor) You can read measured values (scaled values when the scaling is used) using cursors on the waveform screen. The instrument can simultaneously display up to eight cursors, which contains the trace cursors and horizontal cursors.
  • Page 27 Reading Measured Values (Trace Cursors, Horizontal cursor) For the trace cursors [CH Info] toggle switch to [On]. Click [CH Info] toggle switch to switch between [On] [Off] for the information display setting of each channel. Click [Trace cursor]. Choose two cursors to be used from among [Trace cursor A] through [Trace cursor...
  • Page 28 Reading Measured Values (Trace Cursors, Horizontal cursor) Click under the [CH Info] toggle switch, and then choose [Trace Cur.] from the list. Click a trace cursor of which you want to display the value. ([Trace cursor A]) and trace cursor H You can choose up to two cursors from among trace cursor A ([Trace cursor...
  • Page 29 Reading Measured Values (Trace Cursors, Horizontal cursor) Changing the display magnification of waveforms while moving the trace cursor Sliding the mouse upward on the screen while dragging the trace cursor enlarges the waveform display centered around the trace cursor in proportion to the dragging distance. Sliding the mouse downward compresses the waveform display.
  • Page 30 Reading Measured Values (Trace Cursors, Horizontal cursor) How to read cursor values For the trace cursors • Choose trace cursors the value of which is to be displayed at The time values of chosen trace cursors are displayed on the waveform screen. •...

  • Page 31: Displaying Vertical Scales (Gauge Function)

    Displaying Vertical Scales (Gauge Function) 2.2 Displaying Vertical Scales (Gauge Function) Using the gauge function enables the vertical scales (for convenience, hereafter referred to as “gauges”) to be displayed overlapping waveforms. Click [Gauge]. Choose gauges to be displayed from among [Gauge A] through [Gauge...
  • Page 32 Displaying Vertical Scales (Gauge Function) Click [CH ] [CH ] to choose a channel to be displayed. Clicking [Hide] hides the gauges. Click [Upper and lower limit value]. The setting dialog box appears. You can specify the display range of each channel. Enter an upper and lower values in the [Upper] [Lower]...

  • Page 33: Scrolling Through Waveforms

    Scrolling Through Waveforms 2.3 Scrolling Through Waveforms Scrolling through waveforms Dragging the waveform screen scrolls through waveforms that are being measured or existing waveforms. Scrolling direction Screen display Previous Latest Dragging the waveform Dragging the waveform leftward: rightward: Scrolls through the waveform Scrolls through the waveform forward from the present.

  • Page 34: Checking A Position Of Waveforms With The Scroll Bar

    Scrolling Through Waveforms Checking a position of waveforms with the scroll bar The scroll bar provides the position and size of the displayed part of the waveforms relative to the entire recording-length waveforms. It also shows the positions of the trigger point and trace cursors. Scroll bar Verifying the position of the trigger point and cursors on the scroll bar Trigger point...

  • Page 35: Changing The Display Position And Display Magnification Of Waveforms

    Changing the Display Position and Display Magnification of Waveforms 2.4 Changing the Display Position and Display Magnification of Waveforms You can change the display magnification of waveforms by pointing to the time axis on the waveform screen and rotating the wheel button. Rotating the wheel button Zooms in the waveforms.

  • Page 36: Differentiating The Waveform Display Position And Display Magnification Of Each Analog Channel

    Changing the Display Position and Display Magnification of Waveforms Differentiating the waveform display position and display magnification of each analog channel Click [Channel position adjustment]. The channel position adjustment screen appears. The blue box area shows the display range of the waveform screen.
  • Page 37 Changing the Display Position and Display Magnification of Waveforms Click a channel number you want to move to choose and drag the chosen area. The display position of the channel is moved. Click a channel number the display position you want to change. Rotating the wheel button while pointing to the selected area changes the display magnification.
  • Page 38 Changing the Display Position and Display Magnification of Waveforms Adjust the display position and magnification. The display can be adjusted as follows depending on the selected state. Initialize the position of all Restores all the channels to the initial positions and displays channels.

  • Page 39: Enlarging A Part Of The Waveform (Zoom Function)

    Enlarging a Part of the Waveform (Zoom Function) 2.5 Enlarging a Part of the Waveform (Zoom Function) Using the zoom function allows you to enlarge a part of waveforms. Normal display Magnified display Normal display Magnified Click [Zoom]. The screen splits into two, upper and lower, which enable the zoom function. Upper screen: Displays waveforms in the magnification specified before the zoom function was applied.
  • Page 40 Enlarging a Part of the Waveform (Zoom Function)

  • Page 41: Advanced Functions

    Advanced Functions Advanced measurement and settings Converting input values (scaling) (p. 38) • Overlaying new waveforms with previously acquired waveforms (p. 36) Detailed module settings (p. 46) Fine-adjusting input values (p. 43) • Anti-aliasing filter • Thermocouple type • Reference junction compensation •...

  • Page 42: Overlaying New Waveforms With Previously Acquired Waveforms

    Overlaying New Waveforms With Previously Acquired Waveforms 3.1 Overlaying New Waveforms With Previously Acquired Waveforms New waveforms can be overlaid with the presently displayed waveforms. • You can compare the new waveforms with those recorded before. (When [Mode] is set to [Repeat]) (p.
  • Page 43 Overlaying New Waveforms With Previously Acquired Waveforms Click the button to display the waveform screen. Overlay the waveforms manually (leaving any waveforms to be displayed on the screen). Overlay Leaves the acquired waveforms displayed on the screen. The overlay setting continues to be available until the waveforms are cleared. Clear Clears all the overlaid waveforms displayed on the screen.

  • Page 44: Converting Input Values (Scaling Function)

    Converting Input Values (Scaling Function) 3.2 Converting Input Values (Scaling Function) About the scaling function The scaling function enables you to convert voltage outputted from measuring devices such as sensors into physical quantities of measuring objects. Hereafter, the term “scale” refers to converting numerical values using the scaling function. Gauge scales, scaled values (upper and lower limits of the vertical axis or voltage axis), and measured values using trace cursors are represented as scaled values in the specified units.
  • Page 45 Converting Input Values (Scaling Function) Click the [Scaling] box, and then choose a scaling setting from the list.  Does not scale any values. On (ENG) Displays values in decimal notation with a unit prefix (such as m and k). On (SCI) Displays values in scientific notation (as a power of 10).
  • Page 46 Converting Input Values (Scaling Function) When using [2-Point]: Specify two input values and those after scaling. Enter two voltage values of an inputted signal in the [Input1] [Input2] boxes. Enter each of two scaled value in the [Scale1] [Scale2] boxes. −9.9999E+29 9.9999E+29 The instrument converts (scales) measured values in...
  • Page 47 Converting Input Values (Scaling Function) When using [Output rate]: Choose an output rate (ratio) of a current sensor or a division ratio of a voltage dividing probe. Click the [Output rate] box, and then from the list, choose a current value per one volt the current sensor outputs.

  • Page 48: When Using Model U8969 Strain Unit

    Converting Input Values (Scaling Function) When using Model U8969 Strain Unit When an inspection record of a strain gauge converter provides a calibration factor Example: To display data measured with the strain gauge converter having a calibration −6 factor of 0.001442 G/1 × 10 strain* as values in terms of gravities (G) −6 (*: 10...

  • Page 49: Fine-Adjusting Input Values (Vernier Function)

    Fine-Adjusting Input Values (Vernier Function) 3.3 Fine-Adjusting Input Values (Vernier Function) You can freely fine-adjust input voltage on the waveform screen. When recording physical values, such as noise, temperature, and acceleration, with sensors, you can adjust those amplitudes, which facilitates calibration. Normal display Waveform processed by the vernier function 1.2 V...

  • Page 50: Inverting A Waveform (Invert Function)

    Inverting a Waveform (Invert Function) 3.4 Inverting a Waveform (Invert Function) You can invert a waveform relative to the X axis. This function can be used for analog channels only. Measured data saved in files is that inverted by the invert function. Example: •...

  • Page 51: Copying Settings (Copy Function)

    Copying Settings (Copy Function) 3.5 Copying Settings (Copy Function) You can copy settings of other channels, as well as the trigger settings. The following procedure explains how to copy settings of another channel. > [Func] > [Copy] > [Channel] In the [Contents] area, click one or more of items that you want to copy.

  • Page 52: Configuring Measuring-Module-Specific Settings

    Configuring Measuring-Module-Specific Settings 3.6 Configuring Measuring-Module-Specific Settings You can configure advanced settings for each module. Configuring Model 8968 High Resolution Unit settings > [Channel] > [8968] Click the area that includes [A.A.F]. [A.A.F.] setting dialog box appears. Click the [A.A.F.] box, and then choose [On] [Off]...

  • Page 53: Configuring Model 8967 Temp Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model 8967 Temp Unit settings > [Channel] > [8967] Click the [Mode] box, and then choose a thermocouple type from the list. Choose an option depending on the type of a thermocouple to be used. Mode Measurable range Mode Measurable range...
  • Page 54 Configuring Measuring-Module-Specific Settings Click the [Burn out] box, and then choose between [On] [Off] from the list for the wire break detection setting. You can detect a broken thermocouple wire during temperature measurement. If a thermocouple wire breaks, measured values will fluctuate. Does not check wires for a break.

  • Page 55: Configuring Model U8969 Strain Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model U8969 Strain Unit settings Model U8969 Strain Unit can execute auto-balance. Executing auto-balance regulates the reference output level of a transducer at the specified zero position. Auto-balance is available for Model U8969 Strain Unit only. You can use Model 8969 Strain Unit you own with this instrument.
  • Page 56 Configuring Measuring-Module-Specific Settings To execute auto-balance on the list screen > [Channel] > > [Operate] > [Auto balance] Executes auto-balance for all channels of the strain modules installed in the instrument. In the following cases, execute auto-balance again. • After changing the vertical axis (strain axis) range •...

  • Page 57: Configuring Model 8970 Freq Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model 8970 Freq Unit settings > [Channel] > [8970] Click the [Mode] box, and then choose a measurement mode from the list. Frequency  Measures frequency of a waveform (in hertz [Hz]). Rotation speed Measures the number of rotations of a measuring object (in rotations per minute [r/ min]).
  • Page 58 Configuring Measuring-Module-Specific Settings Click the [Threshold] box, and then enter a threshold value. • Measured values are acquired based on the following: the interval between the subsequent two points when measured waveform exceeds (or falls below) the threshold value, and the number of times when the waveform exceeds (or falls below) the threshold value.
  • Page 59 Configuring Measuring-Module-Specific Settings Click the [Level] box, and then from the list, choose a side of the threshold level to be detected for pulse width measurement and duty ratio measurement. Only when [Mode] is set to [Pulse width] [Duty ratio], this setting is available. High ...

  • Page 60: Configuring Model 8971 Current Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model 8971 Current Unit settings > [Channel] > [8971] 1, 2 Confirm the output rate displayed in the [Mode] area. The instrument automatically recognizes a current sensor connected to Model 8971 Current Unit and displays it as follows: 20A/2V When one of the following current sensors is connected: Model 9272-10 (20 A range) and Model CT6841.
  • Page 61 Configuring Measuring-Module-Specific Settings Click the [Range (f.s.)] box, and then choose a measurement range from the list. IMPORTANT The figure of each measurement range name represents the maximum current Model 8971 can measure using the range. However, the instrument cannot measure currents that exceed the rated current of a connected current sensor.

  • Page 62: Configuring Model 8972 Dc/Rms Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model 8972 DC/RMS Unit settings > [Channel] > [8972] In the [Mode] area, click the [DC] [RMS] to choose a measurement mode.  For voltage measurement For RMS measurement (When you have changed the measurement mode) Click [Zero adjust].

  • Page 63: Configuring Model Mr8990 Digital Voltmeter Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model MR8990 Digital Voltmeter Unit settings > [Channel] > [MR8990] Click the area that includes [Notch frequency]. The setting dialog box appears. Click the [Notch frequency] box, and then choose a power frequency from the list. Choose a power frequency of your region.
  • Page 64 Configuring Measuring-Module-Specific Settings Click the [Calibration] box, and then choose a calibration setting from the list. Enabling this setting automatically calibrates the module or synchronizes the channels at the start of measurement. The synchronization between channels allows integration calculations to synchronize with each other.

  • Page 65: Configuring Model U8974 High Voltage Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model U8974 High Voltage Unit settings > [Channel] > [U8974] In the [Mode] area, click the [DC] [RMS] to choose a measurement mode.  For voltage measurement For RMS measurement (When you have changed the measurement mode) Click [Zero adjust].

  • Page 66: Configuring Model U8977 3Ch Current Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model U8977 3CH Current Unit Settings Each of Model 9709, Model CT6860 series, and Model CT6840 series consists of a current sensor with the sub model-number “-05,” which has a metal connector, and that without the sub model- number “-05,”...
  • Page 67 Configuring Measuring-Module-Specific Settings (When you have to choose a current sensor setting) Click the [Mode] box, and then choose a connected current sensor. Available measurement ranges, which depend on chosen current sensors, are as follows: CT7631/CT7731 200 A CT7636/CT7736 200 A, 400 A, 1 kA CT7642/CT7742 2 kA, 4 kA CT7044/CT7045/...

  • Page 68: Configure Model U8979 Charge Unit Settings

    Configuring Measuring-Module-Specific Settings Configure Model U8979 Charge Unit Settings This setting allows you to choose between voltage measurement and acceleration measurement (charge-output or built-in pre-amplifier) for an input channel. A channel can measure either one of them. Voltage mode and Preamp mode use BNC connectors, whereas Charge mode uses miniature connectors.
  • Page 69 Configuring Measuring-Module-Specific Settings Click the [A.A.F.] box, and then choose a anti-aliasing filter setting from a list. The anti-aliasing filter can prevent aliasing distortion that may be produced during FFT calculation. The cutoff frequency automatically changes according to the sampling rates or frequency range (for the FFT function) settings.
  • Page 70 Configuring Measuring-Module-Specific Settings When using an out-of-setting-range current sensor You can use an out-of-setting-range current sensor using the scaling function. Refer to “Automatically saving waveform data” (p. 84). Click the area that includes [Sensitivity]. The setting dialog box appears. Click [Sensitivity] box, and then enter sensor sensitivity.

  • Page 71: Configuring Model U8991 Digital Voltmeter Unit Settings

    Configuring Measuring-Module-Specific Settings Configuring Model U8991 Digital Voltmeter Unit settings > [Channel] > [U8991] Click the area that includes [Notch frequency]. The setting dialog box appears. Click the [Notch frequency] box, and then choose a power frequency from the list. Choose a power frequency of your region.

  • Page 72: Configuring Generator-Module-Specific Settings

    Configuring Generator-Module-Specific Settings 3.7 Configuring Generator-Module-Specific Settings You can configure generator module settings on the dedicated setting screen. You can configure settings of MR8790 Waveform Generator Unit, MR8791 Pulse Generator Unit, and U8794 VIR Generator Unit using the instrument. >[Func]> [Generator Setting]. Click [Func].

  • Page 73: Configuring Model Mr8790 Waveform Generator Unit Setting

    Configuring Generator-Module-Specific Settings Configuring Model MR8790 Waveform Generator Unit setting Click [MR8790] Allows you to choose a waveform type  Outputs a DC signal. Outputs a sine wave signal. Configure the advanced output settings. DC voltage Allows you to enter a DC voltage. −10.000 V +10.000 V Frequency...
  • Page 74 Configuring Generator-Module-Specific Settings Offset Allows you to set an offset of the output sine wave. Accuracy of the output voltage, which consists of amplitude and an offset value, is guaranteed in the range of −10 V to +10 V. An output waveform will appear with its upper parts limited to about +14 V and lower about −14 V when the sum of the amplitude and offset value is set to out of the accuracy-guaranteed range.

  • Page 75: Configuring Model Mr8791 Pulse Generator Unit Settings

    Configuring Generator-Module-Specific Settings Configuring Model MR8791 Pulse Generator Unit settings Click [MR8791] Click the [Mode] box, and then choose an output type from the list. PULSE  Outputs a pulse waveform. PATTERN Outputs a pattern waveform. Configure the pulse output settings. Frequency Allows you to enter a pulse output frequency.
  • Page 76 Configuring Generator-Module-Specific Settings Output configuration (Method) You can configure the output settings. The ground potential is cross-channel and not insulated. With the open-collector output setting • Limit the collector-emitter voltage to 50 V. • Output signals require a response time of about 5 µs or less to rise from 10% to 90%. (With a load capacity Ω...
  • Page 77 Configuring Generator-Module-Specific Settings Pattern reproducing frequency Enter a clock frequency of pulse pattern. (In 10 Hz increments) • Settable clock period range: 0 to 0.1 seconds • You can freely specify the clock cycle as long as it falls into the above-mentioned range. The cycle of the actually outputted waveform becomes the nearest value among the reciprocals of settable frequencies.
  • Page 78 Configuring Generator-Module-Specific Settings Editing patterns Editing patterns Choose a pattern number you want to create or edit, and then click [Edit]. Number of pattern data sets Enter the number of pattern data sets you want to create or edit. 2048...
  • Page 79 Configuring Generator-Module-Specific Settings Creating or editing pattern data sets Clicking a pattern on the screen causes the pattern setting window. The window allows you to specify the pattern in hexadecimal notation After finishing creating or editing the pattern, click [OK] Confirmation of the setting After finishing the setting, click [Send setting]...

  • Page 80: Configuring Model U8794 Vir Generator Unit Settings

    Configuring Generator-Module-Specific Settings Configuring Model U8794 VIR Generator Unit settings Choose [11:U8794] Notch frequency Choose a power frequency according to the power frequency in your region. An incorrect power frequency setting causes measured values to be unstable. Allows you to set the notch frequency at 50 Hz. ...
  • Page 81 Configuring Generator-Module-Specific Settings Specifying a voltage value The instrument outputs a DC current. −5 mA +5 mA The output voltage range is from −0.1 V to +5.3 V. The instrument switches generation ranges to an appropriate range based on the specified current value.
  • Page 82 Configuring Generator-Module-Specific Settings Voltage generation and measurement function Outputting an AC voltage The instrument can output a sine wave with a DC voltage superimposed. DC offset voltage 0.1 V to 2.5 V Amplitude 0.1 V p-p to 5.0 V p-p Frequency 10 Hz, 20 Hz, 50 Hz, 100 Hz CAUTION...
  • Page 83 Configuring Generator-Module-Specific Settings Switching OUTPUT terminals Terminal setting Internal circuit Open OUTPUT Output circuit Short OUTPUT Output circuit Normal OUTPUT Output circuit IMPORTANT Do not set the OUTPUT terminal status to [Short] when a power supply device connects with the OUTPUT terminal.
  • Page 84 Configuring Generator-Module-Specific Settings Comprehensive test The instrument outputs the following voltages and currents of each output function and each generation range, measuring them with the internal measurement circuit. Then, the instrument sends back measured values of each output value. Generation Measurement Output testing Output item...
  • Page 85 Configuring Generator-Module-Specific Settings To perform precise measurement IMPORTANT Be careful of the following points when the instrument outputs a current of 100 µA or less with Ω the current output function, when it generates a resistance of 50 k or more with the resistance generation function, or when a device connected with the instrument has an output resistance of Ω...
  • Page 86 Configuring Generator-Module-Specific Settings...

  • Page 87: Saving/Loading Data And Managing Files

    Saving/Loading Data and Managing Files This chapter explains how to save and load data and manage files. [Status] > [Save], and configure the save setting. Before saving data, select The file screen allows you to load data. The explorer allows you to manage files. Refer to “4.4 Managing Files”...

  • Page 88: Data That Can Be Saved And Loaded

    Data That Can Be Saved and Loaded 4.1 Data That Can Be Saved and Loaded Files that exceed 2 GB cannot be saved. Data saved with another instrument cannot be loaded onto the instrument. Enable, ‒ Disable  Saving Loading File File extension and File type...

  • Page 89: Saving Data

    Saving Data 4.2 Saving Data Saving types and setting procedure Three ways are available to save data. To automatically save data To manually save data by clicking the save icon (p. 90) during measurement (p. 84) To immediately save data To save data after when you click the icon choosing items...

  • Page 90: Automatically Saving Waveform Data

    Refer to “Configuring the LAN settings with the instrument” (p. 182) and “11.3 Sending Data to a Computer With the FTP Client Function” (p. 192). • Use Model Z4006 USB Drive (Hioki’s option) for protecting data. Enter the file name in the [File name] box.
  • Page 91 Saving Data In the [Waveform] area, click [On] [Off] to configure the waveform save setting.  Does not save any waveforms. Saves waveforms. Click the [Type] box, and then choose a save format of data from the list. Waveform Saves waveform data in binary format. (Binary) ...
  • Page 92 Saving Data (When you choose [Waveform (Text)] in the [Type] box) Click the [Thin out] button to set it to [On] or [Off]. When you choose [On], click the number box on the right, and then enter the number of data points out of which a data point is retained.
  • Page 93 Saving Data Structure of the save destination folders The instrument saves folders under the “HIOKI_MR8740T” folder as follows. Every folder can collectively retain up to 5000 files and folders. 0001AUTO.MEM HIOKI_MR8740T WAVE 0001DATA 0001AUTO.CSV Up to 5000 files When the number of files in the xxxxDATA (“xxxx” 0002DATA represent a figure of 0001 to 9999) folder reaches 5000, the instrument automatically creates a new...

  • Page 94: Real-Time Save

    Saving Data Real-time save Since setting the real-time save to [On] allows data to be saved in a storage device simultaneously with measurement, the instrument can perform measurement for a long period of time regardless of the capacity of the internal memory. The measurement condition settings are different between setting the real-time save to [On] [Off].
  • Page 95 Saving Data > [Status] > [Save] Configure the real-time save and sampling rate settings on the [Condition] screen Refer to “1.2 Setting Measurement Conditions” (p. 5). Click the [Media] box, and then choose a destination to save from the list. Click the [Recording time] box, and then enter a recording time.

  • Page 96: Freely Selecting Data Items To Be Saved And Save Files (Save Icon)

    Saving Data Freely selecting data items to be saved and save files (save icon) To save a file immediately by clicking the save icon, you need to specify items to be saved beforehand. You can save the following types of data: (Setting data, waveform data, screenshot, and numerical calculation results) >...
  • Page 97 Saving Data Click the [Type] box, and then choose a save format of data from the list. Waveform Saves waveform data in binary format. (Binary)  Choose this option to reload the waveforms into the instrument. Waveform (Text) Saves waveform data in text format. Choose this option to load the waveforms with a computer.
  • Page 98 Saving Data Configure advanced save settings according to the [Type] box setting. Saving format Setting Description Waveform (Text) Thin out  A large amount of space is required to save On (2 to 1,000) files in text format. Decimating data before saving a file can reduce the file size.
  • Page 99 Saving Data (When using the memory division function) Choose an option for blocks to be saved. Display block  Saves waveforms included in displayed blocks. All block Saves waveforms included in the specified number of blocks being used counting from the start block. Whenever you click the save icon, the instrument saves data in the setting specified.

  • Page 100: Loading Data

    Loading Data 4.3 Loading Data You can load data saved in a storage device or written in the internal memory of the instrument. Data loading procedure Before attempting to load the data, make sure that a storage device is inserted, and the save destination is correctly specified.

  • Page 101: Automatically Loading The Settings (Auto-Setup Function)

    Insert a storage device before choosing it. Others • The instrument can load data saved with Model MR8740T Memory HiCorder only. • Loading a waveform file changes the settings of the instrument to those when the waveform file was saved. When you start a measurement in this state, the instrument measures waveforms with the settings of the loaded waveform file;...

  • Page 102: Managing Files

    Managing Files 4.4 Managing Files Opening the explorer allows you to manage data saved in storage devices. Operation available on the explorer Changing storage Storage devices can be changed. devices Sorting files Files on a file list can be sorted based on the chosen basis. Moving files to a Files can be moved to a folder of your choice.

  • Page 103: Configuring The Trigger Settings

    Configuring the Trigger Settings The trigger function allows you to start and stop measurements using specific signals. When recording is started by specific signals, it is called “The instrument is triggered.” In this chapter, the mark represents the point the start trigger is activated. In the descriptions of each trigger source, the mark represents a point each trigger condition is satisfied and a point each trigger is generated.

  • Page 104: Trigger Setting Procedure

    Trigger Setting Procedure 5.1 Trigger Setting Procedure • The instrument is triggered based on trigger logical-conditions (logical AND or OR operation) among trigger sources except for the forcible trigger. (p. 105) • When triggered, the instrument outputs the TRIG OUT signal from the external control terminal. (p.

  • Page 105: Enabling The Trigger Function

    Enabling the Trigger Function 5.2 Enabling the Trigger Function > [Trigger] > [Common] Click the [Trigger] button to set it to [On].  Enables the trigger function. Disables the trigger function. To copy settings to other channels You can copy settings on the analog trigger setting screen. Refer to “3.5 Copying Settings (Copy Function)”...

  • Page 106: Trigger Timing

    Trigger timing 5.3 Trigger timing > [Trigger] > [Common] START  Starts recording when the instrument is triggered, and stops the recording after the instrument has acquired the recording-length waveforms. A displayed trigger point may lag behind the actual trigger point by some samples between one and four when measuring modules include any one of the following modules: Model U8975 4ch Analog Unit, Model MR8990 Digital Voltmeter, and Model U8991 Digital Voltmeter Unit.
  • Page 107 Trigger timing Trigger timing Recording [Start] Starts recording Starts recording when the instrument is triggered. Stops the recording When the mode is Stops the recording after the instrument has acquired the recording-length data. set to [Single] When the mode is Starts recording, stops the recording after the instrument has acquired the recording-length data, and then waits for a trigger.

  • Page 108: Configuring The Pre-Trigger Settings

    Configuring the Pre-trigger settings 5.4 Configuring the Pre-trigger settings Pre-trigger You can record not only Also records data before the start trigger. waveforms that appear after a Start start trigger has been activated, but also those that appear before the trigger is activated. Specified pre- Recording length or trigger length...
  • Page 109 Configuring the Pre-trigger settings Click [Pre-Trigger 0%]. The setting dialog box appears. Click the [Pre-trigger] box, and then enter a pre-trigger length.  100% Difference between [Waiting for Pre-Trigger] [Waiting for Trigger] When starting a measurement, the instrument starts filling the pre-trigger memory. During this period, the instrument displays the message [Waiting for Pre-Trigger].
  • Page 110 Configuring the Pre-trigger settings Click the [Trigger priority] button to choose a way to handle triggers activated while the instrument is filling the pre-trigger memory. You can choose whether the instrument is triggered when the trigger condition is satisfied while the instrument is filling the pre-trigger memory.

  • Page 111: Setting The Trigger Satisfaction Conditions (And/Or Operation) Among Trigger Sources

    Setting the Trigger Satisfaction Conditions (AND/OR Operation) Among Trigger Sources 5.5 Setting the Trigger Satisfaction Conditions (AND/OR Operation) Among Trigger Sources Set the trigger logical-conditions among the analog, logic, external, and interval triggers by choosing between logical AND or OR operation. The forcible trigger triggers the instrument regardless of the trigger logical-conditions setting.

  • Page 112: Triggering The Instrument Using Analog Signals (Analog Trigger)

    Triggering the Instrument Using Analog Signals (Analog Trigger) 5.6 Triggering the Instrument Using Analog Signals (Analog Trigger) This section explains how to configure the analog trigger settings and types of the analog triggers. > [Trigger] > [Source] Click a trigger source you want to specify. The setting dialog box appears.
  • Page 113 Triggering the Instrument Using Analog Signals (Analog Trigger) [Level] trigger When an input signal crosses the specified level in the positive or negative direction, an analog trigger is generated. Level Input waveform Slope: Setting Description Level –f.s. +f.s. Allows you to enter a level of the level trigger. Default: ...
  • Page 114 Triggering the Instrument Using Analog Signals (Analog Trigger) With the [Event] setting If the trigger condition is repeatedly satisfied, setting the number of events prevents an analog trigger from being generated until the number of times the level-trigger condition is satisfied reaches the specified number of counts.
  • Page 115 Triggering the Instrument Using Analog Signals (Analog Trigger) [In] trigger, [Out] trigger When an input signal falls within ([In]) or gets out of a range ([Out]), which is determined by specifying upper and lower values, an analog trigger is generated. [In] [Out] Upper limit value...
  • Page 116 Triggering the Instrument Using Analog Signals (Analog Trigger) [Voltage drop] trigger When a voltage peak is continuously lower than a specified level for a time of half a period or more, the voltage-drop-trigger condition is satisfied. The sampling rate can be set at a figure in the range of 2 kS/s to 20 MS/s.
  • Page 117 Triggering the Instrument Using Analog Signals (Analog Trigger) [Period-in] trigger and [Period-out] trigger The instrument measures periods of an input waveform, which are time lags between consecutive two points at which an input voltage crosses the specified level in the positive or negative direction. The period-trigger condition is satisfied when a period is inside the specified range (In) or outside the specified range (Out).
  • Page 118 Triggering the Instrument Using Analog Signals (Analog Trigger) Setting of the period range The period range settings of the period trigger vary depending on the sampling periods (sampling rates). (The setting value of the period range also changes in conjunction with the sampling period [sampling rate] setting.) Select [Status] >...
  • Page 119 Triggering the Instrument Using Analog Signals (Analog Trigger) [Glitch] trigger The glitch-trigger condition is satisfied when a pulse width of an input signal that has crossed the specified level is shorter than the specified duration. These triggers cannot be set either when Model MR8990 or Model U8991 is used. Width Level Input waveform...

  • Page 120: Triggering The Instrument With Logic Signals (Logic Trigger)

    Triggering the Instrument With Logic Signals (Logic Trigger) 5.7 Triggering the Instrument With Logic Signals (Logic Trigger) This section explains how to configure the logic trigger settings. • Input signals acquired across the logic channels serve as a trigger source. •...
  • Page 121 Triggering the Instrument With Logic Signals (Logic Trigger) Click each of the signals under [Trigger pattern] to set a logic-trigger pattern. The logic-trigger pattern can be set.  Ignores a signal. The logic-trigger condition of each logic signal is satisfied when the signal is at a low level.

  • Page 122: Triggering The Instrument At Regular Intervals (Interval Trigger)

    Triggering the Instrument at Regular Intervals (Interval Trigger) 5.8 Triggering the Instrument at Regular Intervals (Interval Trigger) Start triggers can be activated at specified intervals. Setting the recording mode to [Repeat] allows the instrument to record waveforms at regular intervals. •...
  • Page 123 Triggering the Instrument at Regular Intervals (Interval Trigger) Acquiring data at regular intervals (relation between a time interval and a recording length or recording time) The instrument is not triggered until having acquired data that has the specified recording length or recording interval.

  • Page 124: Externally Triggering The Instrument (External Trigger)

    Externally Triggering the Instrument (External Trigger) 5.9 Externally Triggering the Instrument (External Trigger) External signals applied to the external control terminals can serve as trigger sources. External signals can also be used to operate multiple instruments in synchronization with each other.

  • Page 125: Issuing An Alert Using Triggers (Alert Function)

    Issuing an Alert Using Triggers (Alert Function) 5.11 Issuing an Alert Using Triggers (Alert Function) The alert function detects trigger-condition satisfying points based on trigger settings. When [Beep sound] is set to [Alert] or [Alert+Action], the instrument continues to beep while the trigger condition is being satisfied.
  • Page 126 Issuing an Alert Using Triggers (Alert Function) Event mark The instrument puts event marks ( ) at the positions when the specified trigger condition is satisfied (alert issued) and when the condition fails to be satisfied (alert terminated). At the upper right of the screen, the instrument displays the time when the condition is satisfied, channel number, trigger type, measured value and a character string [Out]...

  • Page 127: Automatically Specifying The Trigger Level (Auto-Trigger Level)

    Automatically Specifying the Trigger Level (Auto-trigger Level) 5.12 Automatically Specifying the Trigger Level (Auto- trigger Level) When you enable this setting, the instrument performs a preliminary measurement before an actual measurement. In the preliminary measurement, the instrument acquires the specified number of data points and calculates the average value of them.
  • Page 128 Automatically Specifying the Trigger Level (Auto-trigger Level)

  • Page 129: Search Function

    Search Function Using the search function allows you to search measured waveform data for positions where user- defined search criteria have been satisfied. > Operation available on the search screen Peak search You can search for the maximum, minimum, local maximum (maximal), or local minimum (minimal) value.

  • Page 130: Searching For Peak Values

    Searching For Peak Values 6.1 Searching For Peak Values You can choose any one of the maximum, minimum, maximal, and minimal values and search measured data for it. > Click the [Target channel] box, and then from the channel setting dialog box, choose a channels to be searched for values.
  • Page 131 Searching For Peak Values (When you choose [Maximal] [Minimal] in the [Type] box) Click the [Filter(samples)] box, and then from the list, choose a decision criterion for maximal or minimal values.  Regards a value as a maximal value when it is larger than the values found one point before and after, and a minimal value when it is smaller.

  • Page 132: Searching For Positions Where A Trigger Condition Is Satisfied

    Searching For Positions Where a Trigger Condition Is Satisfied 6.2 Searching For Positions Where a Trigger Condition Is Satisfied Setting a trigger condition allows you to search measured data for positions where the trigger condition is satisfied. > Click the [Target channel] box, and then from the channel setting dialog box, choose a channel to be searched for positions where a trigger condition is satisfied.
  • Page 133 Searching For Positions Where a Trigger Condition Is Satisfied Click the [Number of searches] box, and then enter the number of search results. In the [Method] area, click [Trigger] to choose a search method for searching for triggers. Set search criteria. -1.
  • Page 134 Searching For Positions Where a Trigger Condition Is Satisfied (2) With the [In] [Out] setting [In] [Out] Upper limit value Upper limit value Lower limit value Lower limit value Setting Description Filter  Allows you to enter a filter width in the number of samples. Positions where a search criterion is continuously satisfied during the specified 10,000 period are determined to be the retrieved positions.
  • Page 135 Searching For Positions Where a Trigger Condition Is Satisfied Click [Execute]. The instrument puts search marks ( ) on positions where the search criterion is satisfied. You can search for up to 10,000 points. The instrument stops the search if it finds more than 10,000 positions. The retrieved position switching panel appears on the waveform screen.

  • Page 136: Searching For Differences From A Fundamental Wave (Memory Hiconcierge)

    Searching For Differences from a Fundamental Wave (Memory HiConcierge) 6.3 Searching For Differences from a Fundamental Wave (Memory HiConcierge) Using Memory HiConcierge allows you to detect differences from the specified fundamental waveform based on a histogram or standard deviation. > Click the [Target channel] box, and then from the channel setting dialog box, choose a...
  • Page 137 Searching For Differences from a Fundamental Wave (Memory HiConcierge) Use the [Period setting] toggle switch to choose a period setting used for searches. The instrument searches for differences from the fundamental wave (or the previous waveform) in the specified intervals. Auto The instrument automatically saves calculation results.

  • Page 138: Jump To The Specified Position

    Jump to the Specified Position 6.4 Jump to the Specified Position The display can jump to the specified time, trace cursor position, event number, trigger point, or search mark. > In the [Method] area, click [Jump] to set the search method to the jump method. Click the [Type] box, and then from the list, choose a type to jump to.

  • Page 139: Numerical Calculation Function

    Numerical Calculation Function The instrument makes calculations using acquired waveform data to numerically displays calculation results on the waveform screen. The instrument can evaluate these calculation results on a pass/fail basis. > [Calculation] > [Numerical calculation] Operation available on the [Numerical calculation] screen Numerical Calculation...

  • Page 140: Numerical Calculation Procedure

    Numerical Calculation Procedure 7.1 Numerical Calculation Procedure The following two methods are available: Automatically making You have to configure the FFT calculation settings before starting calculations after measurement. measurement (not available when the real-time save is set to on) Making calculations using The instrument can make calculations using waveform data that has existing data already been acquired or that saved on storage devices.
  • Page 141 Numerical Calculation Procedure Making calculations using existing data (Loading data) (To load measured data from a storage device to use for (p. 94) calculation) Configuring the calculation Configure the calculation settings on the [Numerical (p. 136) settings calculation] screen. (p. 148) Set evaluation criteria to evaluate calculation results.

  • Page 142: Configuring The Numerical Calculation Settings

    Configuring the Numerical Calculation Settings 7.2 Configuring the Numerical Calculation Settings > [Calculation] > [Numerical calculation] Click the [Numerical calculation] button to set it to [On]. Click the [Page] box, and then choose calculation numbers. You can specify up to 108 numerical calculations.
  • Page 143 Configuring the Numerical Calculation Settings Click the [Calculation Type] box, and then choose a calculation type from the list.  The instrument does not perform any calculation. Average value Average value of waveform data RMS value of waveform data Peak-to-peak value of waveform data Maximum Maximum value of waveform data Time to maximum...
  • Page 144 Configuring the Numerical Calculation Settings Click the [Area] box, and then choose an option for a calculation range. You can specify a calculation range for each calculation. Whole  Makes calculations using whole waveforms. Makes calculations using waveforms between trace cursors A and B. Makes calculations using waveforms between trace cursors C and D.
  • Page 145 Configuring the Numerical Calculation Settings Calculation target channels and setting contents of calculation conditions for each calculation type Calculation type Setting Description Example of screen Average value Target channel Allows you to specify (Analog, waveform calculation target calculation) channels. Maximum Time to maximum Minimum Time to minimum...
  • Page 146 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Allows you to specify Period Target channel calculation target Frequency (Analog, logic, waveform channels. Pulse width calculation) Duty ratio The instrument makes Level* calculations using values based on a period of time when a waveform crossed the level specified here.
  • Page 147 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Allows you to specify Rise time Target channel calculation target Fall time (Analog, waveform channels. calculation) Allows you to specify Time which part of a (5%→95%  30% → waveform between the 95% →...
  • Page 148 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Allows you to specify Time to level Target channel calculation target Pulse count (Analog, logic, waveform channels. calculation) Detects the time when Level* a waveform crossed the level specified here or a pulse count that crossed the level.
  • Page 149 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Allows you to specify Level at time Target channel calculation target (Analog, logic, waveform channels. calculation) Allows you to set the Method: Negative time-specifying method. Allows you to enter a Time ...
  • Page 150 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Allows you to specify Burst width Target channel calculation target (Analog, logic, waveform channels. calculation) Detects rising edges Slope  and calculates a burst (Logic channels width. only) Detects falling edges and calculates a burst width.
  • Page 151 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Time difference Reference channel, Allows you to specify Phase contrast Target channel the reference channel (Analog, logic, waveform and the target channel. calculation) The instrument Level* calculates the value based on the time when the waveform crossed the level specified here.
  • Page 152 Configuring the Numerical Calculation Settings Calculation type Setting Description Example of screen Arithmetic Calculation number Allows you to specify operations Calculation number 2 two numerical (No. 1 through No. 107) calculation numbers to use for calculations. Target channel Allows you to specify a target channel that has a numerical calculation number to use for...

  • Page 153: Displaying Numerical Calculation Results

    Configuring the Numerical Calculation Settings Displaying numerical calculation results You can check calculation results on the waveform screen. > [Numeric Calc.] • You can display or hide the screen of the numerical calculation results every time you click info]. • If no periods are found or a calculation is aborted, the character string [******] appears instead of a calculation result.

  • Page 154: Evaluating Calculation Results On A Pass/Fail Basis

    Evaluating Calculation Results on a Pass/Fail Basis 7.3 Evaluating Calculation Results on a Pass/Fail Basis You can specify evaluation criteria ([Up] and [Low]) to evaluate numerical calculation results on a pass/fail basis. Each numerical calculation can has different evaluation criteria. The waveform acquisition process varies depending on the recording mode setting ([Single] [Repeat]) and the stop condition specified to stop the measurement depending on an evaluation...
  • Page 155 Evaluating Calculation Results on a Pass/Fail Basis > [Calculation] > [Numerical calculation] Click the [Judge stop condition] box, and then from the list, choose a stopping condition applied according to judgments. PASS Stops measurement when a calculation result falls within a criteria range (pass judgment).

  • Page 156: Displaying Evaluation Results And Externally Outputting Signals

    Evaluating Calculation Results on a Pass/Fail Basis Displaying evaluation results and externally outputting signals The numerical calculation result screen of the waveform screen displays numerical calculation evaluation results. Values that fall within an evaluation criteria range: Pass judgment Values outside an evaluation criteria range: Fail judgment (highlighted in red) When a pass judgment is given When the external output terminals (OUT 1, OUT 2) are set to [Judge(Pass)], a PASS signal is output from the external output terminals (OUT 1, OUT 2).

  • Page 157: Numerical Calculation Types And Descriptions

    Numerical Calculation Types and Descriptions 7.4 Numerical Calculation Types and Descriptions Calculation Description type Calculates an average value of waveform data. ���� ������������ = ∑ �������� ���� AVE : Average value Average value ����=1 n: Number of data points di: ith data point acquired across the channel Calculates an RMS value of waveform data.
  • Page 158 Numerical Calculation Types and Descriptions Calculation Description type Calculates a A%-to-B% rise time (or a B%- to-A% fall time; unit: s) based on the 0% and 100% levels based on a histogram (frequency distribution) of acquired waveform data. The instrument calculates a rise time (or fall time) of the first rising (or falling) slope Rise time Fall time...
  • Page 159 Numerical Calculation Types and Descriptions Calculation Description type Calculates an area enclosed by the zero-level (zero-potential) line and the negative-amplitude part of a signal waveform. Area When the range is specified, calculates the area Method: between the cursors. Negative s s s (Only the : Area ∑...
  • Page 160 Numerical Calculation Types and Descriptions Calculation Description type When a Y data point corresponds to an X data point X-axis (Y = 0) End point Start point Area = − Area End point Start point X-axis (Y = 0) X-axis (Y = 0) Start point End point Area...
  • Page 161 Numerical Calculation Types and Descriptions Calculation Description type Counts the number of pulses that crossed the specified level in the positive (or negative) direction. For the pulse counts, it is considered as one count that a period between the point when a Level Pulse count pulse crossed the level in the positive direction...
  • Page 162 Numerical Calculation Types and Descriptions Calculation Description type Calculates a ratio of a difference between the maximum (or minimum) value and a high (or Overshoot Number of data points low) level to a difference between a high and High low levels, which are calculated letting 0% and 100% level 100% of acquired waveform data be them,...
  • Page 163 Numerical Calculation Types and Descriptions Calculation Description type Calculates an accumulation (unit: V) enclosed by the zero-level (zero-potential) line and the Accumulation positive-amplitude part of a signal waveform. Method: When the range is specified, calculates the Positive accumulation between the cursors. (Only the S: Accumulation positive-...
  • Page 164 Numerical Calculation Types and Descriptions...

  • Page 165: Waveform Calculation Function

    Waveform Calculation Function The instrument makes calculations using acquired waveform data and pre-defined arithmetic expressions to numerically display calculation results on the waveform screen. When the real-time save is set to [On], you cannot use the waveform calculation function. > [Calculation] > [Waveform calculation] Operation available on the [Waveform calculation] screen...

  • Page 166: Waveform Calculation Procedure

    Waveform Calculation Procedure 8.1 Waveform Calculation Procedure The following two methods are available: Automatically making You have to configure the waveform calculation settings before calculations after starting measurement. measurement (not available when the real-time save is set to on) Making calculations using The instrument can make calculations using waveform data that has existing data already been acquired or that saved on storage devices.
  • Page 167 Waveform Calculation Procedure Calculating existing data (To load measured data from a storage device to use for (p. 94) (Loading data) calculation) Configuring the calculation Configure the calculation settings on the [Waveform (p. 162) settings calculation] screen. Performing calculation Choose [Execute] to execute calculations.

  • Page 168: Configuring Waveform Calculation Settings

    Configuring Waveform Calculation Settings 8.2 Configuring Waveform Calculation Settings > [Calculation] > [Waveform calculation] Click the [Waveform calculation] button to set it to [On]. Click any of the channels, [Z1] through [Z16], you want to specify a arithmetic calculation to set it to [On].
  • Page 169 Configuring Waveform Calculation Settings When a constant is used. Click [Constant], and then specify constants to be used for calculation. The numerical entry dialog box appears. Click a box that has an alphabet you want to allocate a constant to. The numerical entry dialog box appears.
  • Page 170 Configuring Waveform Calculation Settings Click to the arithmetic expression field and enter an arithmetic expression. (When choosing a channel) Click [Channel] and choose a channel you want to use for calculation. (When entering a constant) Click [Constant], and then enter a numerical value (p. 162). Click the [Comment] box, and then enter a comment.
  • Page 171 Configuring Waveform Calculation Settings Click the [Display] button to set it to [On] or [Off].  Displays no calculated waveform. Displays a calculated waveform. Click the color button to the right of the [Display] button, and then choose a waveform display color from the color pallet.
  • Page 172 Configuring Waveform Calculation Settings (To manually specify the scale setting for the calculation result) (1) Click the arrow buttons to choose a calculation channel. (2) Click [Upper and lower limit value] to specify the upper and lower limit values of the calculation result.
  • Page 173 Configuring Waveform Calculation Settings When an expression includes an operator MOV, SLI, DIF, DIF2, PLEVEL, or ATAN2 (about second parameter) The operators above require a comma and second parameter to follow the first parameter, which is enclosed in parentheses. Examples of operators and settings Operator Setting Setting example...
  • Page 174 Configuring Waveform Calculation Settings Calculation result Example: To display the waveform processed through the absolute value calculation using a waveform acquired across CH1_1 Arithmetic expression Z1= ABS(CH(1,1)) Waveform acquired across CH1-1 Calculated absolute value Z1...

  • Page 175: Operators Of Waveform Calculation And Calculation Results

    Operators of Waveform Calculation and Calculation Results 8.3 Operators of Waveform Calculation and Calculation Results : ith data point of calculation results, d : ith data point acquired across the source channel Waveform calculation Description type Makes calculations using operators specified from the four arithmetic operations, which Four arithmetic consists of addition (+), subtraction (−), multiplication (×), and division (÷).
  • Page 176 Operators of Waveform Calculation and Calculation Results : ith data point of calculation results, d : ith data point acquired across the source channel Waveform calculation Description type With d > 1 = π / 2 With −1 ≤ d ≤...
  • Page 177 Operators of Waveform Calculation and Calculation Results : ith data point of calculation results, d : ith data point acquired across the source channel Waveform calculation Description type To calculate values of 1st-order and 2nd-order integration, the instrument uses the trapezoidal formula.
  • Page 178 Operators of Waveform Calculation and Calculation Results : ith data point of calculation results, d : ith data point acquired across the source channel Waveform calculation Description type Calculates a measured value at a time a specified time has elapsed from a trigger Level point to use this numerical calculation Level at time...

  • Page 179: Memory Dividing Function

    Memory Dividing Function You can divide the memory capacity into several blocks, each of which is used to store waveforms. > [Status] > [Condition] Operation available with the memory dividing function • You can divide the memory capacity into several blocks and save waveforms onto any blocks. •...

  • Page 180: Configuring The Memory Division Settings

    Configuring the memory division settings 9.1 Configuring the memory division settings > [Status] > [Condition] Click the [Memory divide] button to set it to [On]. Click the [Division] box, and then enter the number of blocks the memory capacity is divided into.

  • Page 181: Displaying Waveforms

    Displaying Waveforms 9.2 Displaying Waveforms You can choose a block to display waveforms stored in it. Choose a block number you specified. Waveform calculation with the memory dividing setting • With the memory dividing enabled, waveforms Z1 through Z16, which are obtained through waveform calculations, remain in the block finally calculated only.
  • Page 182 Displaying Waveforms...

  • Page 183: Configuring The System Environment Settings

    Configuring the System Environment Settings You can configure the system environment settings for the instrument. IMPORTANT ® Do not change any Windows setting unless otherwise indicated in this document. Doing so may cause unstable system operation. > [System] > [Env.] Click the [Drawing Start_Position] box, and then choose a start position of the scrolling...
  • Page 184 Click the [Grid] button to choose a grid display setting of the waveform screen.  Displays the solid-line grid. Does not display any grids. Click the [Waveform screen background color] box, and then from the list, choose a background color of the waveform screen. Some background colors of waveforms may cause waveforms to get difficult to see.
  • Page 185 Click [Date and time], and then set the clock. Refer to “2.7 Setting the Clock” in Quick Start Manual. Change the display languages. (1) Click [Language: English]. The setting dialog box appears. (2) Click the [Display language] box, and then choose a user interface language from the list. English ...

  • Page 187: Connecting The Instrument To Computers

    Connecting the Instrument to Computers Familiarize yourself with the section “Before connecting to an external device” in “Operation Precautions” of Quick Start Manual. This instrument is equipped with the Ethernet 1000BASE-T interface for LAN communications. You can control the instrument using computers or other devices connected to your network with 10BASE-T, 100BASE-TX, or 1000BASE-T cable (maximum length: 100 m).

  • Page 188: Configuring The Lan Settings And Connecting The Instrument To The Network

    Configuring the LAN Settings and Connecting the Instrument to the Network 11.1 Configuring the LAN Settings and Connecting the Instrument to the Network Configure the LAN settings of the instrument and connect the instrument to your computers with LAN cables before accessing the instrument from your computers using the FTP or a web browser, or using command communication.
  • Page 189 Configuring the LAN Settings and Connecting the Instrument to the Network Setting items > [System] > [Comm.] Click [Ethernet 1] [Ethernet The Ethernet settings screen appears. Enter the necessary items. The IP addresses are used to identify individual devices on the network. IP Address Assign a unique address different from that of other devices.
  • Page 190 Configuring the LAN Settings and Connecting the Instrument to the Network Renaming the computer [Current PC name] This name in the box identifies the instrument on the network. If necessary, change the computer name to a unique one among the network devices. >...
  • Page 191 Configuring the LAN Settings and Connecting the Instrument to the Network LAN setting procedure Follow this procedure in accordance with the intended usage. For details on each setting, refer to “Setting items” (p. 183). For details on your network including the IP address, contact your network administrator. Directly connecting Intended use Connecting the instrument to the existing network...

  • Page 192: Managing Data In The Instrument With The Ftp Server Function

    Managing Data in the Instrument With the FTP Server Function 11.2 Managing Data in the Instrument With the FTP Server Function Configuring the FTP sever setting with the instrument The following example shows how to configure the FTP server settings on Windows 10. ®...
  • Page 193 Managing Data in the Instrument With the FTP Server Function Click on the left of [Internet Information Services] to expand it. Click on the left of [FTP Server] to expand it, and then choose [FTP Service]. Click on the left of [Web Management Tools] to expand it,...
  • Page 194 Communication may be blocked depending on the settings of the computer-protecting software (example: firewall). Enter site information. Example: [FTP site name]: [MR8740T] [Content Directory]: Choose a directory in which data from the FTP client will be saved. Click [Next]. Configure the [Binding]...
  • Page 195 Managing Data in the Instrument With the FTP Server Function Configure the [Authentication and Authorization Information] settings as follows: [Authentication] Choose [Basic]. [Authorization] [All users] Choose both [Read] [Permissions] and [Write]. Click [Finish].
  • Page 196 Managing Data in the Instrument With the FTP Server Function Configure the access user setting Configure this setting to use the FTP client with the instrument. See step 4 on p. 191.) See step 4 in ). You can use the FTP with a user name and password you specified. Choose [Computer Management] [Administrative Tools]...

  • Page 197: Configuring The Ftp Client Setting With The Instrument

    Managing Data in the Instrument With the FTP Server Function Configuring the FTP client setting with the instrument > [System] > [Comm.] Click [FTP Client]. The setting dialog box will appear. Click the [Server] box and the [Port] button in turn. The key pad and numerical value entry dialog box appears.

  • Page 198: Sending Data To A Computer With The Ftp Client Function

    Sending Data to a Computer With the FTP Client Function 11.3 Sending Data to a Computer With the FTP Client Function The instrument is equipped with the FTP transmission function (FTP client). You can send data to the FTP server on the network. FTP transmission method Real-time save data transmission Automatically sends waveform data during measurement.

  • Page 199: Configuring An Ftp Server Setting On A Computer

    Sending Data to a Computer With the FTP Client Function Configuring an FTP server setting on a computer The following example shows how to configure the FTP server settings on Windows 10. ® ® The Microsoft Windows Home Edition does not include any FTP server. Use free software such as the FileZilla Server.
  • Page 200 Sending Data to a Computer With the FTP Client Function Configuring the FTP settings Click [System and Security] [Control Panel]. Click [Administrative Tools]. Double-click [Internet Information Services (IIS) Manager]. Right-click on the item displayed under [Connections] on the left side of the screen to display the shortcut menu, then click [Add Site].
  • Page 201 Sending Data to a Computer With the FTP Client Function Enter site information. Example: [FTP site name]: [MR8740T] [Content Directory]: Choose a directory in which data from the FTP client will be saved. Click [Next]. Configure the [Binding] [SSL] settings as follows:...
  • Page 202 Sending Data to a Computer With the FTP Client Function Configure the access user setting Configure this setting to use the FTP client with the instrument. (See step 4 “Enter your login name and password in the [Login] and [Password] boxes, respectively” on p. 197.) You can use the FTP with a user name and password you specified.

  • Page 203: Configuring The Ftp Client Setting With The Instrument

    Sending Data to a Computer With the FTP Client Function Configuring the FTP client setting with the instrument > [System] > [Comm.] Click [FTP Client]. The setting dialog box will appear. Click the [Server] box and the [Port] button in turn. Click the boxes to open the touch key or the numeric input dialog box.

  • Page 204: Sending Email Messages

    • Files are encrypted by 128-bit AES encryption. Presently, this encryption method is sufficiently strong; however, Hioki does not guarantee that files are never decrypted. • Do not reveal your encryption password to outsiders. Note that you cannot decrypt any files if you forget your password or enter an invalid password.

  • Page 205: Configuring The Basic Setting For Sending Email Messages

    Sending Email messages Configuring the basic setting for sending email messages > [System] > [Comm.] Click [Mail setting]. The setting dialog box will appear. 3, 4 Click the [Mail settings] button to set it to [On]. Click [Basic]. Click [Address1] to choose it, and then enter an email address in the blank box.

  • Page 206: Configuring The Email Contents Settings

    Sending Email messages Configuring the email contents settings Click [Body]. Click the [Title] box, and then enter a mail title. Click the [Body] box, and then enter an email body. Click the [Maximum attachment size] button, and then enter the maximum attachment size. 2048 ...

  • Page 207: Configuring The Authentication, Compression, And Encryption Settings For Email Messages To Be Sent

    Sending Email messages Configuring the authentication, compression, and encryption settings for email messages to be sent Click [Advanced]. Click the [Encrypt attached file] box, and then choose an attachment setting from the list.  Attaches files in original format. Attaches ZIP-compressed files. ZIP+AES Attaches files in encrypted ZIP format.
  • Page 208 Sending Email messages Make sure that the email can normally be sent. Click [Send test mail]. A test email that includes the specified contents is sent. Make sure that the specified destination can correctly receive the test email message. If the specified destination cannot receive the test email message, review your settings.

  • Page 209: Controlling The Instrument With Command Communications (Lan)

    Controlling the Instrument with Command Communications (LAN) 11.5 Controlling the Instrument with Command Communications (LAN) You can externally control the instrument using commands via the communication interface. Communications can be established with a LAN connection. For details, refer to the Communication Command Instruction Manual on the accompanying application disc.
  • Page 210 Controlling the Instrument with Command Communications (LAN) Click [Port number] box, and then enter the most significant 3 digits of the 4-digit port number. The last digit is fixed at [2]. Click the [Character code] box, and then choose a character code setting from the list. Automatically specifies a text code depending on the display language.

  • Page 211: Operating The Instrument With A Browser Installed In A Computer

    Operating the Instrument With a Browser Installed in a Computer 11.6 Operating the Instrument With a Browser Installed in a Computer You can configure the instrument settings, display waveforms , and acquire data from a computer ® with a web browser, such as Internet Explorer , installed in the instrument or your computer .
  • Page 212 Operating the Instrument With a Browser Installed in a Computer When the IP address of the instrument is “192.168.0.2” Configure settings of the instrument using the web browser (1) Web browser menu Setting Home Allows you to configure settings of the instrument Displays measured waveforms (cannot display waveforms during Wave view measurement)
  • Page 213 Operating the Instrument With a Browser Installed in a Computer (3) Choosing slots (With the Unit/Channel setting enabled) You can switch slots. (4) Detailed settings You can configure advanced settings the instrument.
  • Page 214 Operating the Instrument With a Browser Installed in a Computer...

  • Page 215: Externally Controlling The Instrument

    Externally Controlling the Instrument Familiarize yourself with the section “Before connecting to an external device” in “Operation Precautions” of Quick Start Manual. Connecting the external control terminals with external devices allows the instrument to start and stop measurement. This section describes the procedure and the external control terminal function to externally control the instrument.

  • Page 216: External Input And Output

    External Input and Output 12.1 External Input and Output External input (IN1), (IN2) Externally inputting signals can start and stop measurement as well as save data. In factory default settings, the START signal is assigned to the IN1, and the STOP signal to the IN2 terminal.

  • Page 217: External Output (Out1), (Out2)

    External Input and Output Connect the terminal to GND. Otherwise, input pulse waves or rectangular waves to the terminal. The signal shall have a high-level voltage of between 2.5 V and 10 V and a low-level voltage of between 0 V and 0.8 V. The low level of the input waveform activate the input circuit, controlling the instrument.
  • Page 218 External Input and Output Click the [OUT1] [OUT2] boxes in the [External out] area in turn, and then from the list, choose a signal output action. Choose a condition where the instrument outputs a signal. Judge(Pass) Outputs a low-level signal when a pass judgment is given for the numerical calculation result.

  • Page 219: Trigger Output (Trig.out)

    External Input and Output Trigger output (TRIG.OUT) The instrument outputs the signal when it is triggered. You can use this signal to control multiple instruments, achieving synchronous operation. How to output the signal Connect each of the TRIG OUT and GND terminals to an external signal-inputting device with wires.
  • Page 220 External Input and Output High 4.0 V to 5.0 V 10 kΩ TRIG OUT 0 V to 0.5 V Pulse width 100 kΩ When the auto-range function is used, the instrument is triggered, outputting the TRIG OUT signal. Be careful when performing auto-range measurement while using the TRIG OUT signals.

  • Page 221: External Trigger Terminal (Ext.trig)

    External Input and Output External trigger terminal (EXT.TRIG) Externally inputting the trigger signal can trigger the instrument. You can use this signal to control multiple instruments, achieving synchronous operation. How to an input signal Connect each of the EXT.TRIG and GND terminals to an external signal-outputting device with wires.
  • Page 222 External Input and Output Click [External trigger]. The setting dialog box will appear. (1) Set [External start trigger] to [On]. (2) Click the box to the right of the [External start trigger] box, and then from the list, choose which direction to use for reception of the external trigger. With the rising edge setting: With the falling edge setting: (3) Click the...

  • Page 223: External Sampling (Ext.smpl)

    External Sampling (EXT.SMPL) 12.2 External Sampling (EXT.SMPL) Externally inputting the signal can control the sampling rate. How to an input signal Connect each of the EXT.SMPL and GND terminals to an external signal-outputting device with wires. > [Status] > [Condition] Click the [External sampling] button to set it to [On].
  • Page 224 External Sampling (EXT.SMPL)

  • Page 225: Appendix

    Appendix 13.1 Information for Reference Purposes Waveform file size (values for reference purposes) Waveform file size (for reference) (MEM file size) = (Setting part size) + (Data part size) (Setting part size) = 791040 + 512 × [(Number of analog channels) + 4 × (Number of logic channels) + (Number of real-time calculation channels)] (Data part size) = {2 ×...
  • Page 226 Information for Reference Purposes Waveform (text) file size (Text file size) = (Header part size) + (Data part size) (Header part size) = (About 14 KB at a maximum) (varies depending on the setting condition) (Data part size) = [24 + 14 × (Number of analog channels) + 32 × (Number of logic modules) + 14 × (Number of real-time calculation channels)] ×...

  • Page 227: Maximum Recordable Time When The Real-Time Save Is Enabled (Values For Reference Purposes)

    Information for Reference Purposes Maximum recordable time when the real-time save is enabled (values for reference purposes) The maximum recordable time is expressed in the following equation. (Maximum recordable time) = [(Recording capacity) × (Sampling time)] ÷ [(Number of channels used) × 2] (Number of channels used) = [(Number of analog channels other than Model MR8990) + (Number of logic modules) + (Number of Model MR8990 channels)] ×...
  • Page 228 Information for Reference Purposes For saving data on Model Z4006 USB Drive d: days, h: hours, min: minutes, s: seconds Number of channels used Sampling rate 4 (16 channels) 8 (32 channels) 16 (64 channels) 27 (108 channels) 1 MS/s* 8 min 20 s –...

  • Page 229: Scaling Method For Strain Gauges

    Information for Reference Purposes Scaling method for strain gauges This section describes how to determine the scaling conversion ratio when measurement is performed with strain gauges and Model U8969 Strain Unit. The appropriate conversion equation into stress varies depending on how the strain gauges are used.
  • Page 230 Information for Reference Purposes Mechanical properties of industrial materials Modulus of longitudinal elasticity (Young’s Poisson’s ratio Material modulus) E (GPa) ν Carbon steel (Carbon 0.28 to 0.3 content: 0.1% to 0.25%) Carbon steel (Carbon 0.28 to 0.3 content: 0.25% or more) Spring steel (Quenched) 206 to 211 0.28 to 0.3...

  • Page 231: Example Of A Waveform Text File

    Information for Reference Purposes Example of a waveform text file The waveform text file consists of a header and data. The header includes the following information: (1) Title comment (2) Recording length, sampling rate, trigger time (3) Channel number, module type, measurement range, LPF, channel comment, scaling (setting, conversion ratio, offset), invert Saves data.
  • Page 232 Information for Reference Purposes...
