Configuring Input Channels

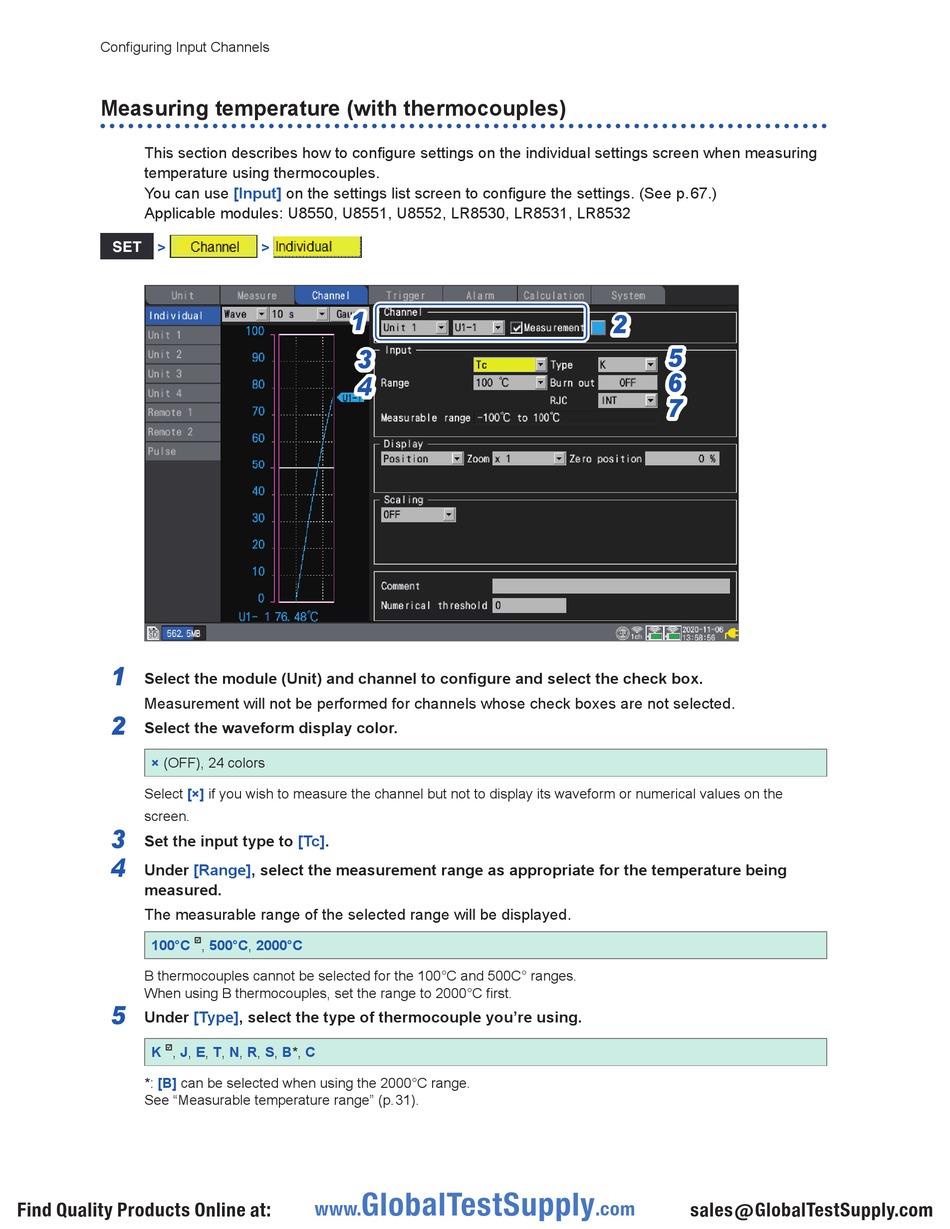

Measuring temperature (with thermocouples)

This section describes how to configure settings on the individual settings screen when measuring
temperature using thermocouples.
You can use
Applicable modules: U8550, U8551, U8552, LR8530, LR8531, LR8532
>
1
Select the module (Unit) and channel to configure and select the check box.
Measurement will not be performed for channels whose check boxes are not selected.
2
Select the waveform display color.
× (OFF), 24 colors
Select [×]
screen.
3
Set the input type to [Tc].
4
Under [Range], select the measurement range as appropriate for the temperature being
measured.
The measurable range of the selected range will be displayed.
100°C

B thermocouples cannot be selected for the 100°C and 500C° ranges.
When using B thermocouples, set the range to 2000°C first.
5
Under [Type], select the type of thermocouple you're using.
K , J, E, T, N, R, S, B*,

*: [B] can be selected when using the 2000°C range.
See "Measurable temperature range" (p. 3 1).
Find Quality Products Online at:
[Input] on the settings list screen to configure the settings. (See p. 6 7.)
>
1 1
3 3
4 4
if you wish to measure the channel but not to display its waveform or numerical values on the
, 500°C, 2000°C
C
