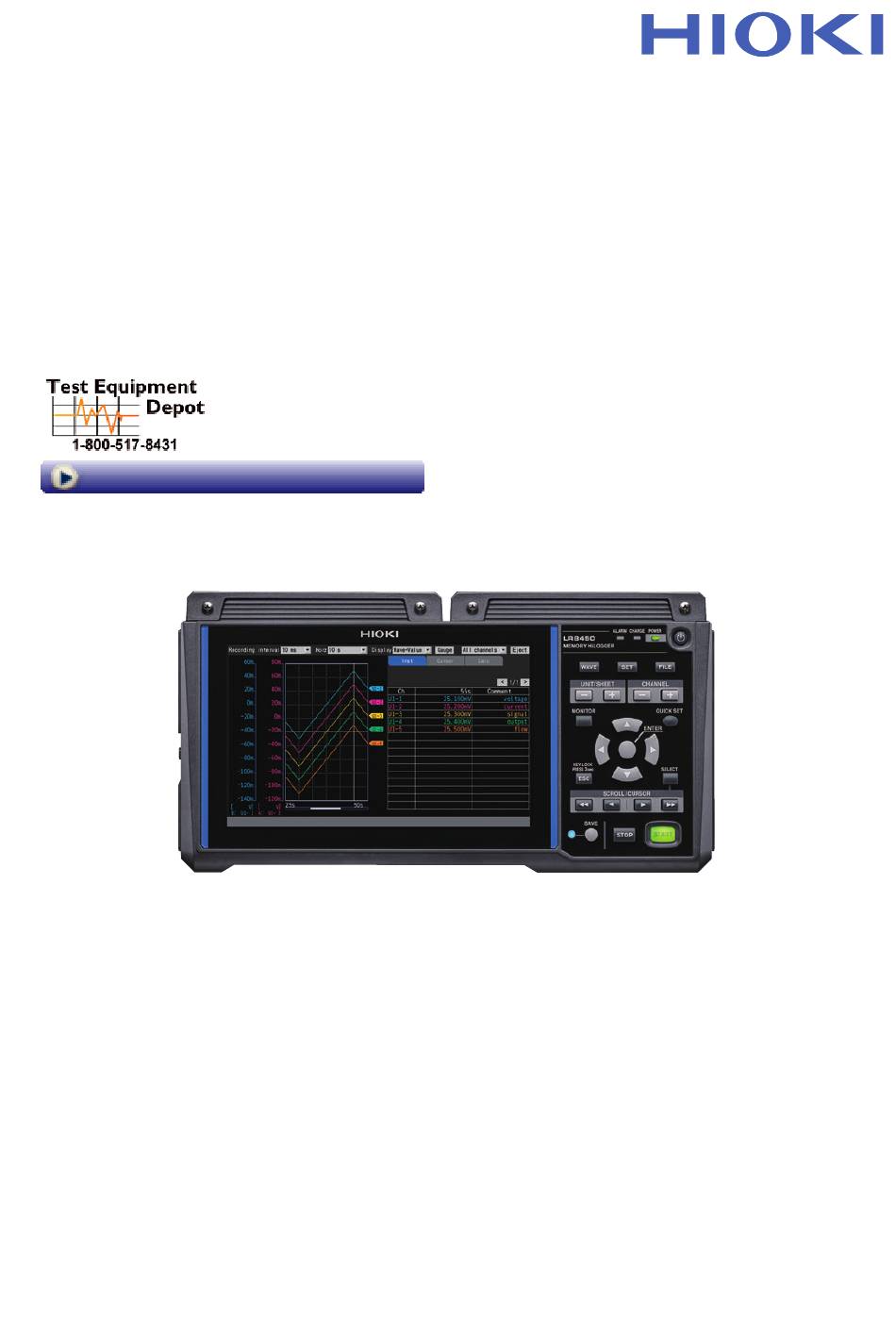

Page 1 LR8450 LR8450-01 Instruction Manual MEMORY HiLOGGER 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Feb. 2020 Edition 1 LR8450A964-00 20-02H...
Page 2: Table Of Contents
Contents Introduction 1.12 Using the A/B Cursors ............1 ......75 About the Notations Used in This Manual ..75 ..2 Reading values from the waveforms ....77 Specifying a waveform range How to Use This Manual .........4 1.13 Configuration Navigator (Quick Set) ..........78 Settings and Operation Strain gage connection diagram ....78 ...79 External control terminal pin names...
Page 3 Contents Alarm (Alarm Output) External Control (EXT. I/O) 4.1 Configuring Alarms ......130 Setting shared alarm conditions for all 8.1 Configuring Voltage Output channels ..........130 (VOUTPUT) .........174 Configuring channel-specific alarm 8.2 Configuring Alarm Output ...........133 settings (ALARM) ..........175 Checking Alarms .........137 8.3 Configuring External Input/Output (I/O) Terminals ........177 Marking Functionality .......179 External trigger input .........180...
Page 4 Contents Specifications 10.1 Basic Specifications ......231 ..231 LR8450/LR8450-01 Memory HiLogger 10.2 Plug-in Module Specifications ..243 ......243 U8550 Voltage/Temp Unit ......249 U8551 Universal Unit ......255 U8552 Voltage/Temp Unit U8553 High Speed Voltage Unit ....262 U8554 Strain Unit ........265 Knowledge and Information 11.1 Measuring Temperature .....269 11.2 Measuring Strain ........270...
Page 5: Introduction
Introduction Introduction Thank you for purchasing the Hioki LR8450/LR8450-01 Memory HiLogger. To ensure your ability to get the most out of the instrument over the long term, please read this manual carefully and keep it available for future reference. The LR8450-01 Memory HiLogger adds wireless LAN functionality to the LR8450.
Page 6: About The Notations Used In This Manual
About the Notations Used in This Manual About the Notations Used in This Manual Safety notations This manual classifies seriousness of risks and hazard levels as described below. Indicates an imminently hazardous situation that, if not avoided, will result in DANGER death of or serious injury to the operator.
Page 7 Example: 20 MS/s (20 megasamples per second) signifies 20×10 samples per second. Accuracy Hioki defines tolerances for measured values in terms of f.s. (full scale), as indicated below. Maximum display value, scale magnitude Indicates the maximum display value or scale magnitude. Generally speaking, the f.s. f.s.
Page 8: How To Use This Manual
How to Use This Manual How to Use This Manual How to open screens : Main tab : Sub tab Step number Numbers are the same as those used in the instructions. Selections and explanations Indicates the selections that can be made by pressing the ENTER key and explains them.
Page 9: Settings And Operation
Settings and Operation This chapter introduces basic settings and instrument operation. Before starting measurement, you must set measurement conditions such as recording interval and range. You must also configure input channel settings such as input signal types and ranges. 1.1 Performing Basic Operations ..........p. 6 1.2 Setting Measurement Conditions ........p. ...
Page 10: Performing Basic Operations
Performing Basic Operations 1.1 Performing Basic Operations Instructions   > > : main tab; : sub tab)   In this manual, the active item is said to have “focus.” The background of the selected item will turn yellow. Press the key to display the settings screen.
Page 11: Value Entry Method
Performing Basic Operations Value entry method This section describes how to enter values. Numerical value entry window Clear Clears the value. Deletes one digit (backspace). ← Moves left one digit. → Moves right one digit. Accepts the value. Cancel Closes the window without entering a value. Select the desired value with the Left Arrow,...
Page 12: Text Entry Method
Performing Basic Operations Text entry method This section describes how to enter comments and filenames. You can enter single-byte alphanumeric and characters only. Text entry window Select a character with the Left Arrow, Right Arrow, Arrow, and Down Arrow keys and press the ENTER key.
Page 13 Performing Basic Operations Text entry You can perform the operations listed below by choosing the operation on the screen and pressing ENTER key. You can also use the corresponding key to perform the same operation. Operation on screen Corresponding key Description START Accepts the character.
Page 14: Setting Measurement Conditions
Setting Measurement Conditions 1.2 Setting Measurement Conditions This section describes how to configure settings such as the recording interval and recording time. Settings cannot be changed while measurement is in progress. Stop measurement and then change the settings. You can select the recording method. Sets the recording time setting to [Continuous].
Page 15 Normal Data is recorded in synchronization with the internal clock.  The setting cannot be changed from [Normal]. Hioki plans to add new functionality in the future. Under [Recording interval], select the data capture interval.
Page 16 Setting Measurement Conditions Under [Recording time], set the amount (length) of time for which you wish to record data. Specified time Records for the set amount of time. (Max. 500 days) Days, hours, minutes, seconds Continuous Recording will continue until you press the STOP key.
Page 17: Measurement Module Data Refresh Intervals
Setting Measurement Conditions Measurement module data refresh intervals This section describes how to set the data refresh interval for each measurement module separately from the instrument’s recording interval. Data refresh interval Interval at which measurement modules refresh measurement data Interval at which the instrument captures data from measurement Recording interval modules >...
Page 18 Setting Measurement Conditions Under [Filter], check the filter’s cutoff frequency. The filter’s cutoff frequency will change depending on the data refresh interval setting. Check the cutoff frequency that is displayed for each module. Relationship between the data refresh interval and the recording interval •...
Page 19 Setting Measurement Conditions Example setting What you want to do Data refresh interval Recording interval Record a signal that’s changing quickly Shorter Shorter (electrical signal, etc.) Record a signal that’s changing slowly Longer Longer (temperature, etc.) Record fast and slow signals at the same time Shorter for modules used to Shorter measure fast signals...
Page 20: Configuring Input Channels
Configuring Input Channels 1.3 Configuring Input Channels Configure input channels for voltage measurement, temperature measurement, etc. Un-m Channel The letters n and m represent a module number and a channel number, respectively. Selects the type of measurement target. Input Voltage, thermocouple, humidity, etc. Range Sets the magnitude of the input signal.
Page 21 Configuring Input Channels Individual settings screen A settings screen will be displayed for each channel. Under [Channel], select the module and channel to configure. Configure the range and display for the selected channel. A waveform monitor is shown on the left side of the screen. You can also switch the display format to show numerical values.
Page 22 Configuring Input Channels Settings list screen This screen displays a list of settings for each module. For more information about the settings list screen, see “1.7 Configuring Channels in a List” (p. 5 0). The following settings can be configured on the settings list screen: •...
Page 23: Measuring Voltage
Configuring Input Channels Measuring voltage This section describes how to configure settings on the individual settings screen when measuring voltage. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8550, U8551, U8552, U8553, U8554, LR8530, LR8531, LR8532, LR8533, LR8534 >...
Page 24 Configuring Input Channels (For the U8554 or LR8534 Strain Unit) Under [Filter], select the cutoff frequency. Auto 4 Hz  See the table in “Measuring strain” (p. 2 7) for a list of cutoff frequencies when [Auto] is selected. When measuring instrumentation devices Ω...
Page 25: Measuring Temperature (With Thermocouples)
Configuring Input Channels Measuring temperature (with thermocouples) This section describes how to configure settings on the individual settings screen when measuring temperature using thermocouples. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8550, U8551, U8552, LR8530, LR8531, LR8532 >...
Page 26 Configuring Input Channels Under [Burn out], select whether you wish to detect wire breaks.  Does not detect thermocouple wire breaks. Values will vary when a thermocouple experiences a wire break. Detects thermocouple wire breaks when measuring temperature using thermocouples. The numerical value display and cursor value will be indicated as [BURNOUT] when a...
Page 27 Configuring Input Channels Thermocouple wire break detection • The system checks for wire breaks by applying a minuscule current each date refresh interval when measuring temperature using thermocouples. • Measured values are not affected since wire breaks are detected when measurement is not being performed.
Page 28: Measuring Temperature (With Resistance Temperature Detectors)
Configuring Input Channels Measuring temperature (with resistance temperature detectors) This section describes how to configure settings on the individual settings screen when measuring temperature using resistance temperature detectors. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8551, LR8531 >...
Page 29: Measuring Humidity
Configuring Input Channels Measuring humidity This section describes how to configure settings on the individual settings screen when measuring humidity with the optional Humidity Sensor. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8550, U8551, U8552, LR8531 Applicable sensor: Z2000 Humidity Sensor >...
Page 30: Measuring Resistance
Configuring Input Channels Measuring resistance This section describes how to configure settings on the individual settings screen when measuring resistance. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8551, LR8531 >...
Page 31: Measuring Strain
Configuring Input Channels Measuring strain This section describes how to configure settings on the individual settings screen when measuring strain or vibration with a strain gage or strain gage-type converter. You can use [Input] on the settings list screen to configure the settings. (See p. 5 0.) Applicable modules: U8554, LR8534 Measuring strain See “11.2 Measuring Strain”...
Page 32 Configuring Input Channels Under [Filter], select the cutoff frequency. Auto 4 Hz  When [Auto] is selected, the low-pass filter’s cutoff frequency will automatically be set as described in the following table based on the set data refresh interval: Data refresh interval Cutoff frequency Data refresh interval Cutoff frequency...
Page 33: Integrating Pulses
Configuring Input Channels Integrating pulses You can perform measurement by integrating the pulse count from an integrating wattmeter, flow meter, or similar device. This section describes how to configure settings on the individual settings screen when performing integration measurement. You can use the settings list screen to configure the settings. See p. 5 2. External control terminals: Pulse input terminals P1 to P8 >...
Page 34 Configuring Input Channels Under [Threshold], select the level used for counting.  Treats voltages that are greater than or equal to 1.0 V as high level and voltages that are greater than or equal to 0 V but less than 0.5 V as low level. Treats voltages that are greater than or equal to 4.0 V as high level and voltages that are greater than or equal to 0 V but less than 1.5 V as low level.
Page 35: Measuring Rotational Speed
Configuring Input Channels Measuring rotational speed This section describes how to measure the pulses output by a rotary encoder, tachometer, or similar device. The instrument counts the number of pulses per second and calculates the rotational speed. This section describes how to configure settings on the individual settings screen when measuring rotational speed.
Page 36 Configuring Input Channels Under [Threshold], select the level to count.  Treats voltages that are greater than or equal to 1.0 V as high level and voltages that are greater than or equal to 0 V but less than 0.5 V as low level. Treats voltages that are greater than or equal to 4.0 V as high level and voltages that are greater than or equal to 0 V but less than 1.5 V as low level.
Page 37 Configuring Input Channels When the range is [r/min] If the time t [s] is less than t (time specified with the smoothing), the displayed rotational speed will be the actual rotational speed. (however, t is equal to or more than 2 s). If an unintentional trigger activates, set the smoothing time at 1 s.
Page 38: Measuring Logic Signals
Configuring Input Channels Measuring logic signals This section describes how to configure settings on the individual settings screen when measuring logic signals. You can use the settings list screen to configure the settings. (See p. 5 2.) External control terminals: Pulse input terminals P1 to P8 >...
Page 39: Treatment Of Data That Exceeds The Measurable Range
Configuring Input Channels Treatment of data that exceeds the measurable range Regardless of the measurement target, measured values that exceed the measurable range are [+OVER] [-OVER] treated as over-range values, resulting in a display of either on the numerical value display and for A/B cursor values. Treatment of such values in saved data and calculation results is described in “11.13 Data Handling”...
Page 40: Configuring The Waveform Display
Configuring the Waveform Display 1.4 Configuring the Waveform Display This section describes how to set how waveforms are displayed (display color, display position, zoom factor, etc.). Configuring the display of the vertical axis This section describes how to configure the display in the vertical axis direction. You can set the waveform display position and zoom factor for each channel on the individual settings screen.
Page 41 Configuring the Waveform Display Under [Zero position], set where to place the waveform’s zero point (0 V, 0°C, etc.). −50% 150% (×1  You can set off-screen values. 150% With a vertical axis zoom factor of 1×: Up to 150% 100% Top edge of screen: 100% Screen...
Page 42 Configuring the Waveform Display Example: Waveform from −5 V to +5 V −5 V With voltage axis zoom factor of 1× With voltage axis zoom factor of 2× Zero position setting range: −50% to 150% Zero position setting range: −150% to 250% With zero position of 0% With zero position of 0% 10 V...
Page 43 Configuring the Waveform Display Setting upper and lower limit values You can set the waveform’s display range by specifying upper and lower limit values for the screen. Since you can specify any desired range, you can enlarge the waveform to show only the necessary portion.
Page 44: Other Display Settings
Configuring the Waveform Display Other display settings This section describes how to change the display’s zoom factor in the horizontal axis direction. This feature allows you to view fine-grained changes by enlarging the waveform or check the overall state by shrinking the waveform. You can configure the horizontal axis display and set the method used to display vertical axis values.
Page 45 Configuring the Waveform Display Under [Display horizontal axis], select the display format to use for time values (horizontal- axis values) displayed on the screen. Time  Displays the time elapsed since the start of measurement. When using a trigger, the time elapsed since the trigger activation time will be displayed.
Page 46: Using The Scaling Function
Using the Scaling Function 1.5 Using the Scaling Function This section describes how to use the scaling function to convert voltage values measured by the instrument into the measurement target’s physical properties (current, temperature, etc.) and then display or record them. Converted values can be displayed using decimal or scientific notation.
Page 47 Using the Scaling Function (When the scaling conversion method is set to [Ratio]) Enter the slope and the offset in [Slope] and [Offset], respectively. ENTER Select the numerical value entry item and press the key to display the numerical value setting window.
Page 48 Using the Scaling Function (When the scaling conversion method is set to [Rating]) (Available only when U8554 or LR8534 Strain Unit is used) Enter the rated capacity and rated output in [Capacity] and [Output], respectively. Set the rated capacity and rated output (μV/V) according to values in the inspection results sheet for the strain gage-type converter.
Page 49 Using the Scaling Function Scaling settings during integration measurement You can use the scaling function to convert the integrated pulse count to the measurement target’s physical properties (watt hours, volt-amperes, etc.) and then display or record the result. The pulse output device will have predetermined physical quantity that corresponds to 1 pulse or a number of pulses that corresponds to a value of one in the basic units (for example, 1 kWh, 1 L, >...
Page 50 Using the Scaling Function Enter physical quantity per pulse or the number of pulses (example: 1 c = 1 pulse) that corresponds to a value of one in the basic units. Select the numerical value entry item and press the ENTER key to display the numerical value setting window.
Page 51: Entering Comments
Entering Comments 1.6 Entering Comments This section describes how to enter measurement titles, channel comments, and module identifiers. Title comments This section describes how to enter a string of text to serve as the measurement title. (Up to 40 single-byte characters) See “Text entry method”...
Page 52: Channel Comments
Entering Comments Channel comments This section describes how to enter a string of text for each channel. (Up to 40 single-byte characters) See “Text entry method” (p. 8 ). Channel comments are displayed on the screen when the waveform screen is set to [Wave+Value]. Channel comments allow you to identify channels when measuring numerous channels.
Page 53: Module Identifiers
Entering Comments Module identifiers This section describes how to enter an identifier (string of text) for each module. (Up to 8 double- byte or 16 single-byte characters) See “Text entry method” (p. 8 ). You can use module identifiers to identify modules when using multiple modules. >...
Page 54: Configuring Channels In A List
Configuring Channels in a List 1.7 Configuring Channels in a List This section describes how to review module settings on the list. > > [Unit n] (n = 1, 2, . . .) Settings list screen: [Input] On the sub tab, select the module whose settings you wish to display in the list. Select the item to display.
Page 55 Configuring Channels in a List (U8552, LR8532) • Press the ENTER key while [16-30>] is selected to display CH16 to CH30. • Press the ENTER key while [1-15>] is selected to display CH1 to CH15. Select a channel number and press the ENTER key.
Page 56 Configuring Channels in a List Pulse settings list screen > > Settings list screen: [Input] Input type: Integration Input type: Logic Input type: Rotational speed Input type Input type Range When the input type is [RevSpd]: Count reference time Integration mode When the input type is [Count]: Integration method Pulse count When the input type is [RevSpd]: Number of pulses per revolution...
Page 57 Configuring Channels in a List Settings list screen: [Display] Display settings Displays setting method Zoom factor When the display setting is [Position]: Waveform display zoom factor Upper limit value When the display setting is [Up/Low Lim]: Screen upper limit value Zero position When the display setting is [Position]: Waveform zero position (0 V, 0°C, etc.) Lower limit value...
Page 58 Configuring Channels in a List Settings list screen: [Comment] Comment Comments for individual channels Settings list screen: [Numerical calc] Threshold value Threshold value for numerical calculations (Availability, ON time, OFF time, ON count, OFF count) Threshold values will be used for numerical calculations. For more information about threshold values, see “Configuring numerical calculations”...
Page 59: Copying Channel Settings
Configuring Channels in a List Copying channel settings This section describes how to copy one module’s settings to another module. > > [Unit n] (n = 1, 2, . . .) Press the ENTER key while [Copy...] is selected. The settings window will open. Select the checkbox for the module to which you wish to copy the settings (the target module).
Page 60: Configuring Channel Settings At Once
Configuring Channels in a List Configuring channel settings at once This section describes how to turn the measurement on or off and configure the waveform display color settings for all channels on a module. > > [Unit n] (n = 1, 2, . . .) Select the measurement ON/OFF checkbox and press the ENTER key.
Page 61: Performing Zero Adjustment
Performing Zero Adjustment 1.8 Performing Zero Adjustment This section describes how to correct misalignment of inputs and set the instrument’s reference voltage to 0 V. Perform zero adjustment if the reference voltage is not 0 V with a pair of input terminals short- circuited.
Page 62: Checking Input Signals (Monitor Function)
Checking Input Signals (Monitor Function) 1.9 Checking Input Signals (Monitor Function) This section describes how to check input waveforms to verify that settings such as the range and display range have properly been configured before starting measurement. Press the MONITOR key to display waveforms and values on the monitor screen.
Page 63: Starting And Stopping Measurement
Starting and Stopping Measurement 1.10 Starting and Stopping Measurement Press the START key to start measurement. [System] [Operation error prevention] setting is [ON], an operation confirmation When the > ENTER [Yes] window will be displayed. Press the key while is selected to start measurement. Starting measurement after stopping it will cause the measurement data in the instrument’s internal buffer memory to be deleted.
Page 64: Observing Waveforms
Observing Waveforms 1.11 Observing Waveforms WAVE Press the key to display the waveform screen. The waveform screen is displayed at all times while measurement is in progress. The screen provides the following functionality: • Moving (scrolling) waveforms • Moving waveforms while measurement is in progress (to check past waveform data) •...
Page 65 Observing Waveforms Reference Name Description page Measurement Allows you to turn measurement on or off. p. 1 9 Waveform color Allows you to select the waveform display color. p. 1 9 Input type Allows you to select the type of input. p. ...
Page 66: Waveform Display
Observing Waveforms Waveform display This section describes how to change the method used to display measured waveforms. Under [Display], select the waveform display method. Wave+Set, Wave, Wave+Value, Value, Alarm You can also select the display method with the WAVE key. Each time you press the WAVE key, the display will cycle to the next display method.
Page 67 Observing Waveforms [Wave+Value] [Value] Unit Measure Channel Trigger Alarm Calculation System...
Page 68 Observing Waveforms [Alarm]...
Page 69: Gage (Scale) Display
Observing Waveforms Gage (scale) display This section describes how to display a gage (scale) for any channel on the left side of the screen. The gage can be used to check the waveform and its values. Two gages (A and B) can be displayed. You can choose the channels for which to display a gage.
Page 70: Numerical Value Display
Observing Waveforms Numerical value display This section describes how to select the numerical value display method. [Value] screen This screen displays only numerical values. Select the value to display. Instantaneous values, maximum values, minimum values, average values, and peak- to-peak values Instant Most recent measured value (INST) Maximum...
Page 71 Observing Waveforms [Wave+Value] screen You can choose any of three types of information to display on the right side of the screen. (1) Instantaneous: Measured values most recently obtained or shown on the right portion of the waveform screen (2) Cursor: A/B cursor values Unit Measure Channel...
Page 72 Observing Waveforms (3) Numerical calculation: Numerical calculation results...
Page 73: Moving Waveforms (Scrolling)
Observing Waveforms Moving waveforms (scrolling) This section describes how to move (scroll) the measured waveform horizontally (along the time axis). Since waveforms can also be moved while measurement is in progress, you can check past waveforms during measurement. Past Most Screen recent Switches the...
Page 74 Observing Waveforms Under [Display], set the display to [Wave+Set], [Wave+Set], or [Wave+Value]. Press the SELECT key to display the Scroll icon. SELECT Each time you press the key, the display will switch between the Cursor icon (A/B cursor movement) and the Scroll icon (waveform movement). For more information about the Scroll icon, see “1.11 Observing Waveforms”...
Page 75: Scroll Bar (Waveform Display Position)
Observing Waveforms Scroll bar (waveform display position) A scroll bar is displayed on the bottom of the screen. You can use the scroll bar to check which part of the entire waveform is being displayed. The width shown on the scroll bar varies with the recording time and horizontal axis display settings.
Page 76: Waveform Search
Observing Waveforms Waveform search This section describes how to search a measured waveform for a specific point of interest. This function cannot be used while measurement is in progress. Under [Settings], select [Search]. A number of search-related settings will be displayed. Under [Type], select the search method.
Page 77 Observing Waveforms (When [Type] is set to [Level], [Window], [Maximal], or [Minimal]) Press the ENTER key while either [<] [>] under [Execute] is selected. The search will be performed. If the search returns multiple points, you can move to the next point with [>] or to the previous point with [<].
Page 78: Jump Function (Changing The Display Position)
Observing Waveforms Jump function (changing the display position) This section describes how to use the scroll bar to change the waveform’s display position (jump function). Under [Settings], select [Jump]. The jump-related settings will be displayed. Press the ENTER key while [Manual] is selected.
Page 79: Using The A/B Cursors
Using the A/B Cursors 1.12 Using the A/B Cursors This section describes how to read values from the measured waveform using the A/B cursors. You can also use the cursors to specify a range for saving data or performing numerical calculations. Reading values from the waveforms This section describes how to read measured values, times, and time differences between cursors using the A/B cursors.
Page 80 Using the A/B Cursors Select the information to display. A, B A cursor measured value, B cursor measured value A, B−A A cursor measured value, difference in measured values at the B and A cursors (B-A) B, B−A B cursor measured value, difference in measured values at the B and A cursors (B-A) A, Comment A cursor measured value, channel comments B, Comment...
Page 81: Specifying A Waveform Range
Using the A/B Cursors Specifying a waveform range This section describes how to specify a waveform range using the A/B cursors. When saving waveform data, you can save only the data in the specified range. You can also specify the range over which to perform numerical calculations. Range specification is performed using the vertical axis cursors.
Page 82: Configuration Navigator (Quick Set)
Configuration Navigator (Quick Set) 1.13 Configuration Navigator (Quick Set) Press the QUICK SET key to display the following guides. • Strain gage connection guide • External control terminal connection guide Strain gage connection diagram Select [Strain gauge connection guide]. Press the ENTER key.
Page 83: External Control Terminal Pin Names
Configuration Navigator (Quick Set) External control terminal pin names Select [External connection guide]. Press the ENTER key. A list of external control terminal pin names will be displayed. Press the ENTER key while [Quit] is selected. The guide screen will close. Unit Measure Channel...
Page 84: Trigger Function
Trigger Function Triggers provide functionality for starting and stopping measurement based on specific conditions and signals. When a specific condition (a trigger condition) occurs, the trigger is said to activate. The points at which triggers activate (i.e., the points in time at which trigger conditions are satisfied) are known as trigger points, which are identified by the mark.
Page 85 The instrument allows the following specific conditions to be set: Specific Description Reference condition page Start trigger Starts recording when the trigger condition is satisfied. p. 8 4 Example: Start recording when the temperature reaches or exceeds 50°C. Stop trigger Stops recording when the trigger condition is satisfied.
Page 86: Trigger Meanings
Trigger Meanings 2.1 Trigger Meanings This section describes how to set start or stop conditions for measurement. You do so by setting the type of trigger (level, window, or pattern) and the slope (signal rising or falling). Trigger types The following three types of triggers are provided: Type Operation Description...
Page 87: Enabling The Trigger Function
Enabling the Trigger Function 2.2 Enabling the Trigger Function This section introduces how to start and stop recording using the trigger function. Shared settings > > Under [Trigger], set the trigger function to [ON].  The trigger function will be set to [ON], and trigger settings will be enabled. Under [Timing], select the operation to perform when the trigger activates.
Page 88 Enabling the Trigger Function Under [Condition], select the condition for activating the trigger. Set the activation condition between triggers (analog, pulse, logic, waveform calculation, external, and interval) as a logical AND or logical OR operation. Recording will start immediately (free-run) if all trigger sources are OFF (if no trigger setting has been made).
Page 89 Enabling the Trigger Function Relationship between pre-triggers and recording time If the recording time is shorter than the If the recording time is longer than the pre-trigger pre-trigger Data will be Measurement Measurement will measured before will stop at the stop when the and after the trigger.
Page 90: Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window)
Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) 2.3 Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) This section describes how to set triggers for individual analog channels, pulse channels, or waveform calculation channels. The following triggers are available: •...
Page 91 Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) Pulse triggers Waveform calculation triggers See “Level triggers” (p. 8 9) and “Window triggers” (p. 9 1) . Configure the trigger function settings. You can also configure settings on the list screen without opening the settings window. When [Timing] is set to [Start], a...
Page 92: Level Triggers
Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) Level triggers Level triggers activate when the waveform crosses the specified level (the trigger level). You can set the direction in which the level is crossed (the slope). > > [Unit n] (n = 1, 2, .
Page 93 Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) Trigger level resolution The trigger level resolution (minimum setting width) varies with the range. Input Range Resolution Voltage 1 mV f.s. 0.001 mV 2 mV f.s. 0.002 mV 5 mV f.s. 0.005 mV 10 mV f.s.
Page 94: Window Triggers
Analog Triggers, Pulse Triggers, Waveform Calculation Triggers (Level, Window) Window triggers This section describes how to specify a range (window) using upper and lower limit values and then activate a trigger when the waveform moves into or out of that range. You can activate a trigger either when the waveform enters the range (window IN) or when the waveform exits the range (window OUT).
Page 95: Logic Triggers (Patterns)
Logic Triggers (Patterns) 2.4 Logic Triggers (Patterns) This section describes how to activate triggers with logic triggers. When the logic signal values (1 and 0) match the trigger pattern (1/0/X), the trigger will activate. This type of trigger can be selected when [Logic] has been selected for pulse (P1 to P8) input.
Page 96 Logic Triggers (Patterns) Select the P1 to P8 trigger pattern. Activates the trigger when the signal is (low). Activates the trigger when the signal is (high). Excludes from the trigger. The signal will be ignored. Unit Measure Channel Trigger Alarm Calculation System...
Page 97: Applying Triggers Based On External Sources
Applying Triggers Based on External Sources 2.5 Applying Triggers Based on External Sources I/O 3 This section describes how to use signals inputted to the terminal to activate triggers. > > Under [External trigger], set the external trigger function to [ON]. ...
Page 98: Activating A Trigger At A Set Interval
Activating a Trigger at a Set Interval 2.6 Activating a Trigger at a Set Interval Interval triggers This section describes how to activate a trigger at a set interval. You need to set repeat recording set to [ON] beforehand. See “1.2 Setting Measurement Conditions” (p. 1 0). >...
Page 99 Activating a Trigger at a Set Interval OR and AND conditions Trigger : Trigger point; : Other trigger condition conditions Interval time Interval time Measurement start There is one enabled trigger during the interval. The trigger will not activate. Interval time Interval time Measurement start The trigger will not activate if it does not match other trigger conditions.
Page 100: Example Trigger Settings
Example Trigger Settings 2.7 Example Trigger Settings This section introduces some example trigger settings. What you want to do (in table below) START STOP Capture data from the time the key is pressed until the time the key is No.1 pressed Capture data once for 1 min.
Page 101 Example Trigger Settings Measurement screen Trigger screen Repeat Recording Trigger Trigger Pre- Start Stop File splitting Timing recording time function conditions trigger trigger trigger Specified Condition time level: ↑ Start Start OR – – 0 hr. 1 min. Level: 500°C Specified Condition time...
Page 102: Saving And Loading Data
Saving and Loading Data This chapter describes how to save settings conditions and waveform data on an SD Memory Card or USB Drive. It also describes how to load previously saved data into the instrument to reproduce it. 3.1 Data That Can Be Saved and Loaded .........p. 1 00 3.2 Formatting Media ..............p. ...
Page 103: Data That Can Be Saved And Loaded
Data That Can Be Saved and Loaded 3.1 Data That Can Be Saved and Loaded [HIOKI] When you save data on an SD Memory Card or USB Drive, the folder containing the [LR8450] folder. will be created. Files are saved in folders as shown in the following diagram:...
Page 104 Data That Can Be Saved and Loaded : Yes; –: No Saving Loading Filename Data type Format Folder name (Automatically On the On a Auto. Manual numbered from 1) instrument computer Setting Binary CONFIG CONF0001.SET – –   conditions DATA\(date)* AUTO0001.MEM Binary...
Page 105 Data That Can Be Saved and Loaded Preparing for power outages and configuring associated settings NOTICE Do not use damaged media. „ Doing so could prevent processing to close files from completing in the anticipated amount of time, corrupting files. Measurement data will be lost if power is interrupted during measurement.
Page 106: Formatting Media
Formatting Media 3.2 Formatting Media Before using an SD Memory Card or USB Drive for the first time, format the media. Press the FILE key. A screen listing the files on the SD Memory Card or USB Drive will be displayed. Press the FILE key to select the media to be formatted.
Page 107 Formatting Media Press the Down Arrow key to move to the media screen, and then press the SELECT key. The file operations window will be displayed. Pressing the ENTER key while [Media Format] is selected. The confirmation window will be displayed. Press the ENTER key.
Page 108: Saving Data
Saving Data 3.3 Saving Data Data can be saved using the following three methods: If you wish to automatically If you wish to save data If you wish to choose the save data during immediately when the type of data to save and measurement SAVE key is pressed...
Page 109: Auto Save (Real-Time Save)
Saving Data Auto save (real-time save) This section describes how to save waveform data (using the real-time save function) to media (an SD Memory Card or USB Drive) while measurement is in progress. Numerical calculation results can also be saved to media automatically. You can also save both waveform data and numerical calculation results automatically.
Page 110 Saving Data > > Enter the filename to use during auto-save operation in the [File name] field (up to 8 single- byte characters). See “Text entry method” (p. 8 ). A serial number beginning from 0001 (in increments of one) will be appended to entered file names. Example: Filename: [ABC], Format :binary ABC0001.MEM, ABC0002.MEM, ABC0003.MEM, .
Page 111 Saving Data Under [Format] in the [Waveform data] area, select the auto save type.  Does not perform auto-save operation. Binary Saves data in the instrument’s dedicated format (binary format) Text Saves data in text format (.CSV). (When [Format] is set to [Text]) Under [Downsampling], select whether to perform downsampling.
Page 112 Saving Data Under [File splitting], select the segmentation method (as necessary). Saved files will be segmented based on the set period of time. Disable Creates one waveform file for each measurement. However, files will be segmented  automatically if the file size exceeds 1 GB. Enable Segments files by the time specified in [Split time]...
Page 113 Saving Data Under [Date format], select the date format. This setting is available only with [Display horizontal axis] set to [Date]. See “Other display settings” (p. 4 0). yy-MM-dd Outputs the date using the following format: 'YEAR-MONTH-DAY hh:mm:ss.0 HOURS:MINUTES:SECONDS.MILLISECONDS.  Dates output in this format will be treated as comments by spreadsheet software.
Page 114 Saving Data Replacing (ejecting) media during real-time save operation This section describes how to replace media while real-time saving is enabled. It also describes how to check data on media during extended recording. Press the ENTER key while [Eject] on the top right of the waveform screen is selected. The media exchange window will be displayed.
Page 115: Manual Saving (Selective Saving, Immediate Saving)
Saving Data Manual saving (selective saving, immediate saving) This section describes how to save data using the SAVE key. SAVE You can select the operation to perform when the key is pressed. IMPORTANT • Data can be saved while the instrument does not perform measurement has. Data cannot be saved while measurement is in progress.
Page 116 Saving Data Under [Type], select the type of data to save. Waveform Saves waveform data.  Screen shot Saves a screen image. (PNG format) Settings Saves the instrument’s setting conditions. Calc results Saves numerical calculation results. [Type] is set to [Waveform]) (When Under [Format], select the file format.
Page 117: Selective Save Operation
Saving Data Selective save operation This section describes how the system works when [Select & Save] is selected under [SAVE key settings]. Saving waveform data Press the SAVE key. A window will be displayed. Enter the filename in the [File name] field (up to 8 single-byte characters).
Page 118 Saving Data Under [Type], select [Waveform]. Under [Format], select the file format. Binary Saves data in the instrument’s dedicated format (binary format).  Text Saves data in text format. [Text] [Settings...] is selected, configure the text format settings while is selected. [Settings...] [Text] in “Auto save (real-time save)”...
Page 119 Saving Data Saving setting conditions, screen images, and numerical calculation results Press the SAVE key. A window will be displayed. Enter the filename in the [File name] field (up to 8 single-byte characters). [File name] in “Saving waveform data” (p. 1 14). Under [Media], select the media on which to save data.
Page 120: Loading Data
Loading Data 3.4 Loading Data This section describes how to load data that has been saved on media (an SD Memory Card or USB Drive). The instrument can load two types of data: • Waveform data (binary data) • Setting conditions The instrument cannot load waveform data saved in CSV format.
Page 121 Loading Data Select the file you wish to load with the Up Arrow Down Arrow keys and then press the ENTER key. A confirmation window will be displayed. You can load system (environment and external terminal) settings and communications (LAN, USB) settings.
Page 122: Managing Data
Managing Data 3.5 Managing Data This section describes how to manage data stored on an SD Memory Card or USB Drive that has been inserted into the instrument. The following operations are available: • Formatting the SD Memory Card or USB Drive (p. 1 03) •...
Page 123: Moving Between Levels (Folders)
Managing Data Moving between levels (folders) This section describes how to move within folders or to the next higher level. Press the Up Arrow Down Arrow keys to select the folder to which you wish to move. Press the Right Arrow key.
Page 124: Deleting Data
Press the ENTER key. The file or folder will be deleted. To prevent data from being inadvertently deleted, files in the [HIOKI], [LR8450], and [DATA] folders cannot be deleted. Files whose read-only attribute is set cannot be deleted. Those files can be deleted on a computer.
Page 125: Renaming Files And Folders
Managing Data Renaming files and folders This section describes how to rename a file or folder. Select the file or folder you wish to rename with the Up Arrow Down Arrow keys and then press the SELECT key. The file operations window will be displayed. Press the ENTER key while...
Page 126: Copying Data
Managing Data Copying data This section describes how to copy data and folders between an SD Memory Card and a USB Drive. Select the file or folder you wish to copy with the Up Arrow Down Arrow keys and then press the SELECT key.
Page 127: Sorting Files
Managing Data Sorting files This section describes how to sort files into ascending or descending order based on their filenames. Display a list of the files you wish to sort and press the SELECT key. The file operations window will be displayed. Press the ENTER key while...
Page 128: Acquiring Data With A Computer
Acquiring Data with a Computer (PC) 3.6 Acquiring Data with a Computer (PC) This section describes how to use the included USB cable to load data saved on an SD Memory Card inserted in the instrument onto a computer. “Activating USB drive mode” (p. 1 26) You cannot use the included USB cable to load data stored on a USB Drive inserted in the instrument.
Page 129: Activating Usb Drive Mode
Acquiring Data with a Computer (PC) Activating USB drive mode This section describes how to set the instrument to [USB drive mode] in order to communicate with a computer via USB. > > Connect the USB cable. Press the ENTER key while [Execute] under...
Page 130: Canceling Usb Drive Mode
Acquiring Data with a Computer (PC) Canceling USB drive mode This section describes how to cancel USB drive mode. Click the USB icon shown on the computer’s task tray ([Safely Remove Hardware and Eject Media]). Click [Eject USB Drive]. After the pop-up notification as shown in the left, disconnect the USB cable.
Page 131 Acquiring Data with a Computer (PC)
Page 132: Alarm (Alarm Output)
Alarm (Alarm Output) This chapter describes how to set alarm conditions for each measurement channel. You can have the instrument sound a tone or output an alarm signal to an external device when measurement data satisfies the set condition. For example, you can output an alarm when the recorded temperature becomes too high.
Page 133: Configuring Alarms
Configuring Alarms 4.1 Configuring Alarms Setting shared alarm conditions for all channels This section describes how to set shared alarm conditions that apply to all channels. > > Under [Alarm], set the alarm function to [ON].  Under [Alarm hold], select whether to maintain alarm output. Stops alarm output once the alarm condition is no longer satisfied.
Page 134 Configuring Alarms Under [Condition] for each alarm output ([ALM1] to [ALM8]), select the alarm condition. Outputs an alarm when any of the alarm conditions that have been set for the channels  is satisfied. Outputs an alarm when all of the alarm conditions that have been set for the channels are satisfied.
Page 135 Configuring Alarms > > to [ALM8]). Configure each alarm channel ([ALM1] Select the waveform display color. × (OFF), 24 colors Under [Filter] , select the number of data points. The system will output an alarm if the alarm state continues for the set number of data points. , 2, 5, 10, 20, 50, 100, 200, 500, 1000 ...
Page 136: Configuring Channel-Specific Alarm Settings
Configuring Alarms Configuring channel-specific alarm settings This section describes how to configure alarm functionality for individual channels. > > [Unit n] (n = 1, 2, . . .) Settings list screen Press the ENTER key while [Un-m] (m = 1, 2, . . .) for the channel you wish to set is selected. A window with channel-specific alarm settings will open.
Page 137 Configuring Alarms Configure alarm settings for each channel you wish to monitor ([ALM1] to [ALM8]). Alarm type Setting description Operation Description  – – Disables the alarm function. Level ↑ ↓ Slope  Outputs an alarm when the Alarm Alarm measurement Level data is greater...
Page 138 Configuring Alarms Alarm type Setting description Operation Description Pattern Level 1, 0,  Alarm Outputs an alarm when the logic signal is 1 (high). High Outputs an alarm High when the logic signal is 0 (low). Alarm Not used in alarm High judgments.
Page 139 Configuring Alarms Alarm activation conditions Level for Alarm [Pattern] (When [Logic] has been set for [PULSE 1] [PULSE Under [Conditions], select the condition for activating the alarm. Does not use alarms based on logic signals. Outputs an alarm when any of the patterns is satisfied. Outputs an alarm when all of the patterns are satisfied.
Page 140: Checking Alarms
Checking Alarms 4.2 Checking Alarms This section describes how to check whether any alarms have occurred on the [Alarm] screen. Press the WAVE key several times to display the [Alarm] screen. ALM1 ALM8 Red: Alarm output; Green: No alarm output Alarm memory number (assigned in order that alarms occur, starting with 1) Alarm number (ALM1 to ALM8) UNIT-CH...
Page 141 Checking Alarms (When you wish to manually clear an alarm) With [Alarm hold] is set to [ON], press the ENTER key while [Clear] is selected. Alarms cannot be cleared while the associated alarm conditions remain satisfied. For more information about the [Alarm], [Alarm hold], and [Alarm buzzer]...
Page 142: Marking Functionality
Marking Functionality This chapter describes how to assign event marks to waveforms during measurement. (Up to 1000 marks can be assigned.) You can also search for event marks and jump to their display positions. Event marks can be assigned by means of the following four methods: START •...
Page 143: Assigning Event Marks During Measurement
Assigning Event Marks during Measurement 5.1 Assigning Event Marks during Measurement Assigning event marks to coincide with operation of the measurement target during measurement can help facilitate later analysis. You can then review how the waveform changed when the measurement target performed certain operations.
Page 144: Assigning Event Marks With An External Signal
Assigning Event Marks with an External Signal 5.2 Assigning Event Marks with an External Signal You can assign event marks by inputting external signals. This function must be configured before measurement begins. > > Under [External input 1] [External input 3], select [Event input].
Page 145: Assigning Event Marks When Alarms Occur
Assigning Event Marks When Alarms Occur 5.3 Assigning Event Marks When Alarms Occur This section describes how to assign event marks when alarms occur. This function must be configured before measurement begins. > > Under [Event mark], select whether to add an event mark when an alarm occurs. ...
Page 146: Searching For Event Marks
Searching for Event Marks 5.4 Searching for Event Marks This section describes how to search for the desired event mark and jump to its position. Press the WAVE key to display the [Wave+Set] screen. Under [Settings], select [Event]. A number of event mark settings will be displayed. Under [Move No.], specify the number of the event mark to which you wish to jump.
Page 147: Reviewing Events In Csv Data
Reviewing Events in CSV Data 5.5 Reviewing Events in CSV Data When you save waveform data in CSV (text) format with the instrument, event numbers will be included next to the measurement data. You can review which events were associated with which data values. Event no.
Page 148: Numerical And Waveform Calculations
Numerical and Waveform Calculations The instrument can perform numerical and waveform calculations. You can use numerical calculations to calculate values such as the maximum value and minimum value for measured waveforms. Waveform calculation functionality allows you to perform calculations on waveforms, for example by adding or multiplying waveforms from different channels.
Page 149: Performing Numerical Calculations
Performing Numerical Calculations 6.1 Performing Numerical Calculations There are two methods for performing numerical calculations: • Performing calculations during measurement (real-time automatic calculations) Configure the desired numerical calculations and start measurement. Calculations will then be performed in real time during measurement. You can review the most recent numerical calculation results on the [Wave+Value] waveform...
Page 150: Configuring Numerical Calculations
Performing Numerical Calculations Configuring numerical calculations > > Under [Numerical calculation], set the numerical calculation function to [ON].  Under [Time split calculation], select the file segmentation method. Disable  Saves the last numerical calculation results. Enable [Split time]. Allows you to set the interval at which to perform the calculation under The calculation will be performed after a start trigger, and the results saved, at the set interval.
Page 151 Performing Numerical Calculations Under [Type], select the type of numerical calculation. You can set up to 10 numerical calculations at the same time. Average Calculates the average value. Calculates the difference between the minimum and maximum values (the peak-to- peak value). Maximum Calculates the maximum value.
Page 152 Performing Numerical Calculations (When [Type] is set to [Aggregation] or [Integration]) Select the calculation method. For information about the calculation methods, see “Numerical calculation formulas” (p. 1 53). Total Calculates the difference between the integration or area enclosed by the zero position ...
Page 153: Real-Time Numerical Calculations (Automatic Calculations)
Performing Numerical Calculations Real-time numerical calculations (automatic calculations) This section describes how to perform numerical calculations while measurement is in progress. [Wave+Value] It also describes how to review calculation results at a given point in time on the screen during measurement. Configure the numerical calculation.
Page 154: Numerical Calculations After Measurement (Manual Calculations)
Performing Numerical Calculations Numerical calculations after measurement (manual calculations) This section describes how to use the instrument’s control keys to perform numerical calculations after measurement. You can review calculation results by displaying the [Wave+Value] screen and then setting the numerical display on the right side of the screen to [Calc]. Press the START key to start measurement.
Page 155: Partial Numerical Calculations
Performing Numerical Calculations Partial numerical calculations If performing manual calculations, you can specify the range over which to perform the calculation. The numerical calculation will be performed after the range has been specified with the A/B cursors (vertical). Specify the range with the A/B cursors. For information about how to specify the range, see “Specifying a waveform range”...
Page 156: Numerical Calculation Formulas
Performing Numerical Calculations Numerical calculation formulas The following table provides a detailed description of each numerical calculation. Calculation Description type Calculates the average value of the waveform data. �� = ∑ �� AVE : Average value Average ��=1 Number of data points ith data point for channel Calculates the value between the...
Page 157 Performing Numerical Calculations Calculation Description type Calculates the difference between the area (V·s) enclosed by the zero position (0 V position) and the part of the signal waveform where its amplitude is positive and the area (V·s) enclosed by the zero position (0 V position) and the part of the signal waveform where its amplitude is negative.
Page 158: Performing Waveform Calculations
Performing Waveform Calculations 6.2 Performing Waveform Calculations This section describes how to perform basic arithmetic operations between channels and how to calculate values such as a moving average. (Up to 30 calculations can be performed.) The following types of calculations are available: basic arithmetic operations, integration, simple average, moving average, and integral.
Page 159 Performing Waveform Calculations You can cycle through the calculation channel to display. • Press the ENTER key while [16-30>] is selected to display W16 to W30. • Press the ENTER key while [1-15>] is selected to display W1 to W15. Select the checkboxes for the channels for which you wish to perform calculations.
Page 160 Performing Waveform Calculations Set the type of the waveform calculation. Four arithmetic Performs between channels addition, subtraction, multiplication, and division.  This setting allows you to enter channels, coefficients, and constants. (You can also set exponents as constants.) Aggregation Adds the measurement data and plot its sum total. [Reset start time], and [Reset...
Page 161 Performing Waveform Calculations (When [Type] is set to [Aggregation], [Simple average], or [Integration]) Under [Reset start time], select the reset operation to perform when measurement starts. Does not reset calculation results.  Trigger position Resets calculation results when a trigger activates. (When [Type] is set to [Aggregation],...
Page 162 Performing Waveform Calculations Configure display settings. Upper Upper limit value when displaying waveform calculation results on the screen Lower Lower limit value when displaying waveform calculation results on the screen Num of decimal Number of decimal places for measured values places This setting is not displayed when [Number display format]...
Page 163: Configuring Calculations On The Calculation List Screen
Performing Waveform Calculations Configuring calculations on the calculation list screen This section describes how to review waveform calculation settings on the calculation list screen. It also describes how to configure settings on the screen. > > Calculation list screen: [Formula] Set the display to [Formula].
Page 164: Copying Calculation Formulas
Performing Waveform Calculations Copying calculation formulas This section describes how to copy the calculation for calculation channel [W1] to the other to [W30]). calculation channels ([W2] > > Press the ENTER key while [Copy...] is selected. The settings window will open. Select the checkbox for the [Copy to].
Page 165: Configuring Waveform Calculation Settings At Once
Performing Waveform Calculations Configuring waveform calculation settings at once This section describes how to configure the waveform calculation on or off and waveform display color settings for all waveform calculations. > > Select the waveform calculation ON/OFF checkbox and press the ENTER key.
Page 166: Configuring System Settings
Configuring System Settings The system screen provides the functionality described below. 7.1 Configuring Settings ............p. 1 64 7.2 Controlling the System ............p. 1 67 Setting the time ..................p. 1 67 Synchronizing the time ................p. 1 68 Initializing (resetting) the system ............p. 1 69 System configuration ................
Page 167: Configuring Settings
Configuring Settings 7.1 Configuring Settings This section describes how to configure various system functions. > > Under [Start backup], select the operation to perform when the instrument is turned back on (start back up). When set to [ON], the instrument will automatically resume recording when the power comes back on after being interrupted during measurement, for example due to a power outage.
Page 168 Configuring Settings Under [Backlight brightness], select the backlight brightness. 1, 2, , 4,  Larger values indicate higher brightness levels. Lowering the backlight brightness (dimming the backlight) will allow the instrument to operate longer on battery power. Under [Language], select the user interface language. Press the ENTER key to display a settings window.
Page 169 Configuring Settings Under [Power frequency filter], select the power supply frequency in the region where the instrument is being used. 60 Hz Uses the digital filter for 60 Hz regions.  50 Hz Uses the digital filter for 50 Hz regions. It is recommended to select the same frequency (50 Hz or 60 Hz) as the power supply frequency in the region where the instrument is being used.
Page 170: Controlling The System
Controlling the System 7.2 Controlling the System This section describes how to set the time and initialize (reset) the instrument. It also describes how to perform a self-check. Setting the time The instrument has a calendar with automatic leap year detection as well as a 24-hour clock. The clock is displayed in YYYY-MM-DD HH:MM:SS format at the bottom right of the screen.
Page 171: Synchronizing The Time
Controlling the System Synchronizing the time This section describes how to synchronize the instrument’s time with an NTP server. The LAN settings must be configured in advance. See "9.3 Configuring and Establishing a LAN Connection" (p. 1 89). > > Press the ENTER key while...
Page 172: Initializing (Resetting) The System
Controlling the System Initializing (resetting) the system This section describes how to reset all settings to their factory defaults. See "11.9 Settings after Initialization (System Reset)" (p. 2 90). > > Press the ENTER key while [Initialize...] is selected. The settings window will open. Select the checkboxes for the settings you wish to initialize.
Page 173: System Configuration
Controlling the System System configuration This section describes how to check the instrument’s firmware version, installed modules, and other system configuration. > > Press the ENTER key while [System config...] is selected. A list of system configuration will open. Select [Main] [Unit] using the...
Page 174: Performing A Self-Check
Controlling the System Performing a self-check This section describes how to perform a self-check. The results will be shown on the screen. Contact your authorized Hioki distributor or reseller in the event of an abnormal result. > > Select the type of diagnostics you wish to perform in the...
Page 175 Controlling the System...
Page 176: External Control (Ext. I/O)
External Control (EXT. I/O) This chapter describes how to control the instrument by inputting signals to its external control terminals. Signals corresponding to the instrument’s operation are output from the external control terminals. You can configure settings related to the external control terminals on the [System] >...
Page 177: Configuring Voltage Output (Voutput)
Configuring Voltage Output (VOUTPUT) 8.1 Configuring Voltage Output (VOUTPUT) This section describes how to configure voltage output for use in powering sensors. For more information about how to connect sensors to the voltage output terminals, see “Voltage Output Connections” in the Quick Start Manual. >...
Page 178: Configuring Alarm Output (Alarm)
Configuring Alarm Output (ALARM) 8.2 Configuring Alarm Output (ALARM) This section describes how to set the voltage level for the signal that is output when an alarm condition is satisfied. For more information about alarms, see “4 Alarm (Alarm Output)” (p. 1 29). >...
Page 179 Configuring Alarm Output (ALARM) Alarm output terminal circuit diagram and example connection Select the relay with the contact configuration to perform the desired operation. The example connection illustrates a circuit in which the relay will operate when the alarm output is low.
Page 180: Configuring External Input/Output (I/O) Terminals
Configuring External Input/Output (I/O) Terminals 8.3 Configuring External Input/Output (I/O) Terminals This section describes how to select functionality for the external I/O terminals. There are four external I/O terminals: I/O 1 to I/O 4. You can control the instrument to start and stop measurement or input trigger signals. I/O 1 to I/O 3 are input terminals, while I/O 4 is an output terminal.
Page 181 Configuring External Input/Output (I/O) Terminals External input terminal (I/O 1, I/O 2, I/O 3) input specifications Input voltage 0 V to 10 V DC High level: 2.5 V to 10 V; low level: 0 V to 0.8 V Slope Rising/falling (user-selectable) Response pulse High level period: 2.5 ms or greater;...
Page 182: External Trigger Input
Configuring External Input/Output (I/O) Terminals External trigger input This section describes how to input a signal from an external source to activate a trigger. You can use a signal from another device to start measurement with the instrument. The external input I/O 3 terminal is used for this functionality.
Page 183: Trigger Output
Configuring External Input/Output (I/O) Terminals Trigger output This section describes how to output a low-level signal when a trigger activates. You can use this capability to notify another device that the instrument has started recording. The external output I/O 4 terminal is used for this functionality. >...
Page 184 Configuring External Input/Output (I/O) Terminals Trigger output timing The timing at which signals appear in trigger output varies with the [Timing] setting. See “2.2 Enabling the Trigger Function” (p. 8 4). Start To next Measurement start Start trigger activated Measurement stop measurement = Acquisition complete Minimum...
Page 185: Simultaneously Starting Measurement Using External Triggers
Configuring External Input/Output (I/O) Terminals Simultaneously starting measurement using external triggers This section describes how to synchronize the measurement start time for multiple instruments using trigger input and trigger output. Since each instrument generates its own sampling clock, data acquisition times will diverge if measurement is continued for an extended period of time.
Page 186: Communicating With A Computer (Pc)
Communicating with a Computer (PC) This chapter describes how to connect the instrument to a computer. The instrument and computer must be connected using either a LAN cable or a USB cable. 9.1 Using the Logger Utility ............p. 1 85 9.2 Configuring and Establishing a USB Connection .....p. ...
Page 187 Available functionality : Yes; --: No Description Reference page Remote operation using the HTTP server function – p. 2 01 * Manual acquisition of data using the FTP server function – p. 2 06  Automatic sending of data using the FTP client function –...
Page 188: Using The Logger Utility
Using the Logger Utility 9.1 Using the Logger Utility A software application called Logger Utility comes with the instrument. • You can analyze measurement data. • You can convert measurement data (from binary format to CSV format). Supported models LR8450, LR8450-01, LR8400, LR8401, LR8402, LR8410, LR8416, LR8431, LR8432, 8423 For more information about how to install and use the Logger Utility, see “Logger Utility User Manual”...
Page 189: Configuring And Establishing A Usb Connection
(Windows 7 or Windows 8) [DriverSetupWin7Win8.msi] on the CD. If you have already installed the Logger Utility, you can run the file from the following location: [c:\Program Files(x86)\HIOKI\LoggerUtility\Driver\DriverSetupWin7Win8.msi] (Windows 10) [DriverSetupWin10.msi] on the CD. If you have already installed the Logger Utility, you can run the file from the following location: [c:\Program Files(x86)\HIOKI\LoggerUtility\Driver\DriverSetupWin10.msi]...
Page 190 A dialog box asking for permission to install the software will be displayed. Select the [Always trust software from "HIOKI E.E. CORPORATION".] checkbox and click [Install]. The installation will complete, and a dialog box will be displayed. Click [Close].
Page 191: Connecting The Instrument To The Computer With A Usb Cable
Configuring and Establishing a USB Connection Connecting the instrument to the computer with a USB cable This section describes how to connect the instrument to a computer with a USB cable. NOTICE Do not unplug the USB cable while the instrument is sending or receiving data. „...
Page 192: Configuring And Establishing A Lan Connection
Configuring and Establishing a LAN Connection 9.3 Configuring and Establishing a LAN Connection This section describes how to connect the instrument to a computer with a LAN cable. • You can remotely control the instrument (to configure settings, acquire data, or monitor its screen) using a standard web browser such as Internet Explorer ®...
Page 193 Configuring and Establishing a LAN Connection Connecting the instrument to a single computer (local network with no external connections) The following addresses are recommended if there is no network administrator or if you are responsible for configuring the settings yourself: Example settings DHCP Host name...
Page 194: Configuring The Computer's Network Settings
Configuring and Establishing a LAN Connection Configuring the computer’s network settings These settings are configured in the same way, regardless of whether you are connecting the instrument to one computer or multiple instruments to a single computer via a hub. This explanation envisions the following network: •...
Page 195: Configuring The Instrument's Lan Settings
Configuring and Establishing a LAN Connection Configuring the instrument’s LAN settings > > Configure the settings. See “Configuring LAN settings” (p. 1 94). Press the ENTER key while [Apply] is selected. The LAN connection will be enabled (the USB connection may be interrupted).
Page 196 Configuring and Establishing a LAN Connection LAN configuration process To connect the instrument Objective To connect the instrument to an existing network to a single computer Enter the hostname, authentication username, and authentication password. The instrument will The instrument will automatically acquire an connect to the network IP address and connect to...
Page 197 Configuring and Establishing a LAN Connection Configuring LAN settings To communicate with the instrument over the LAN, configure the following settings: • [DHCP] [DHCP] is set to [ON], the instrument will automatically acquire the IP address and subnet mask. Disables the DHCP function. ...
Page 198 Configuring and Establishing a LAN Connection Example settings • Connecting the instrument to a single computer DHCP Host name LOGGER IP address 192.168.1.2 Subnet mask 255.255.255.0 Port number 880X Gateway • Connecting multiple instruments to a computer via a hub This section describes how to connect the instrument to a local network without any external connections.
Page 199: Connecting The Instrument To A Computer With A Lan Cable
Configuring and Establishing a LAN Connection Connecting the instrument to a computer with a LAN cable This section describes how to connect the instrument to a computer with a LAN cable. NOTICE Do not unplug the LAN cable while the instrument is sending or receiving data. „...
Page 200 Configuring and Establishing a LAN Connection Connecting the instrument to a single computer You will need: 9642 LAN Cable (×1) Connect the 9642 LAN Cable to the LAN connector on the instrument. Connect the other end of the cable to the computer’s LAN connector.
Page 201 Configuring and Establishing a LAN Connection Troubleshooting LAN connections Are the cables connected properly? • There may be a faulty contact in the connector. Disconnect and reconnect the cable. • The LINK LED on the instrument’s LAN connector will light up once a connection has been established.
Page 202: Exporting Acquired Data To A Computer Over Wireless Lan
Exporting Acquired Data to a Computer Over Wireless LAN 9.4 Exporting Acquired Data to a Computer Over Wireless LAN Configuring and Establishing a Wireless LAN Connection (LR8450-01 only) The LR8450-01 is equipped with various features that take advantage of wireless LAN communications.
Page 203 Exporting Acquired Data to a Computer Over Wireless LAN Select the [Use wireless function] check box. Under [Mode], select a setting. Station  Works as a terminal that can connect to an access point in the wireless LAN. The setting cannot be changed from [Station]. New functions will be available in the future. Under [SSID], set an identification name for an access point.
Page 204: Performing Remote Measurement With The Http Server
Performing Remote Measurement with the HTTP Server 9.5 Performing Remote Measurement with the HTTP Server This section describes how to use the instrument’s HTTP server function to control it remotely using a computer. You can configure instrument settings and monitor screens using a standard browser such as ®...
Page 205 Performing Remote Measurement with the HTTP Server If nothing appears on the HTTP screen Perform the following steps. Under the Internet Explorer settings, click [Tools] > [Internet options]. ® Enable [Use HTTP1.1] on the [Advanced] tab and disable [Use HTTP1.1 through proxy connections].
Page 206: Remote Control Using A Browser
Performing Remote Measurement with the HTTP Server Remote control using a browser This section describes how to display the instrument’s screen in a browser. You can control the instrument remotely by clicking keys shown in the browser. However, power key operation and attempts to engage the key lock (pressing and holding the key) are ignored.
Page 207: Starting And Stopping Measurement
Performing Remote Measurement with the HTTP Server Starting and stopping measurement This section describes how to start and stop measurement from a browser. Launch Internet Explorer on the computer. ® Enter the instrument’s address into the address bar (for example, Click [START/STOP].
Page 208: Entering Comments
Performing Remote Measurement with the HTTP Server Entering comments This section describes how to enter title and channel comments from a browser. Launch Internet Explorer on the computer. ® Enter the instrument’s address into the address bar (for example, Click [COMMENT SET].
Page 209: Acquiring Data Using The Ftp Server
Acquiring Data Using the FTP Server 9.6 Acquiring Data Using the FTP Server This section describes how to use the instrument’s FTP server function to acquire files from the instrument using a computer. The file transfer protocol (FTP) is a protocol for sending files over a network. You can use an FTP client on a computer to download files from an SD Memory Card or USB Drive connected to the instrument.
Page 210 Acquiring Data Using the FTP Server Click the type of data you wish to download. sdcard SD Memory Card USB Drive The folder will open. Right-click a filename and click [Copy To Folder]. The file will be copied. IMPORTANT Depending on the computer’s FTP client and browser, some software may delete a file or folder that is being moved if the operation is canceled while still in progress.
Page 211 Acquiring Data Using the FTP Server ® • Internet Explorer may not acquire the most recent data if older data from the last access has been stored in temporary Internet files. If the instrument’s data has been updated, use FTP after relaunching Internet Explorer ®...
Page 212 Acquiring Data Using the FTP Server (When [FTP/HTTP authentication settings] is set to [ON]) Configure the following settings: See “Text entry method” (p. 8 ). • [User name] Username used when connecting to the instrument from an FTP client or HTTP user agent String of up to 12 single-byte characters •...
Page 213: Sending Data Using The Ftp Client
Sending Data Using the FTP Client 9.7 Sending Data Using the FTP Client This section describes how to send files saved automatically on instrument media (SD Memory Card and USB Drive) to an FTP server on a computer. To do so, specify the IP address of a computer on which an FTP server is running. You’ll need to register the instrument’s username and password with the FTP server.
Page 214: Example Computer Ftp Server Settings
Sending Data Using the FTP Client Example computer FTP server settings Settings vary with the operating system and software being used. Consult the FTP server’s help file and your network administrator. Enabling FTP (Windows 7) Click [Control Panel] > [Programs]. Click [Turn Windows features on or off].
Page 215 Sending Data Using the FTP Client Configuring FTP (Windows 7) Click [Control Panel] > [System and Security]. Click [Administrative Tools]. Double-click [Internet Information Services (IIS) Manager].
Page 216 Sending Data Using the FTP Client Right-click the item displayed under [Connections] on the left pane and click [Add FTP Site...] on the shortcut menu. Communications may be blocked depending on how any security software (for example, a firewall) has been configured.
Page 217 Sending Data Using the FTP Client [Authentication and Authorization Information] as follows: [Authentication] Select [Basic]. [Authorization] [All users] [Read] Select both [Permissions] [Write]. Click [Finish].
Page 218 Sending Data Using the FTP Client Enabling FTP traffic with the firewall (Windows 7) Click [Control Panel] > [System and Security]. Click [Windows Firewall]. Click [Advanced settings]. Unit Measure Channel Trigger Alarm Calculation System...
Page 219 Sending Data Using the FTP Client Click [Inbound Rules] on the left pane, right-click [FTP server (FTP Traffic-In)], and click [Properties] in the shortcut menu. [FTP Server (FTP Traffic-In) Properties] dialog box will be displayed. Select [Enables] on the [General] and then click [OK].
Page 220 Sending Data Using the FTP Client Configuring accessing users (Windows 7) Click [Control Panel] > [System and Security] > [Administrative Tools]. Double-click [Computer Management]. Right-click [Users] under [Local Users and Groups] and select [New User...] from the shortcut menu. Unit Measure Channel Trigger...
Page 221 Sending Data Using the FTP Client Enter the username in the [User name] [Full name] fields and the password in the [Password] [Confirm password] fields. Select the [Password never expires] checkbox. Click [Create]. Verify that the set username has been registered and click [×] (the...
Page 222 Sending Data Using the FTP Client Enabling access to the FTP folder (Windows 7) Right-click the folder specified [Physical path] under [Content Directory] in the FTP site settings and select [Properties]. Example: C:\inetpub\ftproot [ftproot Properties] dialog box will open. Select [Users] under [Group or user...
Page 223 Sending Data Using the FTP Client Enabling FTP (Windows 10) Click [Control Panel] > [Programs]. Click [Turn Windows features on or off]. [Windows Features] dialog box will be displayed. Click on the left side of [Internet Information Services] to expand the view.
Page 224 Sending Data Using the FTP Client Configuring FTP (Windows 10) Click [System and Security] under [Control Panel]. Click [Administrative Tools]. Double-click [Internet Information Services (IIS) Manager]. Right-click the item displayed under [Connections] on the left side of the screen and click [Add FTP Site...] the shortcut menu.
Page 225 Sending Data Using the FTP Client Enter [Site Information]. Example: [FTP site name]: LOGGER [Physical path] under [Content Directory], specify the location where data from FTP clients should be saved. Click [Next]. [Binding] [SSL] as follows: [IP Address] [All Unassigned] [Port] [21] [Start FTP site...
Page 226 Sending Data Using the FTP Client Configuring accessing users (Windows 10) Enter the username and password for using FTP. Enter the username and password set here in the [User name] [Password] fields on the instrument’s FTP client settings screen. (See “2 Configure the settings.” [p. 2 26].) Select [Computer Management] from...
Page 227 Sending Data Using the FTP Client Configuring the firewall (Windows 10) Click [Allow an app through Windows Firewall] under [System and Security] in step (p. 2 21). Select [FTP Server]. Select whether you are using a private or public connection to the instrument. Restarting the FTP server ®...
Page 228: Configuring Automatic Sending Of Data
Sending Data Using the FTP Client Configuring automatic sending of data This section describes how to send files saved automatically on instrument media to an FTP server on a computer. Instructions This examples describes how to send data to an FTP server with the IP address 192.168.1.1. Instrument Computer FTP server (Example: 192.168.1.2)
Page 229 Sending Data Using the FTP Client Configure the settings. • Under [FTP data auto send], set the function to [ON]. • [FTP server name] Set the hostname or IP address of the FTP server. See “Configuring the computer’s network settings” (p. 1 91). String of up to 32 single-byte characters (examples: LOGGER, 192.168.1.1) •...
Page 230: Sending A Test File
Sending Data Using the FTP Client Sending a test file This section describes how to check whether the instrument can send a file using FTP. > > Press the ENTER key while [FTP data auto send settings...] is selected. The settings window will open. The identifiers whose checkboxes are selected under [Filename identifier] will be added to the...
Page 231: Checking Ftp Communications Status
Sending Data Using the FTP Client Data transmission times Transfer time (s) = File size (KB) / transfer speed (KB/s) + transfer preparation time (s) For more information about file sizes, see “11.8 File Size” (p. 2 89). Use 4 MB/s as a rough transfer speed and 3 s as a rough transfer preparation time. Example: For a 40 MB file Transfer time = 40 MB/4 (MB/s) + 3 (s) = 10 + 3 (s) = 13 (s) Checking FTP communications status...
Page 232: Controlling The Instrument With Communication Commands
Controlling the Instrument with Communication Commands 9.8 Controlling the Instrument with Communication Commands This section describes how to control and communicate with the instrument by sending communication commands from a computer. The instrument and computer must be connected using either a USB cable or a LAN cable. See “Connecting the instrument to the computer with a USB cable”...
Page 233 Controlling the Instrument with Communication Commands...
Page 234: Specifications
Specifications 10.1 Basic Specifications LR8450/LR8450-01 Memory HiLogger General specifications -1. Basic specifications Product warranty 3 years period Accuracy guarantee 1 year period Maximum number of 4 plug-in modules + 7 wireless modules* connectable modules *: LR8450-01 only Connectable modules U8550 Voltage/Temp Unit U8551 Universal Unit (Plug-in modules) U8552 Voltage/Temp Unit...
Page 235 Basic Specifications Vibration resistance JIS D 1601:1995 5.3 (1) Class 1: Passenger vehicles; conditions: Class A equivalent (4 h along X-axis and 2 h along Y- and Z-axes at a vibration acceleration of 45 m/s [4.6 G]) -2. Display Display 7-inch TFT color LCD (WVGA 800 ×...
Page 236 Basic Specifications -4. Interface specifications The LAN interface and USB interface (function) cannot be used at the same time. LAN interface IEEE 802.3 Ethernet, automatic 100Base-TX/1000Base-T detection Auto MDI-X, DHCP, DNS support Connector RJ-45 Maximum cable length 100 m LAN functionality Configuring settings and controlling recording using communications commands Manually acquiring data using the FTP server...
Page 237 Basic Specifications USB interface USB standard USB 2.0 compliant (function) Connector Series mini-B receptacle USB functionality Configuring settings and controlling recording using communications commands USB drive mode: Transferring data from a connected SD Memory Card to a computer SD card slot Standard compliance SD standard-compliant slot ×...
Page 238 Basic Specifications Recording Recording mode Normal Recording intervals 1 ms*, 2 ms*, 5 ms*, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s, 30 s, 1 min., 2 min., 5 min., 10 min., 20 min., 30 min., 1 h *: Setting available only when using a module with data refresh intervals including 1 ms.
Page 239 Basic Specifications Display Sheet function Display sheets can be switched between all channels and individual modules. All-channel display sheet: Maximum 120 analog channels, 30 waveform calculation channels, 8 pulse/logic channels, 8 alarm channels Waveform display Time-axis waveform Simultaneous display of gages and settings (channel screen display representative settings and display settings)
Page 240 Basic Specifications Files -1. Saving Save destinations SD Memory Card/USB Drive (user-selectable) Filenames Up to 8 single-byte characters Automatic numbering/dating (user-selectable) Auto saving Waveform data (real-time saving) Off, binary format, or text format (user-selectable) Numerical calculation results (saved after recording) Off or text format (user-selectable) When text format is selected, the user can choose whether to save all calculations in one file or to save each calculation in its own file.
Page 241 Basic Specifications Decimation Decimate and save Off or a value from 1/2 to 1/100,000 (user-selectable) (text format only) -2. Loading data Loading saved data The user can specify a position and then load up to 256 M data points of previously saved text-format data (when recording 1 analog channel;...
Page 242 Basic Specifications Triggers Trigger method Digital comparison method Trigger timing Start, stop, or start & stop Trigger conditions AND/OR operation performed on trigger source, interval trigger, or external trigger When triggers are disabled, free run Trigger sources Analog, pulse, logic, waveform calculations Trigger types Analog, pulse, Level triggers...
Page 243 Basic Specifications Alarms Alarm conditions Set separately for ALM1 to ALM8 The system will output an alarm when any of the following conditions are satisfied: • AND/OR operation performed on alarm sources • Low battery • Thermocouple wire break Alarm sources Analog, pulse, logic, waveform calculations Low remaining The system will output an alarm when the instrument’s remaining battery life declines.
Page 244 Basic Specifications Waveform search Search waveforms and display target location in the center of the waveform screen. function Search conditions Search by choosing level, window, maximum value, minimum value, local maximum value, or local minimum value. Search range All data in the internal buffer memory or data between the A/B cursors (on the vertical axis) Search targets Analog, pulse, logic, waveform calculations...
Page 245 Basic Specifications Input Pulse/logic input Number of channels 8 channels (common GND, non-isolated) Exclusive setting for pulse/logic input for individual channels Terminal block Push-button type terminal block Adaptive input format Non-voltage contact, open collector (PNP open collector requires external resistor), or voltage input Maximum input voltage 0 V to 42 V DC Ω...
Page 246: Plug-In Module Specifications
Plug-in Module Specifications 10.2 Plug-in Module Specifications U8550 Voltage/Temp Unit General specifications Compatible logger LR8450/LR8450-01 Memory HiLogger Operating Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) environment Operating temperature −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) and humidity range Storage temperature −20°C to 60°C (−4°F to 140°F), 80% RH or less (non-condensing)
Page 247 Accuracy guarantee 1 year conditions period Accuracy guarantee 1 year period after adjustment made by Hioki Accuracy guarantee 23°C ±5°C (73°F±9°F), 80% RH or less temperature and humidity range Warm-up time At least 30 min. after connecting to the LR8450/LR8450-01...
Page 248 Plug-in Module Specifications Measurement range, maximum resolution, measurable range, and measurement accuracy figures Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Voltage – 10 mV f.s. 500 nV −10 mV to 10 mV ±10 µV 20 mV f.s. 1 μV −20 mV to 20 mV ±20 µV...
Page 249 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C Greater than or equal to −100°C ±0.7°C (Not including and less than 0°C accuracy of Greater than or equal to 0°C and ±0.5°C reference less than or equal to 100°C junction...
Page 250 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C 0°C to 100°C ±4.4°C (Not including 500°C f.s. 0.05°C Greater than or equal to 0°C and ±4.4°C accuracy of less than 100°C reference junction Greater than or equal to 100°C ±2.9°C...
Page 251 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Humidity – 100% RH f.s. 0.1% RH 5.0% RH to 95.0% RH As per measurement accuracy of the Z2000 Humidity Sensor ±10% RH ±8% RH ±10% RH ±8% RH ±6% RH ±8% RH...
Page 252: U8551 Universal Unit
Plug-in Module Specifications U8551 Universal Unit General specifications Compatible logger LR8450/LR8450-01 Memory HiLogger Operating Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) environment Operating temperature −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) and humidity range Storage temperature −20°C to 60°C (−4°F to 140°F), 80% RH or less (non-condensing) and humidity range...
Page 253 Accuracy guarantee 1 year conditions period Accuracy guarantee 1 year period after adjustment made by Hioki Accuracy guarantee 23°C ±5°C (73°F±9°F), 80% RH or less temperature and humidity range Warm-up time At least 30 min. after connecting to the LR8450/LR8450-01...
Page 254 Plug-in Module Specifications Measurement range, maximum resolution, measurable range, and measurement accuracy figures Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Voltage – 10 mV f.s. 500 nV −10 mV to 10 mV ±10 µV 20 mV f.s. 1 μV −20 mV to 20 mV ±20 µV...
Page 255 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C Greater than or equal to −100°C ±0.7°C (Not including and less than 0°C accuracy of Greater than or equal to 0°C and ±0.5°C reference less than or equal to 100°C junction...
Page 256 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C 0°C to 100°C ±4.4°C (Not including 500°C f.s. 0.05°C Greater than or equal to 0°C and ±4.4°C accuracy of less than 100°C reference junction Greater than or equal to 100°C ±2.9°C...
Page 257 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Resistance Pt100 100°C f.s. 0.01°C −100°C to 100°C ±0.5°C temperature 500°C f.s. 0.05°C −200°C to 500°C ±0.7°C detector 2000°C f.s. 0.1°C −200°C to 800°C ±0.9°C JPt100 100°C f.s. 0.01°C −100°C to 100°C ±0.5°C...
Page 258: U8552 Voltage/Temp Unit
Plug-in Module Specifications U8552 Voltage/Temp Unit General specifications Compatible logger LR8450/LR8450-01 Memory HiLogger Operating Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) environment Operating temperature −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) and humidity range Storage temperature −20°C to 60°C (−4°F to 140°F), 80% RH or less (non-condensing) and humidity range...
Page 259 Plug-in Module Specifications Reference junction Internal/external (user-selectable) (during thermocouple measurement) compensation Thermocouple wire The system will check for wire breaks each date refresh interval during thermocouple break detection measurement. On/Off (user-selectable) (set for entire module) Detection current: 5 μA ±20% (No current flows while acquiring measurement data.) Setting not available when the data refresh interval is set to 10 ms.
Page 260 Accuracy guarantee 1 year conditions period Accuracy guarantee 1 year period after adjustment made by Hioki Accuracy guarantee 23°C ±5°C (73°F±9°F), 80% RH or less temperature and humidity range Warm-up time At least 30 min. after connecting to the LR8450/LR8450-01...
Page 261 Plug-in Module Specifications Measurement range, maximum resolution, measurable range, and measurement accuracy figures Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Voltage – 10 mV f.s. 500 nV −10 mV to 10 mV ±10 µV 20 mV f.s. 1 μV −20 mV to 20 mV ±20 µV...
Page 262 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C Greater than or equal to −100°C ±0.7°C (Not including and less than 0°C accuracy of Greater than or equal to 0°C and ±0.5°C reference less than or equal to 100°C junction...
Page 263 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Thermocouple 100°C f.s. 0.01°C 0°C to 100°C ±4.4°C (Not including 500°C f.s. 0.05°C Greater than or equal to 0°C and ±4.4°C accuracy of less than 100°C reference junction Greater than or equal to 100°C ±2.9°C...
Page 264 Plug-in Module Specifications Measurement Maximum Measurement Type Range Measurable range target resolution accuracy Humidity – 100% RH 0.1% RH 5.0% RH to 95.0% RH As per f.s. measurement accuracy of the Z2000 Humidity Sensor ±10% RH ±8% RH ±10% RH ±8% RH ±6% RH ±8% RH...
Page 265: U8553 High Speed Voltage Unit
Plug-in Module Specifications U8553 High Speed Voltage Unit General specifications Compatible logger LR8450/LR8450-01 Memory HiLogger Operating Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) environment Operating temperature −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) and humidity range Storage temperature −20°C to 60°C (−4°F to 140°F), 80% RH or less (non-condensing)
Page 266 Accuracy guarantee 1 year conditions period Accuracy guarantee 1 year period after adjustment made by Hioki Accuracy guarantee 23°C ±5°C (73°F±9°F), 80% RH or less temperature and humidity range Warm-up time At least 30 min. after connecting to the LR8450/LR8450-01...
Page 267 Plug-in Module Specifications Effect of radiated ±5% f.s. (80 MHz to 1 GHz: 10 V/m; 1 GHz to 6 GHz: 3 V/m) (in the 10 V f.s. voltage radio-frequency range) electromagnetic field Effect of conducted ±5% f.s. at 10 V (in the 10 V f.s. voltage range) radio-frequency electromagnetic field...
Page 268: U8554 Strain Unit
Plug-in Module Specifications U8554 Strain Unit General specifications Compatible logger LR8450/LR8450-01 Memory HiLogger Operating Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) environment Operating temperature −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) and humidity range Storage temperature −20°C to 60°C (−4°F to 140°F), 80% RH or less (non-condensing) and humidity range...
Page 269 Accuracy guarantee 1 year conditions period Accuracy guarantee 1 year period after adjustment made by Hioki Accuracy guarantee 23°C ±5°C (73°F±9°F), 80% RH or less temperature and humidity range Warm-up time At least 30 min. after connecting to the LR8450/LR8450-01...
Page 270 Plug-in Module Specifications Measurement range, maximum resolution, measurable range, and measurement accuracy figures Measurement Maximum Measurement Range Measurable range target resolution accuracy* Voltage 1 mV f.s. 50 nV −1 mV to 1 mV ±9 µV 2 mV f.s. 100 nV −2 mV to 2 mV ±10 µV 5 mV f.s.
Page 271 Plug-in Module Specifications...
Page 272: Knowledge And Information
Knowledge and Information 11.1 Measuring Temperature This section provides precautionary information related to thermocouples, which are widely used to measure temperature. Choosing the right thermocouple The following thermocouples can be used with the instrument: Temperature range Thermocouple for which tolerance is Characteristics defined by JIS C 1602 (°C) -40 to...
Page 273: Measuring Strain
Measuring Strain 11.2 Measuring Strain Tension and compression on a single axis Gage method Bridge circuit diagram Output Remarks 1-gage method (2-wire)* e = ε This is the most typical Output ε: Strain connection method. voltage Applied voltage 1-gage method (3-wire)* This connection method cancels Output the effects of temperature on...
Page 274: Bending Stress
Measuring Strain *1: Must be corrected using (1,000,000 × measured value) / (1,000,000 - measured value). The scaling function cannot be used to perform correction. Instead, perform correction using the waveform calculation function. Example: True strain value if the instrument measures a strain value of 50,000 με while using the 1-gage/2- wire method (1,000,000 ×...
Page 275: Torsional Stress
Measuring Strain Torsional stress Gage method Bridge circuit diagram Output Remarks 2-gage method e = 2ε When measuring strain in the Output (adjacent side) rotational direction, two strain voltage (torsion strain) gages are offset so that they intersect at an angle of 90°. Use a scaling conversion ratio slope of 1/2.
Page 276: Converting Values To Stress
Measuring Strain Converting values to stress Multiply Young’s modulus by the measured value. σ (stress) = E (Young’s modulus) × ε (measured value) Example: When measuring compression stress For an aluminum measurement target being measured using the 1-gage method, the following table indicates a Young’s modulus value of 73 (GPa).
Page 277: Correcting For Wiring Resistance
Measuring Strain Correcting for wiring resistance When using long strain gage wires, measurement is affected by their wiring resistance. True strain values and strain values measured by the instrument are related as shown below. You can use the scaling function to correct strain values. Set the conversion ratio slope to (R + rL) / R. True strain value ε...
Page 278: Digital Filter Characteristics
Digital filter characteristics 11.3 Digital filter characteristics The U8550, U8551, U8552, U8553, LR8530, LR8531, LR8532, and LR8533 have a digital filter. The cutoff frequency is set automatically based on the measurement module type, number of channels in use, data refresh interval, power supply frequency filter, and wire break detection setting.
Page 279: Noise Countermeasures
Noise Countermeasures 11.4 Noise Countermeasures This section describes how to deal with a noisy environment. Noise contamination mechanisms Noise sources Manufacturing plants use large currents at 50 Hz/60 Hz as a source of power. Many loads are characterized by an inductive load, for example motors and solenoids. Equipment such as inverters and high-frequency induction furnaces uses capacitor input-type switching power supplies that carry large pulsed currents.
Page 280 Noise Countermeasures Equivalent circuit for a noise contamination route Noise such as the following directly affects measured values as normal-mode voltage. • Electromagnetic induction noise that occurs when an alternating field generated by an inverter or commercial power line is coupled with an instrument’s input line loop •...
Page 281: Example Noise Countermeasures
Noise Countermeasures Example noise countermeasures Ensuring devices are grounded reliably • Ground the instrument and wireless modules reliably. You can ground the chassis by connecting the AC Adapter’s grounded two-prong power cord to an outlet with a grounding electrode. • Ensure the measurement target’s chassis is grounded reliably. Ensure the measurement target’s chassis is reliably connected to a suitable ground.
Page 282 Noise Countermeasures Common-mode noise countermeasures Inverter or commercial Electromagnetic power supply induction noise Electrostatic induction noise Device under measurement Measurement module Enm' Thermocouple Normal-mode voltage Coupled impedance Ground line Voltage produced by earth current (common-mode voltage) Zearth Zearth Zearth Ground impedance iearth Connect the chassis GND on the Either connect to a ground line with low resistance or...
Page 283 Noise Countermeasures Normal-mode noise countermeasures Inverter or commercial power supply Power line Electromagnetic coupling Device under measurement Measurement module Capacitive coupling Thermocouple Shielded Twisted-pair wire Ground shielded wires on the signal side. Keep signal lines (thermocouples) away from wires that could serve as sources of noise (power supply lines, etc.).
Page 284 Noise Countermeasures Adding capacitors to signal lines An effective way to address noise caused by superposed signal sources or high-frequency pulses is to insert a capacitor between the positive and negative input terminals. The capacitor will keep the noise out of the device’s internal circuitry. Use a capacitor whose rated voltage is greater than the voltage being input.
Page 285: Scan Timing
Scan Timing 11.5 Scan Timing The following modules acquire data by using relays to switch and scan input channels: • U8550 Voltage/Temp Module • U8551 Universal Module • U8552 Voltage/Temp Module • LR8530 Wireless Voltage/Temp Module • LR8531 Wireless Universal Module •...
Page 286: U8550, U8551, Lr8530, And Lr8531
Scan Timing U8550, U8551, LR8530, and LR8531 The following diagrams provide examples of typical scan timing for the U8550, U8551, LR8530, and LR8531. Example: Data refresh interval of 10 ms, measurement on for all 15 channels, wire break detection off Channels 1 to 15 are scanned with a duration of approximately 0.5 ms per channel.
Page 287: U8552 And Lr8532
Scan Timing U8552 and LR8532 The following diagrams provide examples of typical scan timing for the U8552 and LR8532 when using from 16 to 30 channels. If the number of channels in use is 15 or less, the scan timing is the same as for the U8550, U8551, LR8530, and LR8531.
Page 288: U8553 And Lr8533
Scan Timing U8553 and LR8533 The following diagrams provide examples of typical scan timing for the U8553 and LR8533. Example: Data refresh interval of 1 ms, measurement on for all 5 channels Channels 1 to 5 are scanned with a duration of approximately 0.18 ms per channel. Data refresh interval: 1 ms About 0.18 ms Example: Data refresh interval of 1 ms, measurement on for CH1 and CH5...
Page 289: Filenames
Filenames 11.6 Filenames Filenames consist of the following parts: WAVE0001.MEM Item File type Automatic numbering Extension Automatic Data type Folder File type Extension numbering Setting conditions CONFIG CONF Starting at 0001 .SET Waveform data DATA * WAVE * Starting at 0001 .MEM AUTO * .CSV *...
Page 290: Text Format
Text Format 11.7 Text Format Files saved in the text format consist of header and data sections. The header includes the following information: (1) Filename and version number (2) Title comment (3) Trigger time (4) Channel number for each column* (5) Measurement* (6) Range (7) Module identifier...
Page 291 Text Format *3: Outputted according to the measured data type as follows. Data type Output format Analog Exponential notation (six signiﬁcant ﬁgures) Pulse, waveform Exponential notation (10 signiﬁcant ﬁgures) calculation Logic 0: Low, 1: High Alarm 0: Not issued, 1: Issued Alarm source Hexadecimal notation (blank character when no alarm is issued)* Event mark...
Page 292: File Size
File Size 11.8 File Size This section describes how to calculate the size of binary format files. Unit: bytes File size Header size + data size Header size Shared header size + text header size + binary header size Shared header size Text header size 512 ×...
Page 293: Settings After Initialization (System Reset)
Settings after Initialization (System Reset) 11.9 Settings after Initialization (System Reset) This section describes the settings (for the U8550) at the time of shipment from the factory and following initialization (system reset). Screen Setting Main Setting Default setting Measure Record Recording mode Normal Recording interval...
Page 294 Settings after Initialization (System Reset) Screen Setting Main Setting Default setting Channel Individual Input (for U8550) Measurement (ON) Input type Voltage Range 10 mV Display Position Zoom ×1 Zero position Scaling Comment – Numerical threshold Trigger Common Trigger Timing Start Pre-trigger Time 0 Days 00:00:00...
Page 295: Maximum Recording Times
Maximum Recording Times 11.10 Maximum Recording Times The maximum amount of time during which data can be stored in the instrument’s internal buffer memory or on its storage media can be calculated as shown below. If saving data in binary format, the maximum recording time can be calculated using the following formula: Maximum recording time = Recording capacity* ×...
Page 296: Application Measurement
Application Measurement 11.11 Application Measurement Recording instrumentation signals (4-20 mA) This section introduces a method for recording current output (4-20 mA) from instrumentation devices. Average values for each minute can also be recorded using numerical calculations. • Applicable modules: U8550, U8551, U8552, U8553, LR8530, LR8531, LR8532, LR8533 Ω...
Page 297 Application Measurement > > Configure the settings as follows: Media SD card Format (Waveform data) Binary Format (Numerical calculation results) Text On the [Calculation] > [Numerical] screen, configure the settings as follows: Numerical calculation Time split calculation Enable Split time 1 minute (0 Days 00:01) Type Average...
Page 298 Application Measurement > > [Module n] (n = 1, 2, . . .) Configure the settings as follows in the [Input] area for the channel being measured: Input type Voltage Range 1-5 V Ω Since a 250 resistor has been connected to the input terminals, 4 mA will be recorded as 1 V, and 20 mA will be recorded as 5 V.
Page 299: Measuring Power Consumption Using Pulse Output From A Watt-Hour Meter
Application Measurement Measuring power consumption using pulse output from a watt-hour meter This section introduces a method for measuring pulses from a watt-hour meter and converting them to power consumption. The method involves measuring the pulse output from a watt-hour meter (50,000 pulses per kWh) and recording the power consumption every 30 min.
Page 300 Application Measurement > > Configure the settings as follows: Media SD card Format Binary...
Page 301 Application Measurement > > Under [P1] in [Pulse], configure the settings as follows: Input type Count Count mode Addition Slope ↑ (depends on the specifications of watt-meter) Threshold 1 V (depends on the specifications of watt-meter) Filter ON * Scaling Decimal, 1 kWh = 5000 (5 k), Unit: kWh *To prevent false counting caused by chatter.
Page 302: Input Circuit Schematics
Input Circuit Schematics 11.12 Input Circuit Schematics This section provides input circuit schematics for the instrument. Analog input circuit: U8550, U8551, U8552, LR8530, LR8531, LR8532 • Voltage (10 mV f.s. to 2 V f.s. ranges), thermocouple Channel switching relay ＋－...
Page 303 Input Circuit Schematics • Resistance temperature detector (3-wire) Constant-current circuit Channel switching relay ＋－ SoL terminal is common Constant-current to all channels. circuit Analog input circuit: U8553, LR8533 • Voltage (100 mV f.s. to 2 V f.s. ranges) Channel switching relay ＋...
Page 304 Input Circuit Schematics Analog input circuits: U8554, LR8534 +2.5 V +1.2 V Ω −2.2 V Ω Ω Ω Ω +2.5 V −0.8 V −2.2 V Pulse input circuit Example connection to PLC output (negative- common output) Ω 100 k Ω 1.1 M 22 pF* *If the chatter prevention filter is on, 0.047 μF.
Page 305: Data Handling
Data Handling 11.13 Data Handling In the following circumstances, calculated values and saved data are treated as shown in the table below: • When the waveform significantly exceeds the range’s measurable range (+OVER, -OVER) • When communications are temporarily interrupted (NO DATA) •...
Page 306 Data Handling Wire break Input type Input range +OVER −OVER NO DATA detection Rotational speed 5000 r/s 2147483647 – – – 300000 r/min 2147483647 – – – When performing calculations, the values in the table above are treated as follows: : Included in calculation;...
Page 307: Displaying The Certification Number
Displaying the Certification Number 11.14 Displaying the Certification Number This section describes how to display the certification number built into the instrument. Instructions Press and hold the QUICK SET key for at least 3 s and release. The certification number will be displayed. The instrument cannot display the certification screen during measurement.
Page 308: Index
Index Display colors ............. 19, 21 Downsampling (thin and save) ....108, 113, 115 A/B cursors ............... 75 Accessories ............Quick Aggregation (numerical calculation) ABS ..............153 Ejecting media ............111 Negative .............. 153 Event marks............140 Positive..............153 Searching ............143 Total..............
Page 309 Index Part names and functions, screens ..... Quick Pattern triggers ........... 83, 92 Jump ................. 74 Plug-in modules ........... 243, Quick Position ..............36 Power frequency filter ..........166 P-P (peak-to-peak value) ........153 Prefix ................7 Key lock ............6, Quick Pre-trigger..............
Page 310 Index Setting the time............167 Simultaneously starting measurement ....182 Waveform background color ........165 SI prefixes..............7 Waveform calculations ........... 155 Smoothing ..............32 Waveform display ..........36, 62 Sorting files ............. 124 Waveform display colors ........19, 21 Specifications ............
