Configuring User Frame Transmission - Hioki MEMORY HiLOGGER LR8450 Instruction Manual

Configuring CAN Settings

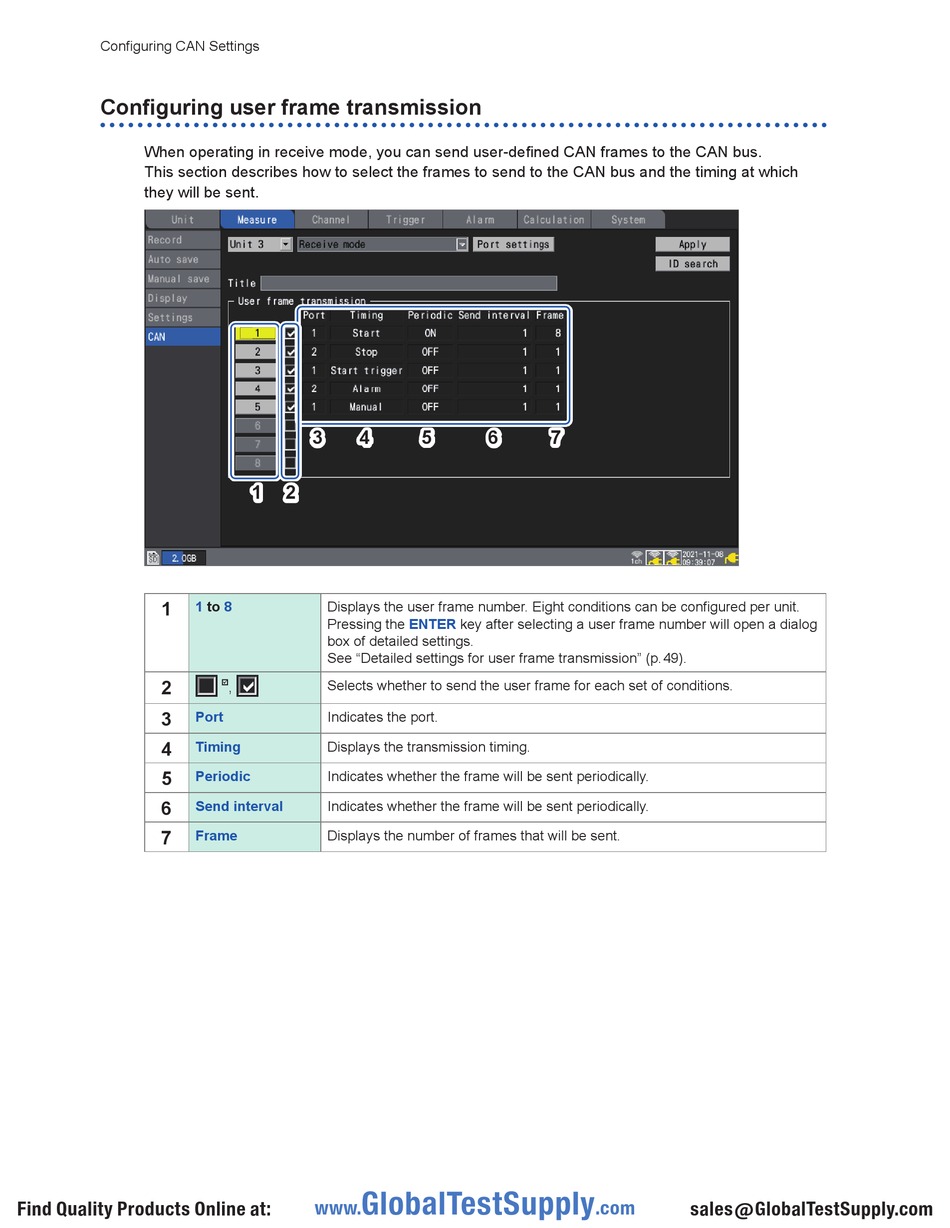

Configuring user frame transmission

When operating in receive mode, you can send user-defined CAN frames to the CAN bus.
This section describes how to select the frames to send to the CAN bus and the timing at which
they will be sent.
1 1
1
2 2
3 3
Port
4 4
Timing
5 5 Periodic
6 6
Send interval
7 7
Frame
Find Quality Products Online at:
3 3 4 4
1 1 2 2
to 8 Displays the user frame number. Eight conditions can be configured per unit.
Pressing the
box of detailed settings.
See "Detailed settings for user frame transmission" (p. 4 9).
Selects whether to send the user frame for each set of conditions.
,

Indicates the port.
Displays the transmission timing.
Indicates whether the frame will be sent periodically.
Indicates whether the frame will be sent periodically.
Displays the number of frames that will be sent.
