Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 373

Wireless Module Specifications
Options
2. Input, output, and measurement specifications
-1. Basic specifications
Number of CAN ports
Input terminal
Power supply
receptacle
Interface
Terminator
ACT LED
TERM LED
Data refresh interval
Baud rate
Sampling point
ACK
Operating mode
Find Quality Products Online at:
9713-01 CAN Cable
Z3230 Wireless LAN Adapter
Z1008 AC Adapter (3-prong grounded-type [2-pole] power cord)
Z1007 Battery Pack
C1012 Carrying Case
SP7001-95 Non-Contact CAN Sensor
2 ports
D-sub 9-pin male ×2
1 2 3
6 7 8

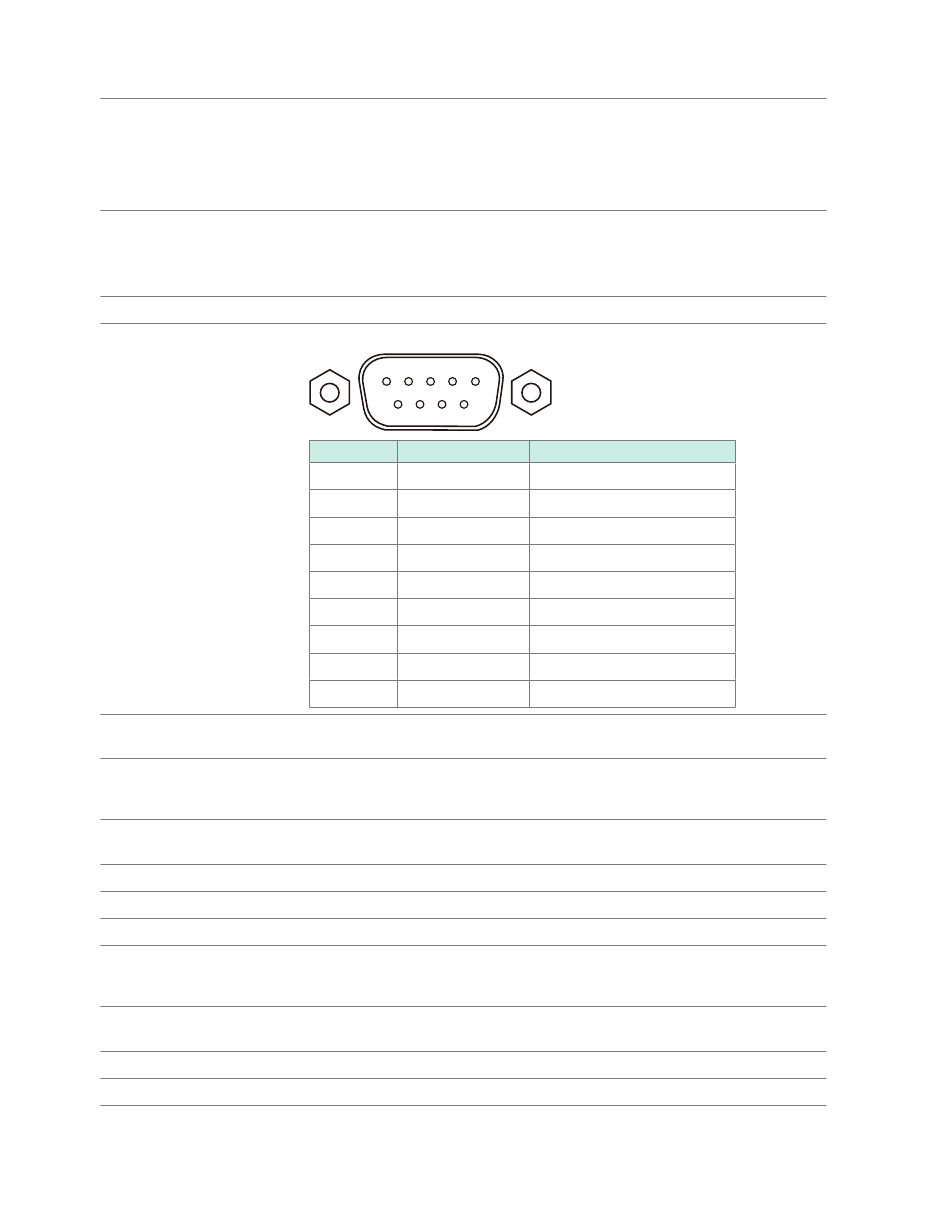

Pin Assignment
1 N.C.
2 CAN_L
3 GND
4 N.C.
5 N.C.
6 N.C.
7 CAN_H
8 N.C.
9 N.C.
USB port (Series A receptacle) ×2
For exclusively supplying power to Hioki Non-Contact CAN Sensor
CAN
CAN FD
CAN FD (non-ISO)
Can be enabled/disabled for each port.
Ω
Resistance value: 120 ±10
Displays the CAN bus operating status.
Illuminates when the terminator is enabled.
10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s
CAN, CAN FD (arbitration)
: 50k, 62.5k, 83.3k, 100k, 125k, 250k, 500k, 800k, 1000k [Baud]
CAN FD (data): 0.5M, 1M, 2M, 2.5M, 4M, 5M [Baud]
CAN, CAN FD (arbitration): 50.0% to 95.0%
CAN FD (data): 50.0% to 95.0%
The ACK response when receiving CAN data can be enabled/disabled.
Only receive mode is supported.
GlobalTestSupply
www.
4 5
9
Functionality
Unused
CAN_L communications line
Ground
Unused
Unused
Unused
CAN_H communications line
Unused
Unused
Ω
.com
sales@GlobalTestSupply.com
