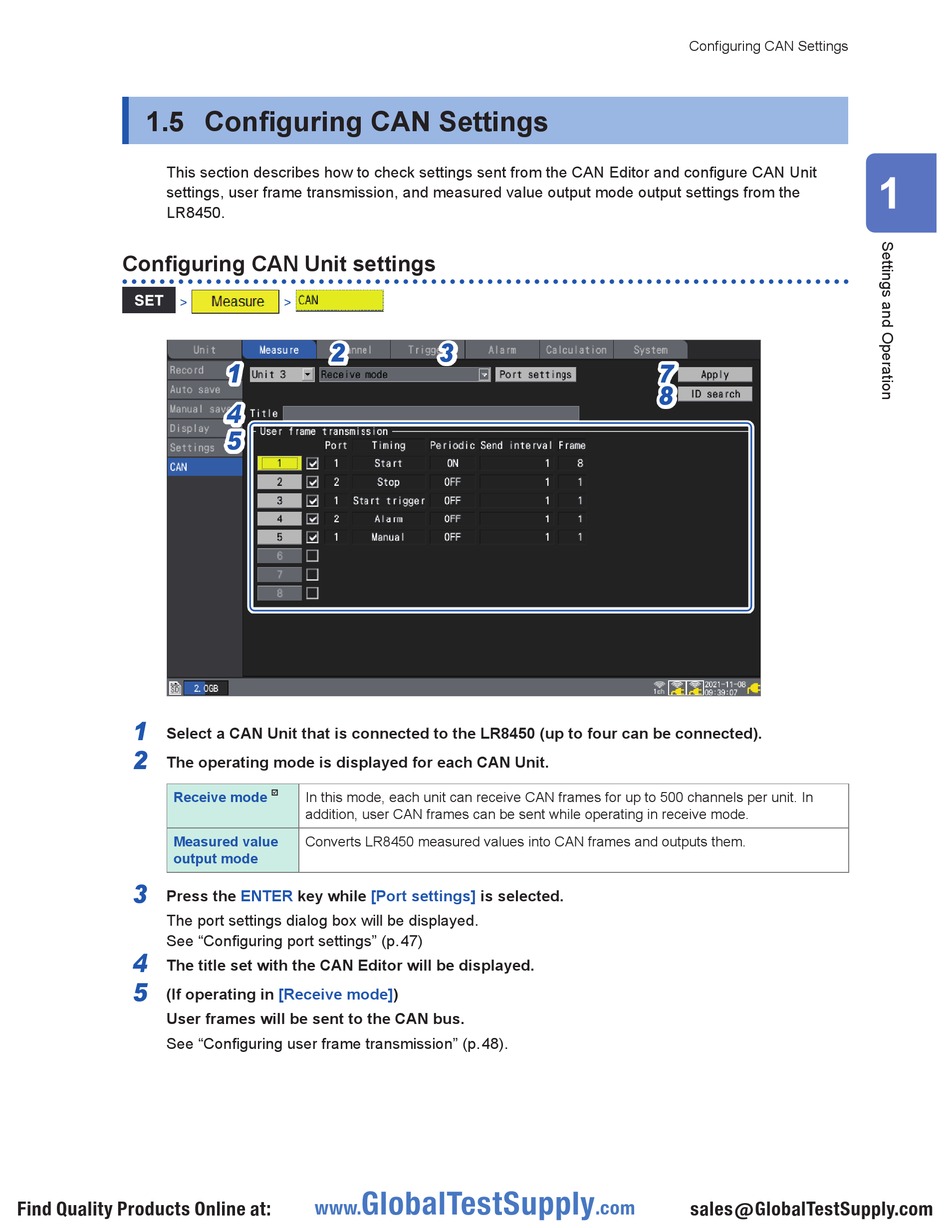

1.5 Configuring CAN Settings

This section describes how to check settings sent from the CAN Editor and configure CAN Unit
settings, user frame transmission, and measured value output mode output settings from the
LR8450.

Configuring CAN Unit settings

>
1
Select a CAN Unit that is connected to the LR8450 (up to four can be connected).
2
The operating mode is displayed for each CAN Unit.
Receive mode
Measured value
output mode
3
Press the
The port settings dialog box will be displayed.
See "Configuring port settings" (p. 4 7)
4
The title set with the CAN Editor will be displayed.
5
(If operating in
User frames will be sent to the CAN bus.
See "Configuring user frame transmission" (p. 4 8).
Find Quality Products Online at:
>
2 2
1 1
4 4
5 5
 In this mode, each unit can receive CAN frames for up to 500 channels per unit. In
addition, user CAN frames can be sent while operating in receive mode.
Converts LR8450 measured values into CAN frames and outputs them.
ENTER key while [Port settings]
[Receive mode])
GlobalTestSupply
www.
3 3
is selected.
.com

Configuring CAN Settings
