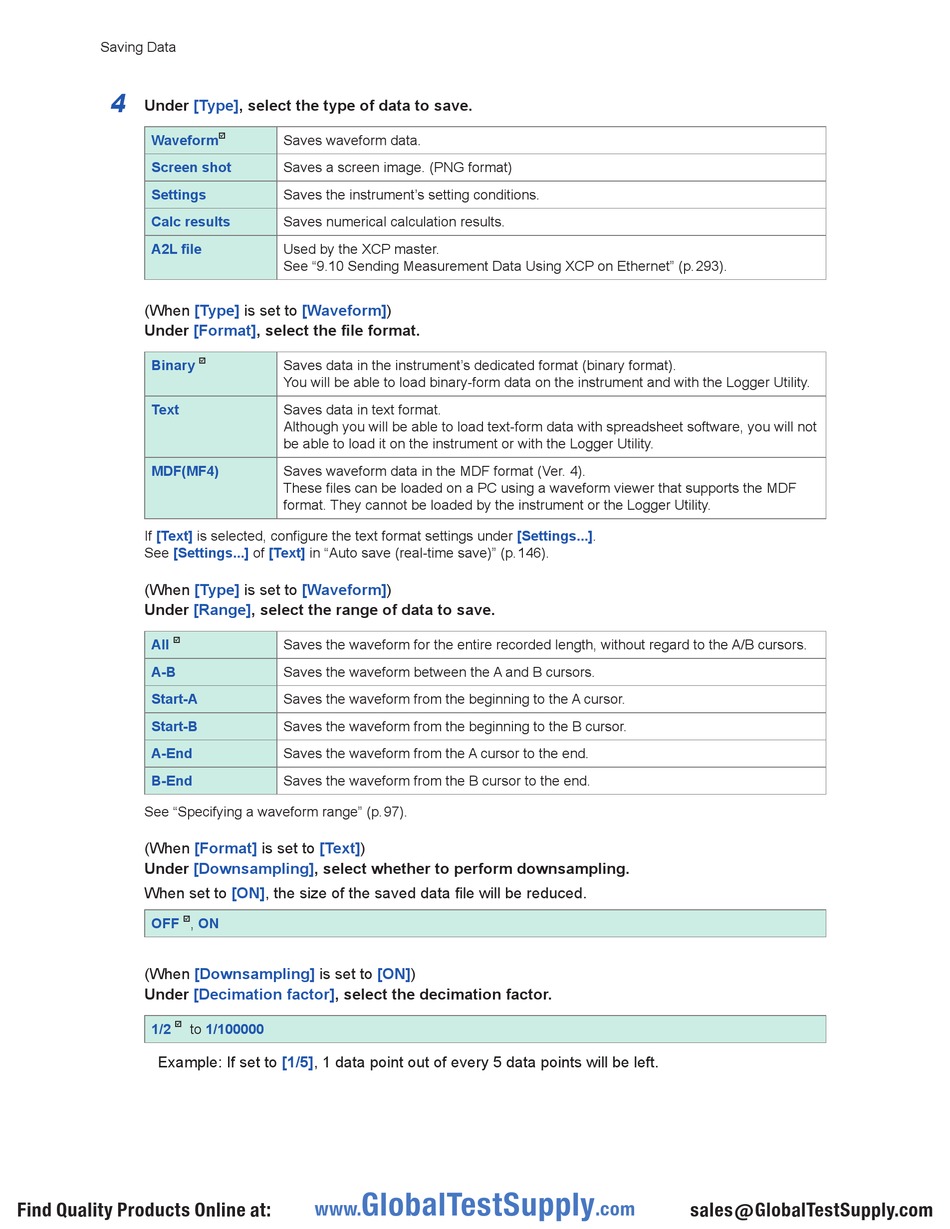

Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 155

Saving Data
4
Under [Type], select the type of data to save.
Waveform
Screen shot
Settings
Calc results
A2L file
(When [Type]
Under [Format], select the file format.
Binary
Text
MDF(MF4)
If [Text] is selected, configure the text format settings under [Settings...].
See [Settings...]
(When [Type]
Under [Range], select the range of data to save.
All

A-B
Start-A
Start-B
A-End
B-End
See "Specifying a waveform range" (p. 9 7).
(When [Format]
Under [Downsampling], select whether to perform downsampling.
When set to [ON], the size of the saved data file will be reduced.
OFF  ,
(When [Downsampling]
Under [Decimation
1/2 to

Example: If set to [1/5], 1 data point out of every 5 data points will be left.
Find Quality Products Online at:
Saves waveform data.

Saves a screen image. (PNG format)
Saves the instrument's setting conditions.
Saves numerical calculation results.
Used by the XCP master.
See "9.10 Sending Measurement Data Using XCP on Ethernet" (p. 2 93).
is set to [Waveform])
 Saves data in the instrument's dedicated format (binary format).
You will be able to load binary-form data on the instrument and with the Logger Utility.
Saves data in text format.
Although you will be able to load text-form data with spreadsheet software, you will not
be able to load it on the instrument or with the Logger Utility.
Saves waveform data in the MDF format (Ver. 4).
These files can be loaded on a PC using a waveform viewer that supports the MDF
format. They cannot be loaded by the instrument or the Logger Utility.
of [Text] in "Auto save (real-time save)" (p. 1 46).
is set to [Waveform])
Saves the waveform for the entire recorded length, without regard to the A/B cursors.
Saves the waveform between the A and B cursors.
Saves the waveform from the beginning to the A cursor.
Saves the waveform from the beginning to the B cursor.
Saves the waveform from the A cursor to the end.
Saves the waveform from the B cursor to the end.
is set to [Text])
ON
is set to [ON])
factor], select the decimation factor.
1/100000
