Application Measurement
>
7

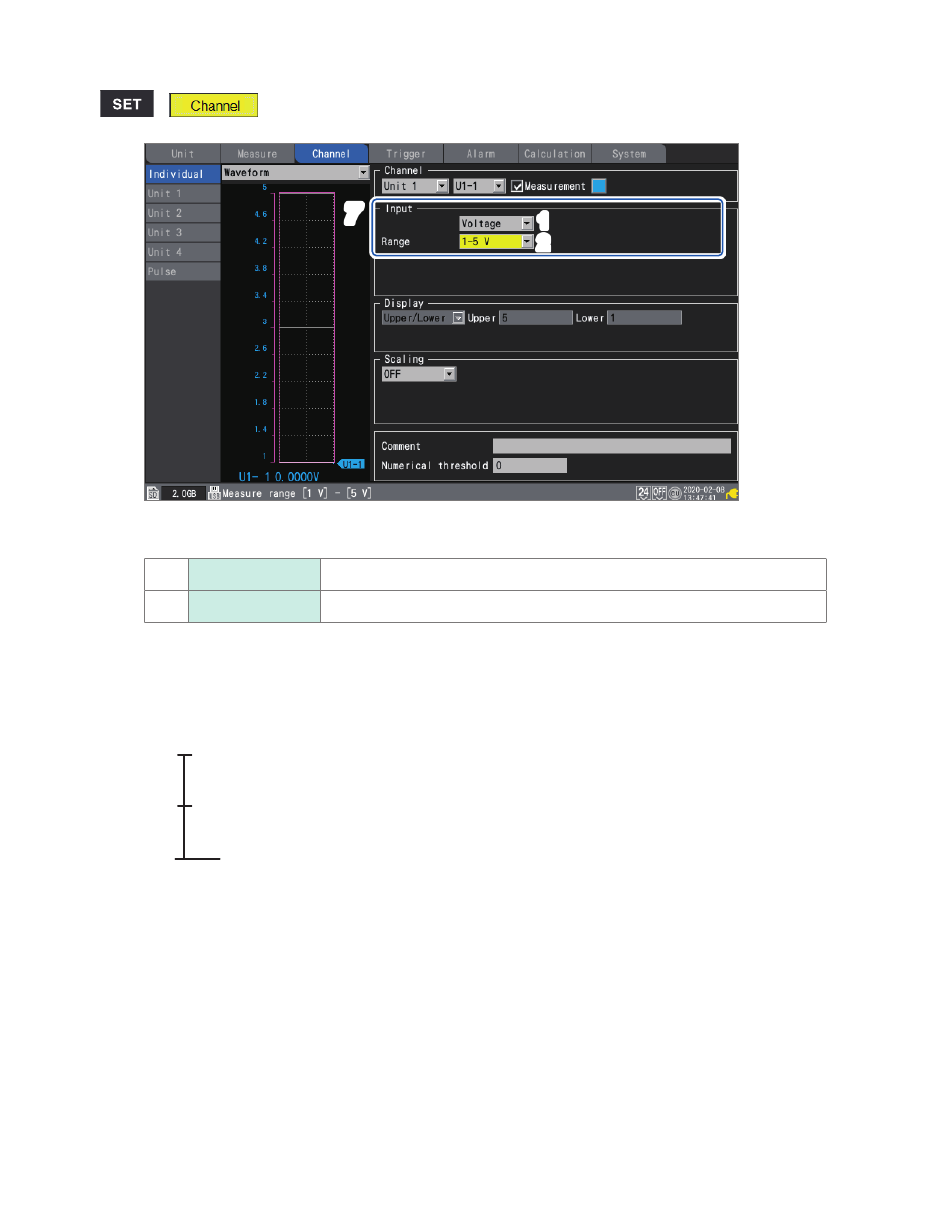

Configure the settings as follows in the
1 1
Input type
2 2
Range
Since a 250
will be recorded as 5 V.
The 1-5 V range is a range in which the 10 V range's display range lower and upper limits are set to 1 V and 5 V,
respectively.
If you wish to change the upper and lower limit values, use 10 V range.
5 V
1 V
8
Press the
Data will be recorded at a 5 s interval for one hour.
In addition, the average value numerical calculation will be performed every minute and the results
saved to the SD Memory Card.
Recording will stop 1 h after it starts.
If you wish to end recording sooner, press the
