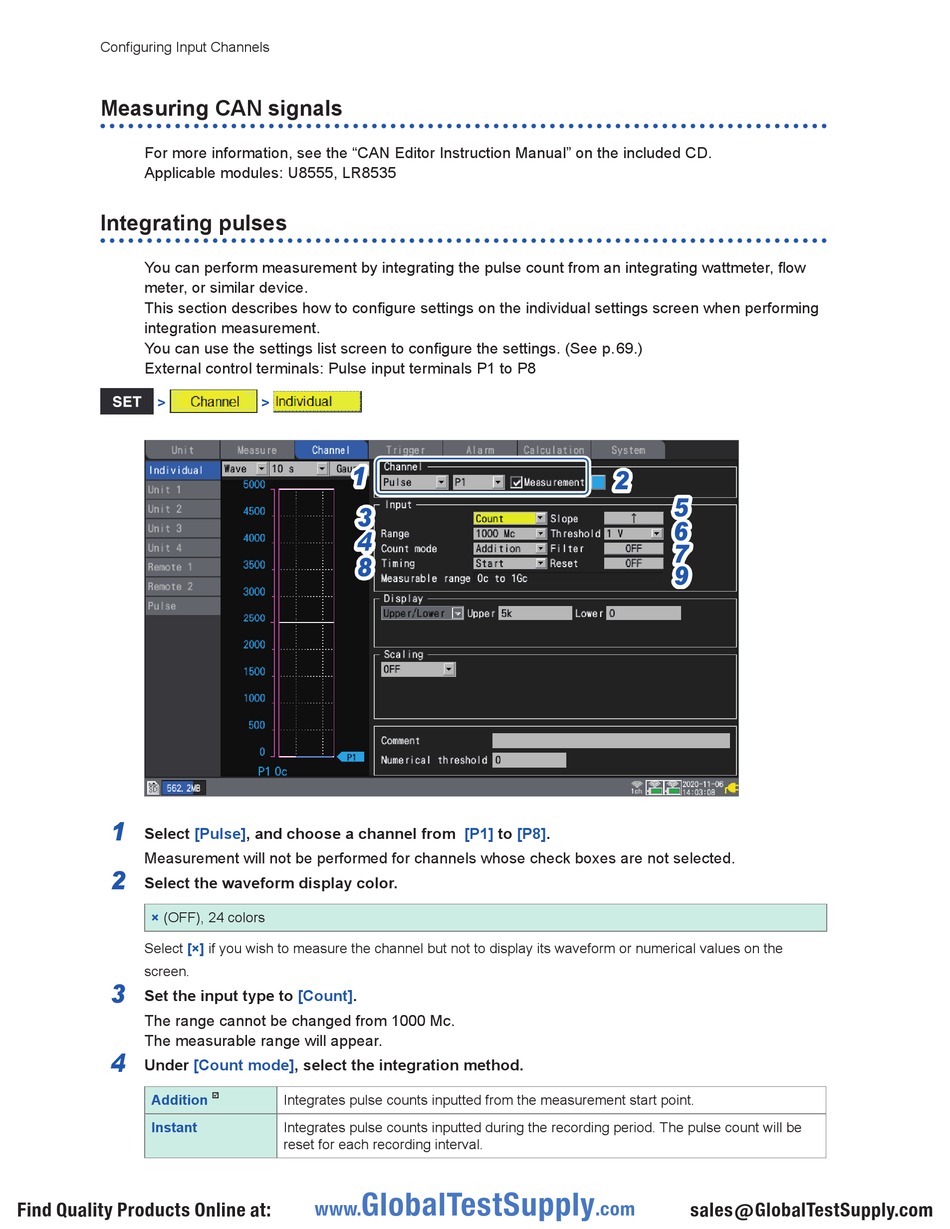

Measuring Can Signals; Integrating Pulses - Hioki MEMORY HiLOGGER LR8450 Instruction Manual

Configuring Input Channels

Measuring CAN signals

For more information, see the "CAN Editor Instruction Manual" on the included CD.
Applicable modules: U8555, LR8535

Integrating pulses

You can perform measurement by integrating the pulse count from an integrating wattmeter, flow
meter, or similar device.
This section describes how to configure settings on the individual settings screen when performing
integration measurement.
You can use the settings list screen to configure the settings. (See p. 6 9.)
External control terminals: Pulse input terminals P1 to P8
>
1
Select [Pulse], and choose a channel from
Measurement will not be performed for channels whose check boxes are not selected.
2
Select the waveform display color.
× (OFF), 24 colors
Select [×]
screen.
3
Set the input type to [Count].
The range cannot be changed from 1000 Mc.
The measurable range will appear.
4
Under [Count
Addition
Instant
Find Quality Products Online at:
>
1 1
3 3
4 4
8 8
if you wish to measure the channel but not to display its waveform or numerical values on the
mode], select the integration method.
Integrates pulse counts inputted from the measurement start point.

Integrates pulse counts inputted during the recording period. The pulse count will be
reset for each recording interval.
GlobalTestSupply
www.
2 2
[P1] to [P8].
.com
5 5
6 6
7 7
9 9
