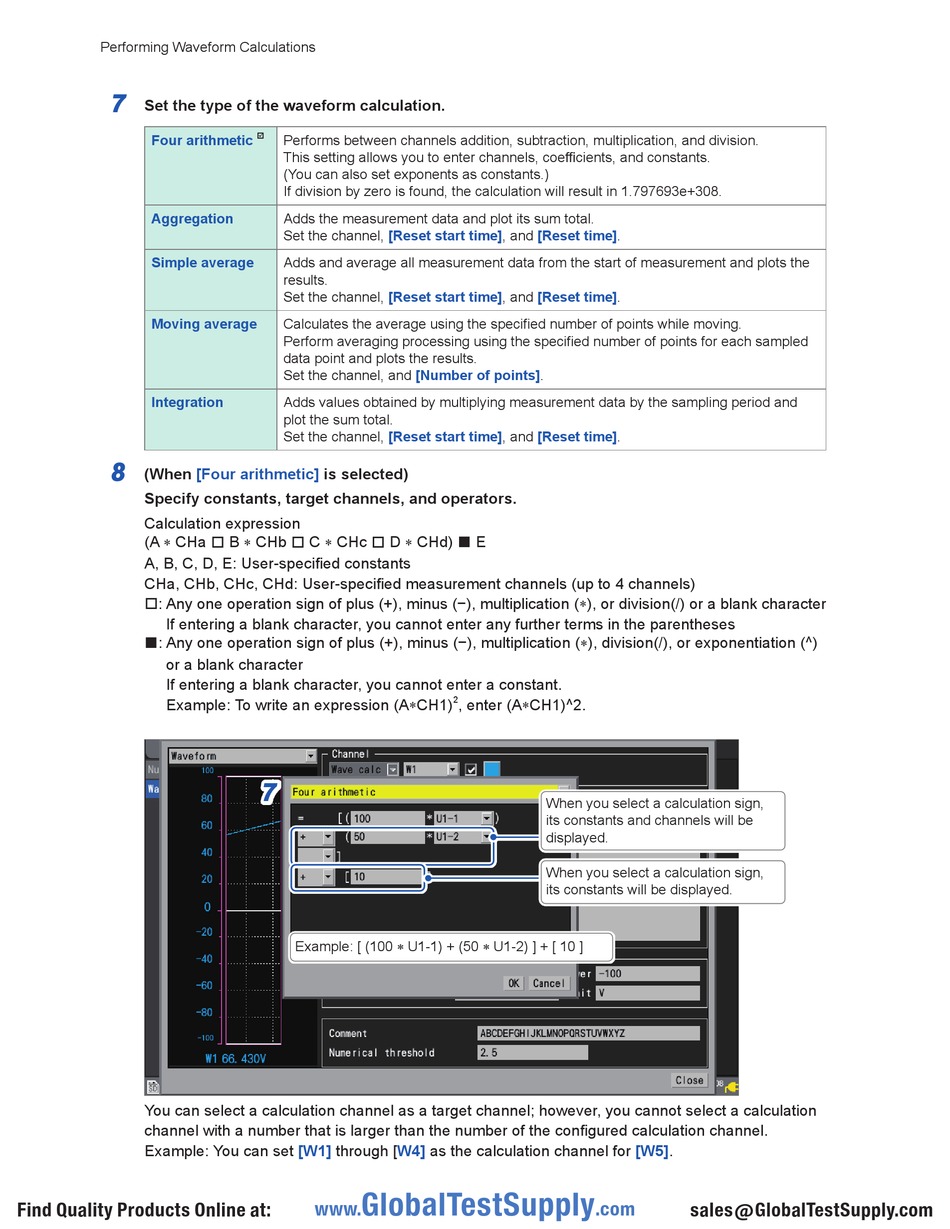

Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 209

Performing Waveform Calculations
7
Set the type of the waveform calculation.
Four arithmetic
Aggregation
Simple average
Moving average
Integration
8
(When [Four arithmetic]
Specify constants, target channels, and operators.
Calculation expression
(A ∗ CHa  B ∗ CHb  C ∗ CHc  D ∗ CHd)
A, B, C, D, E: User-specified constants
CHa, CHb, CHc, CHd: User-specified measurement channels (up to 4 channels)
: Any one operation sign of plus (+), minus (−), multiplication (∗), or division(/) or a blank character
If entering a blank character, you cannot enter any further terms in the parentheses
: Any one operation sign of plus (+), minus (−), multiplication (∗), division(/), or exponentiation (^)

or a blank character
If entering a blank character, you cannot enter a constant.
Example: To write an expression (A∗CH1)
You can select a calculation channel as a target channel; however, you cannot select a calculation
channel with a number that is larger than the number of the configured calculation channel.
Example: You can set
Find Quality Products Online at:
Performs between channels addition, subtraction, multiplication, and division.

This setting allows you to enter channels, coefficients, and constants.
(You can also set exponents as constants.)
If division by zero is found, the calculation will result in 1.797693e+308.
Adds the measurement data and plot its sum total.
Set the channel, [Reset start
Adds and average all measurement data from the start of measurement and plots the
results.
Set the channel, [Reset start
Calculates the average using the specified number of points while moving.
Perform averaging processing using the specified number of points for each sampled
data point and plots the results.
Set the channel, and [Number of
Adds values obtained by multiplying measurement data by the sampling period and
plot the sum total.
Set the channel, [Reset start
is selected)
7 7
Example: [ (100 ∗ U1-1) + (50 ∗ U1-2) ] + [ 10 ]
[W1] through [W4] as the calculation channel for [W5].
GlobalTestSupply
www.
time], and [Reset time].
time], and [Reset time].
points].
time], and [Reset time].
E

2
, enter (A∗CH1)^2.
When you select a calculation sign,
its constants and channels will be
displayed.
When you select a calculation sign,
its constants will be displayed.
