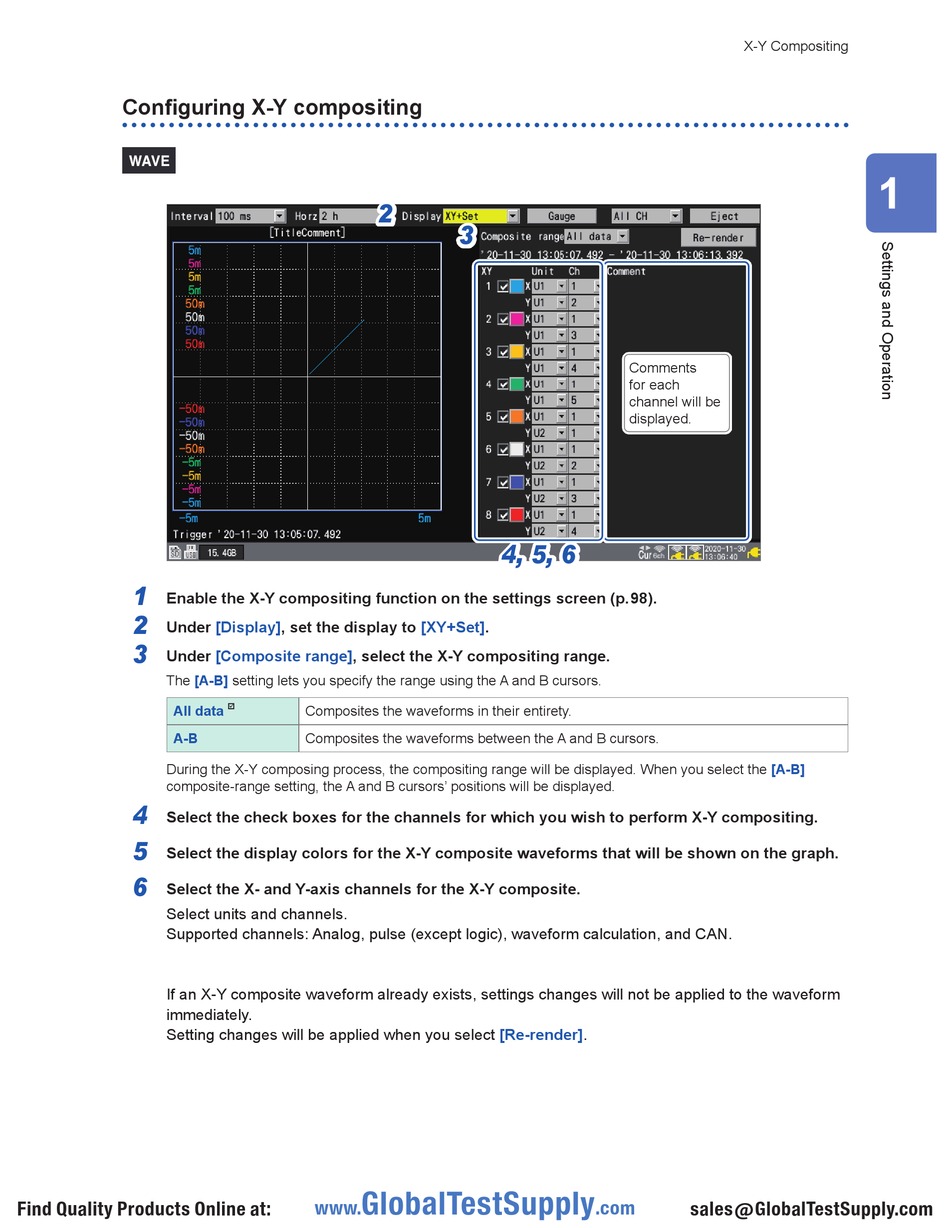

Configuring X-Y compositing

1
Enable the X-Y compositing function on the settings screen (p. 9 8).
2
Under [Display], set the display to [XY+Set].
3
Under
The [A-B]
All data
A-B
During the X-Y composing process, the compositing range will be displayed. When you select the
composite-range setting, the A and B cursors' positions will be displayed.
4
Select the check boxes for the channels for which you wish to perform X-Y compositing.
5
Select the display colors for the X-Y composite waveforms that will be shown on the graph.
6
Select the X- and Y-axis channels for the X-Y composite.
Select units and channels.
Supported channels: Analog, pulse (except logic), waveform calculation, and CAN.
If an X-Y composite waveform already exists, settings changes will not be applied to the waveform
immediately.
Setting changes will be applied when you select [Re-render].
