Jump function (changing the display position)

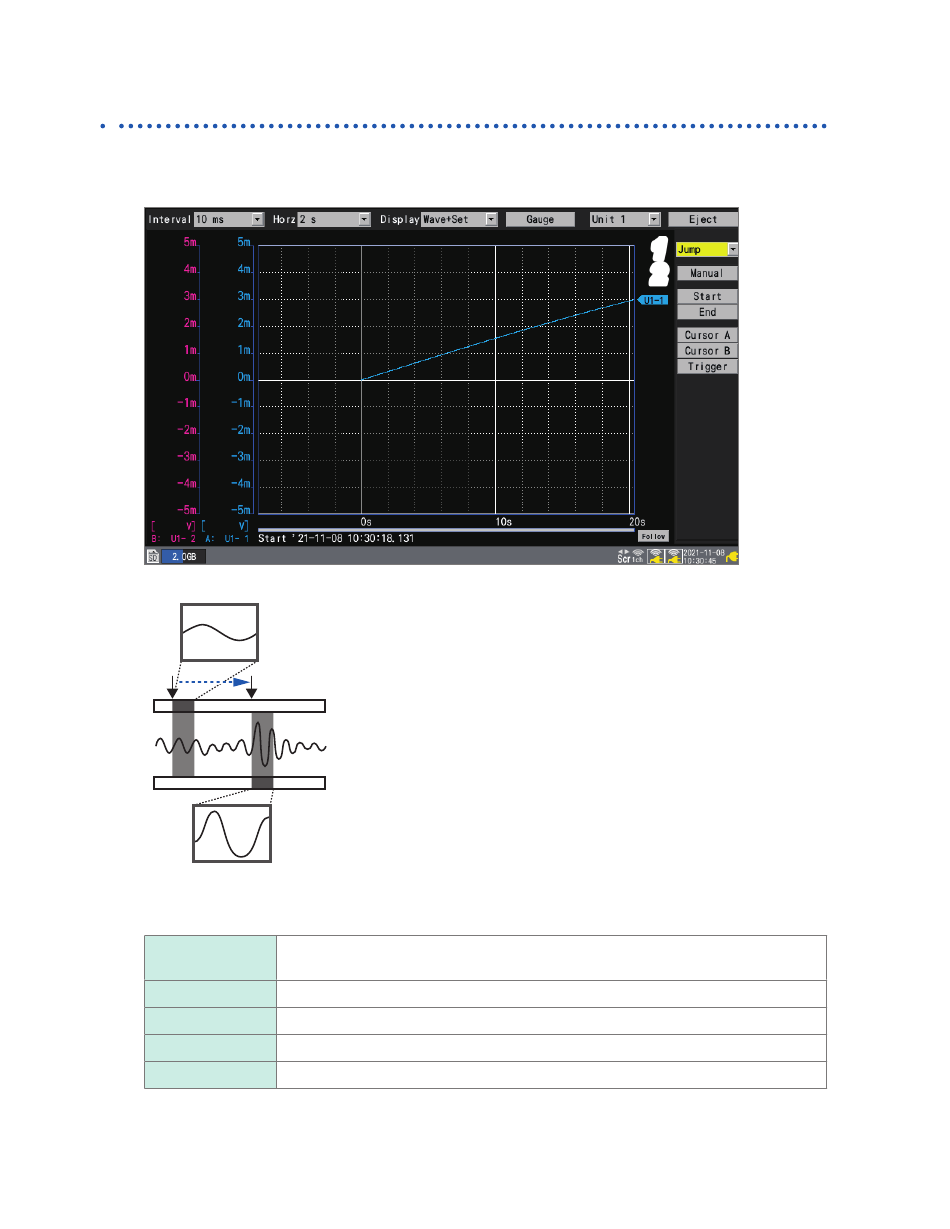

This section describes how to use the scroll bar to change the waveform's display position (jump
function).
4 4
You can also change the display position directly without selecting [Manual].
Start
End
Cursor A
Cursor B
Trigger
Find Quality Products Online at:
1
Under [Settings], select [Jump].
The jump-related settings will be displayed.
2
Press the
3 3
An arrow (↓) will indicate the current display position on the
scroll bar.
3
Move the arrow to the position you wish to display using
the Left Arrow
4
Press the
The display will move to the specified location.
Moves the display to the beginning of the waveform (the measurement start point or
the start of data in the internal buffer memory).
Moves the display to the end of the waveform (the measurement stop point).
Moves the display to the position of cursor A.
Moves the display to the position of cursor B.
Moves the display to the position of start trigger.
