Configuration Navigator (Quick Set)
Strain gage connection guide
This section describes how to display the connection diagram for strain gages and the DIP switch
configurations.
1
1
3 3
3
Select the connection method with the
An explanation for the selected connection method will be displayed.
4
Press the
The guide screen will close.
Find Quality Products Online at:
ENTER
key while
[Quit]
is selected.
GlobalTestSupply
www.
1
Select
[Strain gauge connection
2
Press the
ENTER
key.

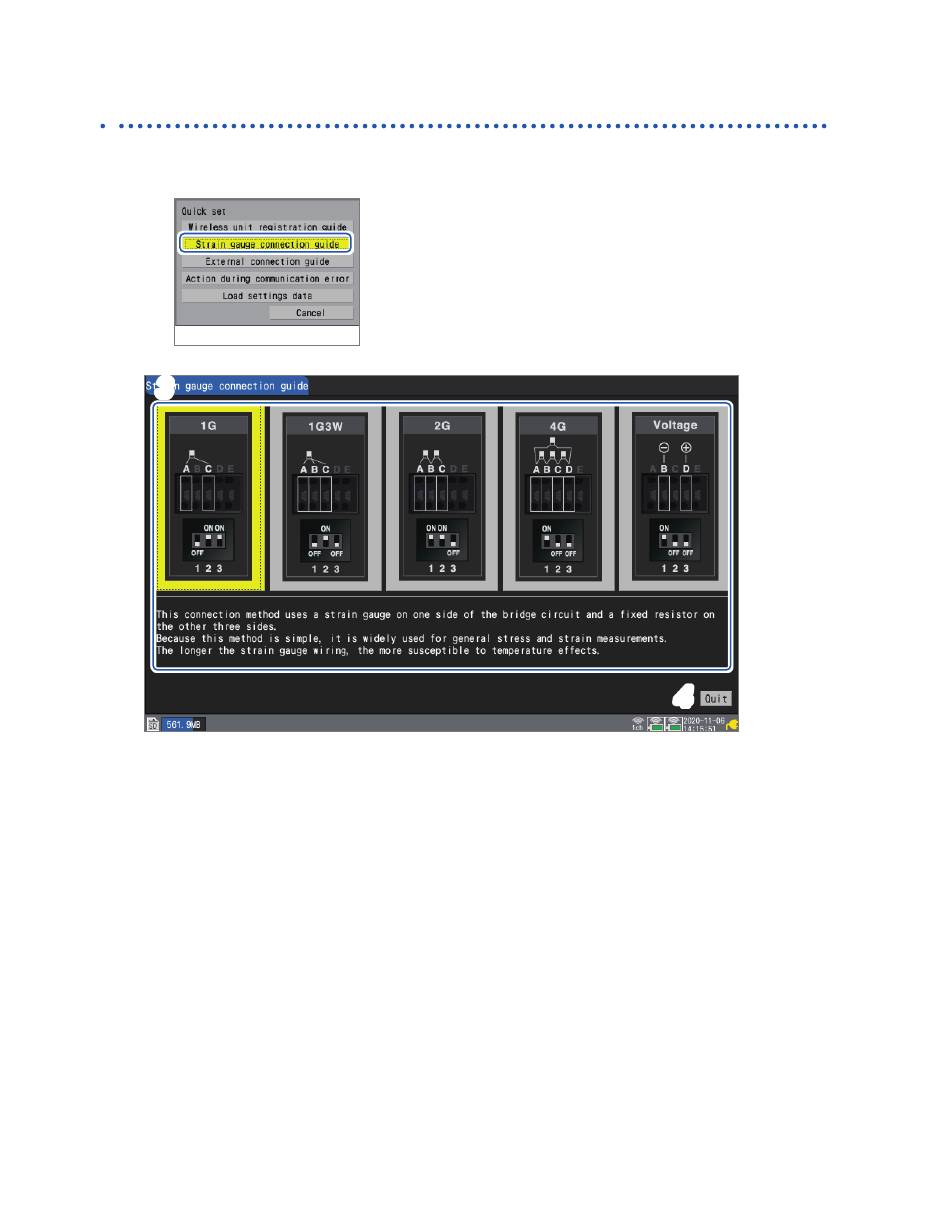

A strain gage connection guide will be displayed.
Right Arrow
and
Left Arrow
.com
guide].
