Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 132

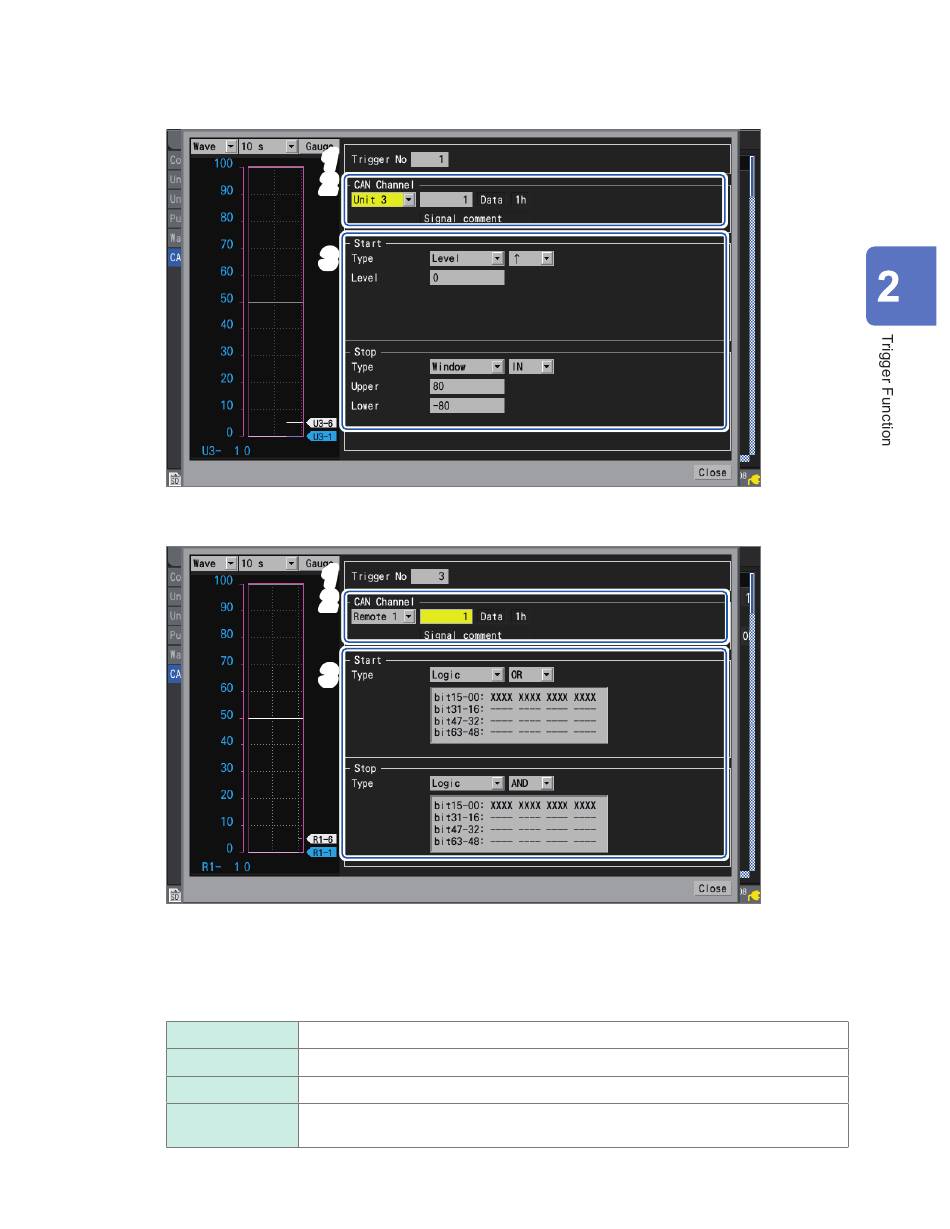

CAN trigger individual settings window (Level, Window)
CAN trigger individual settings window (Logic)
1
Under
2
Under
The channel type, ID, and comment for the specified CAN channel will be displayed.
3
Under [Type], select the trigger type.
OFF
Level
Window
Logic
