Configuring Input Channels

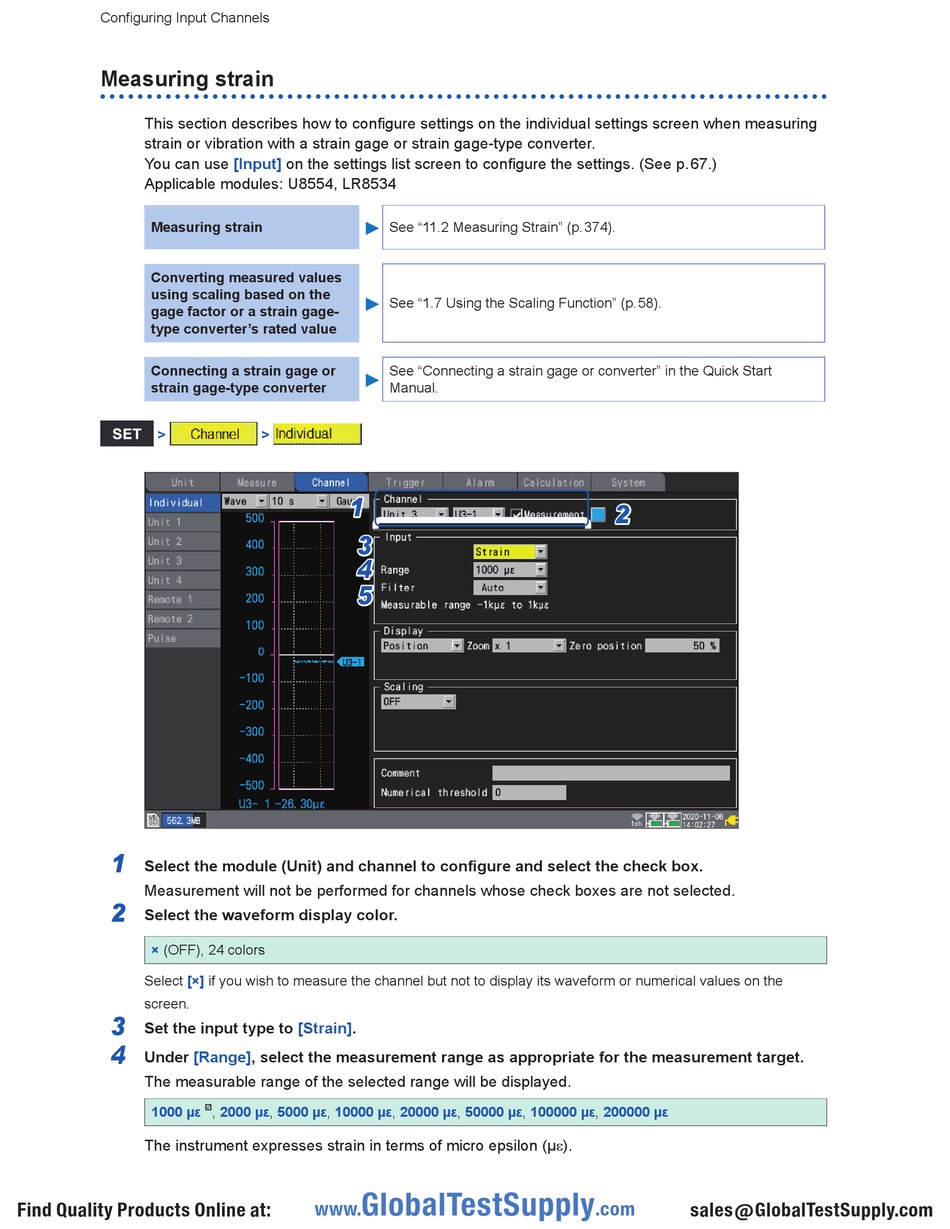

Measuring strain

This section describes how to configure settings on the individual settings screen when measuring
strain or vibration with a strain gage or strain gage-type converter.
You can use
Applicable modules: U8554, LR8534
Measuring strain
Converting measured values
using scaling based on the
gage factor or a strain gage-
type converter's rated value
Connecting a strain gage or
strain gage-type converter
>
1
Select the module (Unit) and channel to configure and select the check box.
Measurement will not be performed for channels whose check boxes are not selected.
2
Select the waveform display color.
× (OFF), 24 colors
Select [×]
screen.
3
Set the input type to [Strain].
4
Under [Range], select the measurement range as appropriate for the measurement target.
The measurable range of the selected range will be displayed.
1000 µε
The instrument expresses strain in terms of micro epsilon (με).
Find Quality Products Online at:
[Input]
on the settings list screen to configure the settings. (See p. 6 7.)
>
1 1
3 3
4 4
5 5
if you wish to measure the channel but not to display its waveform or numerical values on the
2000 µε, 5000 µε, 10000 µε,
 ,
GlobalTestSupply
www.
See "11.2 Measuring Strain" (p. 3 74).
See "1.7 Using the Scaling Function" (p. 5 8).
See "Connecting a strain gage or converter" in the Quick Start
Manual.
20000 µε, 50000 µε, 100000
2 2
µε, 200000 µε
