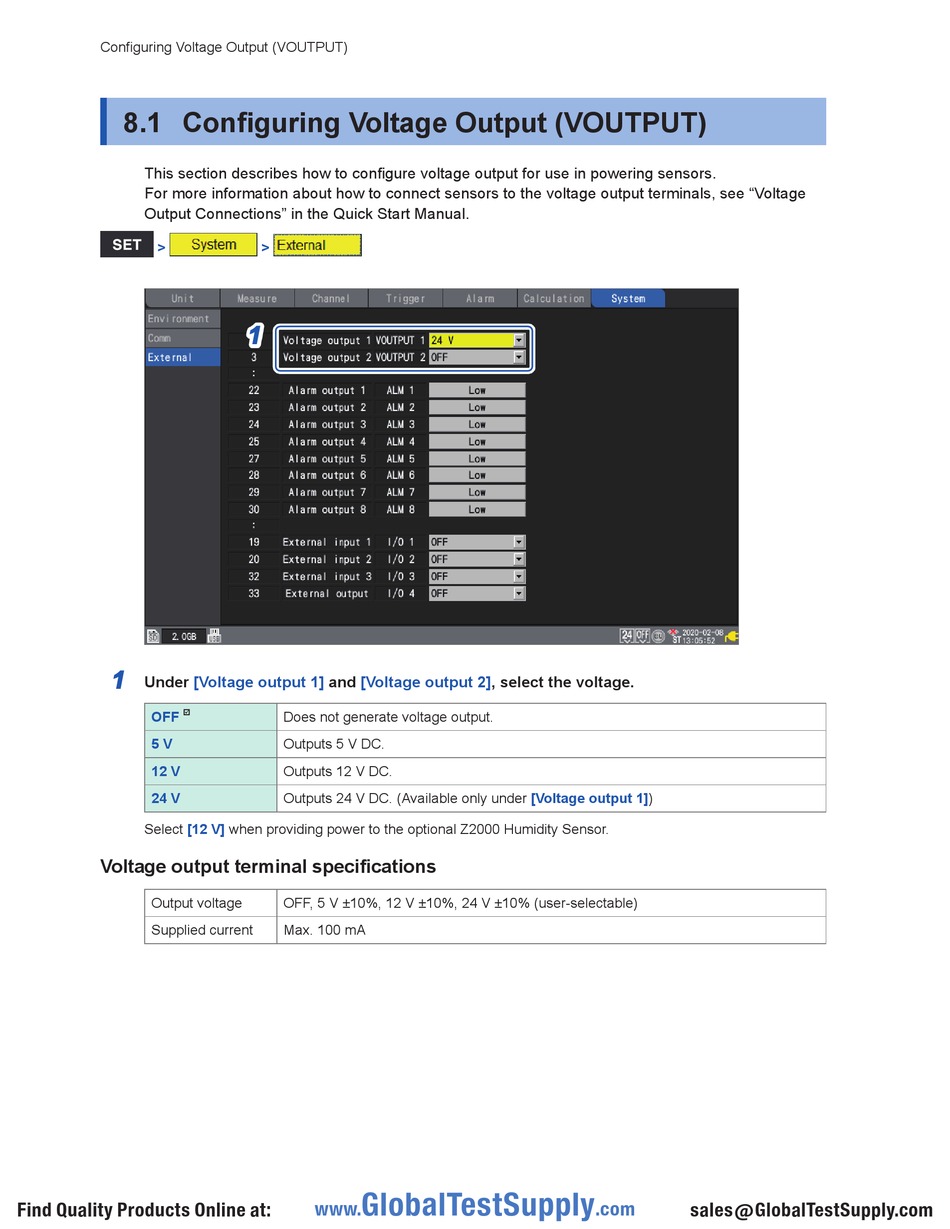

Configuring Voltage Output (VOUTPUT)

8.1 Configuring Voltage Output (VOUTPUT)

This section describes how to configure voltage output for use in powering sensors.
For more information about how to connect sensors to the voltage output terminals, see "Voltage
Output Connections" in the Quick Start Manual.
>
1
Under [Voltage output 1]
OFF

5 V
12 V
24 V
Select [12 V]
Voltage output terminal specifications
Output voltage
Supplied current
Find Quality Products Online at:
>
1 1
and [Voltage output
Does not generate voltage output.
Outputs 5 V DC.
Outputs 12 V DC.
Outputs 24 V DC. (Available only under
when providing power to the optional Z2000 Humidity Sensor.
OFF, 5 V ±10%, 12 V ±10%, 24 V ±10% (user-selectable)
Max. 100 mA
