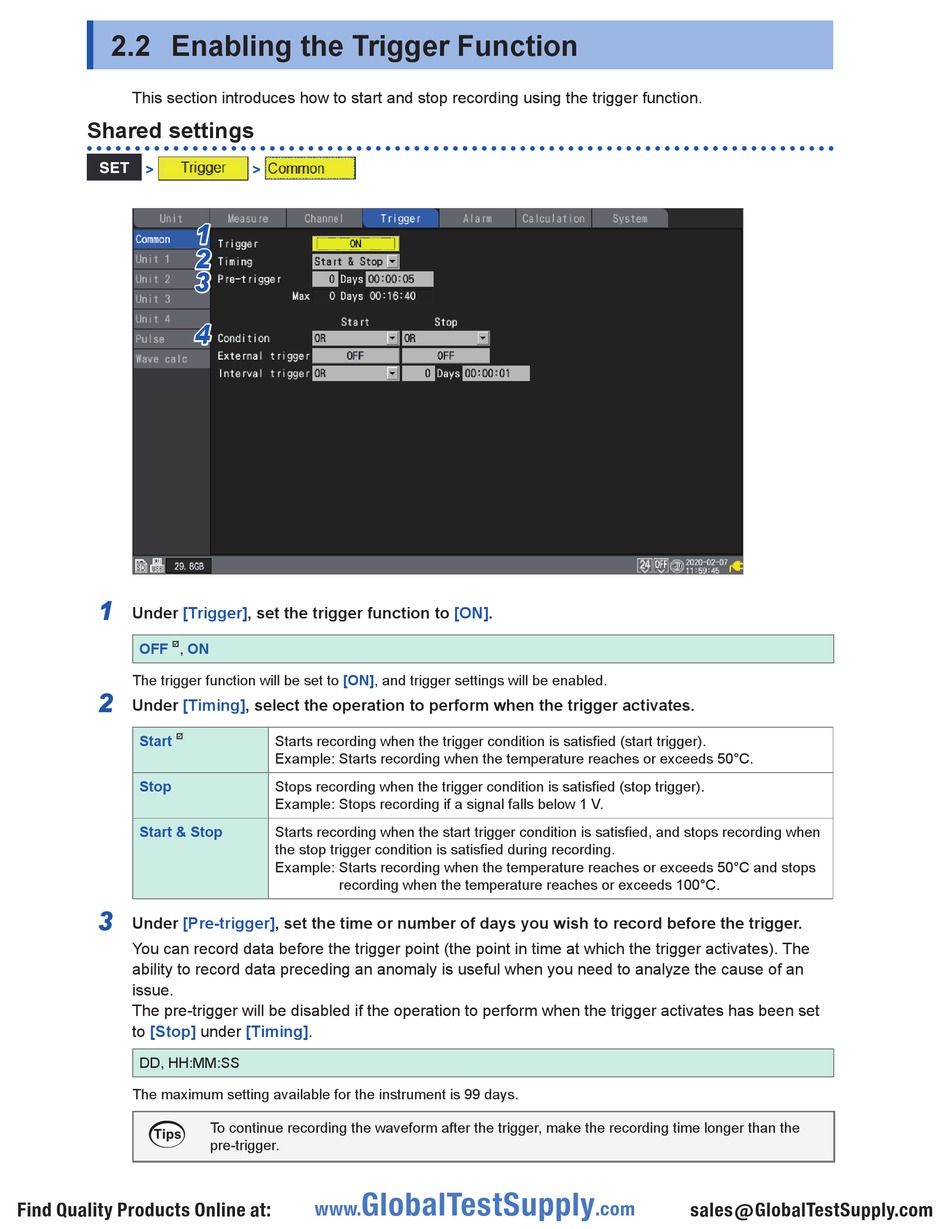

2.2 Enabling the Trigger Function

This section introduces how to start and stop recording using the trigger function.

Shared settings

>
1 1
2 2
3 3
4 4
1
Under [Trigger], set the trigger function to [ON].
OFF  , ON
The trigger function will be set to [ON], and trigger settings will be enabled.
2
Under [Timing], select the operation to perform when the trigger activates.
Start

Stop
Start & Stop
3
Under [Pre-trigger], set the time or number of days you wish to record before the trigger.
You can record data before the trigger point (the point in time at which the trigger activates). The
ability to record data preceding an anomaly is useful when you need to analyze the cause of an
issue.
The pre-trigger will be disabled if the operation to perform when the trigger activates has been set
to [Stop]
DD, HH:MM:SS
The maximum setting available for the instrument is 99 days.
Find Quality Products Online at:
116
>
Starts recording when the trigger condition is satisfied (start trigger).
Example: Starts recording when the temperature reaches or exceeds 50°C.
Stops recording when the trigger condition is satisfied (stop trigger).
Example: Stops recording if a signal falls below 1 V.
Starts recording when the start trigger condition is satisfied, and stops recording when
the stop trigger condition is satisfied during recording.
Example: Starts recording when the temperature reaches or exceeds 50°C and stops
recording when the temperature reaches or exceeds 100°C.
under [Timing].
To continue recording the waveform after the trigger, make the recording time longer than the
pre-trigger.
