Rear X Belt - GRAPHTEC FCX2000 Service Manual

8.2.4

Rear X Belt

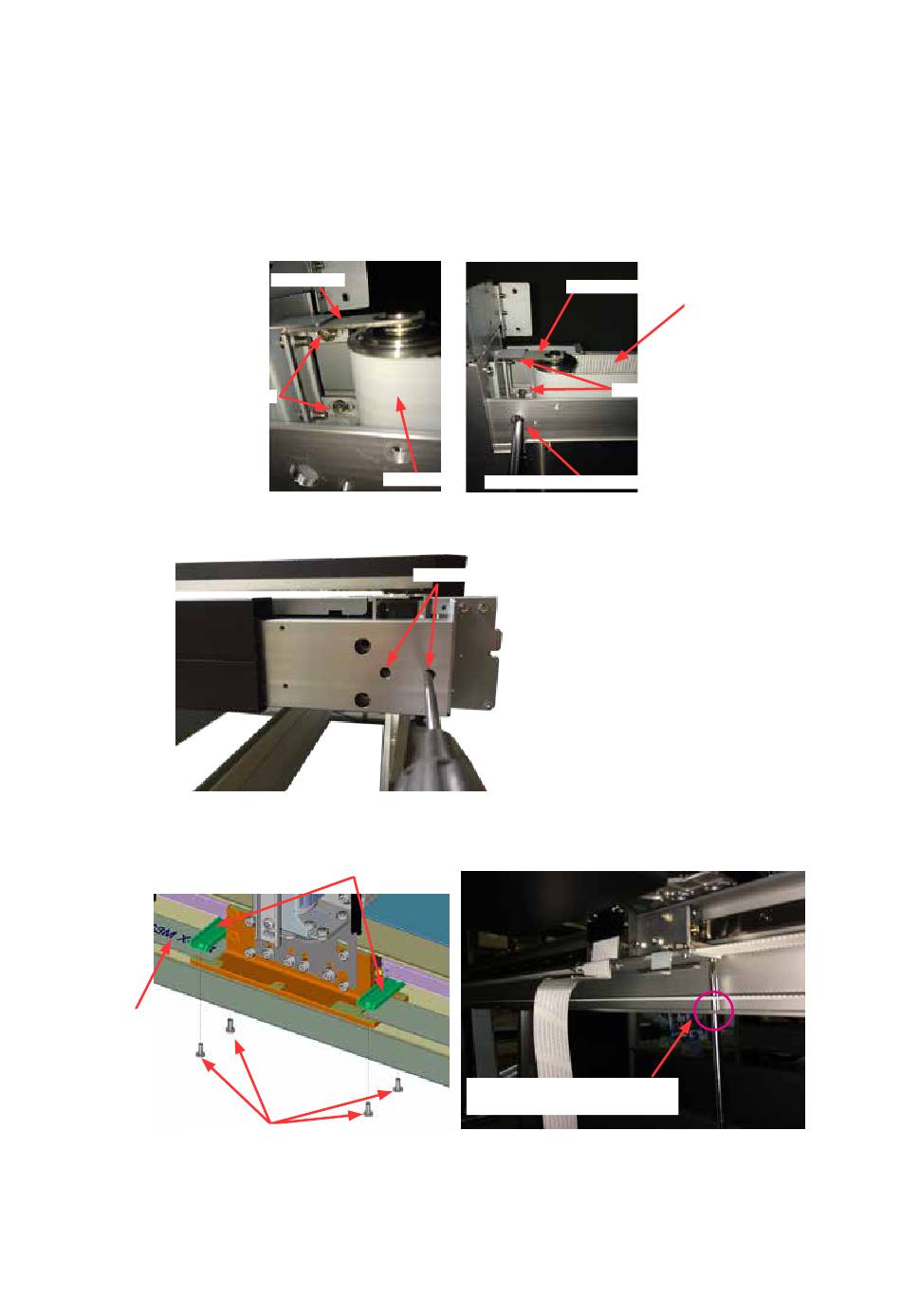

How to detach the Rear X Belt
(1) Detach the right rear corner cover (Refer to the section 8.1.2.).
(2) Detach the left rear corner cover (Refer to the section 8.1.4.).
(3) Detach the rear top cover (Refer to the section 8.1.11.).
(4) Detach the rear bottom cover (Refer to the section 8.1.12.).
(5) Loosen the two M4L6 binding head screw fixing the idler bracket.
M4L6 binding head screw
(6) Loosen the two belt tension adjustment screws to loosen the rear X belt tension.
(7) Remove the four M3L6 binding head screws holding the Rear X belt stoppers, and then detach the rear
X belt from the rear X slider.
Rear X belt
M3L8 binding head screw
FCX2000-UM-251-9370
Idler bracket
Rear X belt
Use these access holes to loosen the X belt tension.
Belt stopper
8 DISASSEMBLY AND ASSEMBLY
Idler bracket
M4L6 binding head screw
Use this access hole to loosen the screw of front.
Use this hole to remove the rear of
M3L8 binding screws.
8-21
Rear X belt
